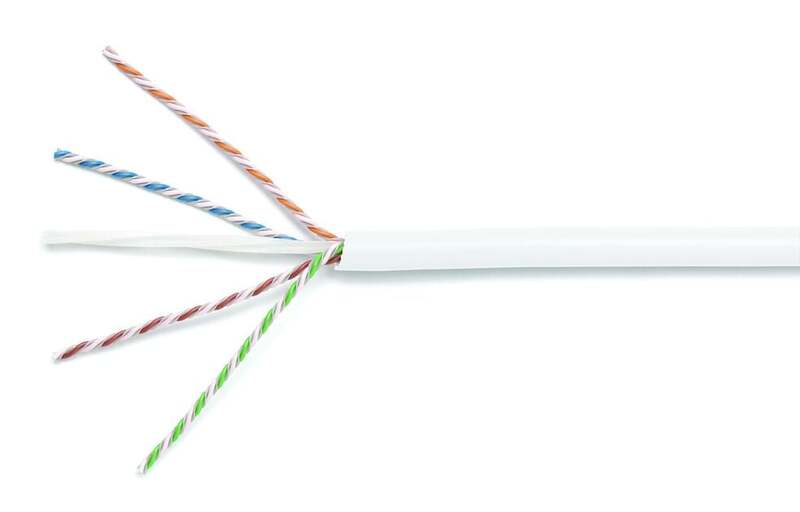

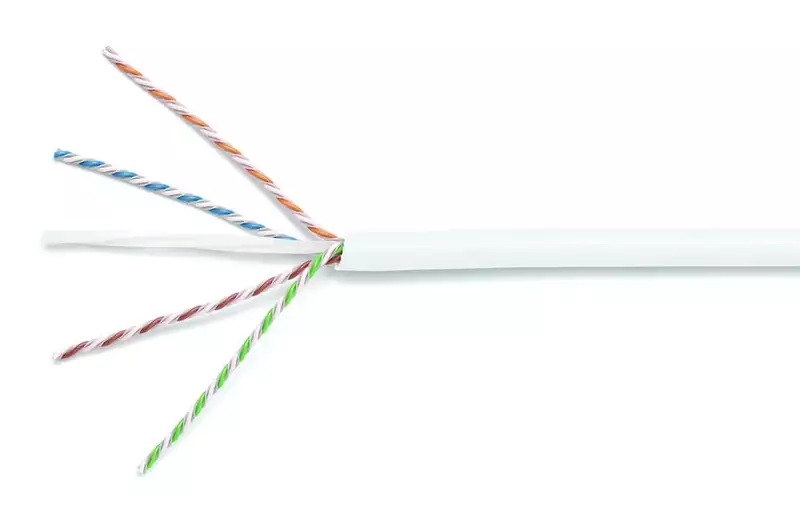

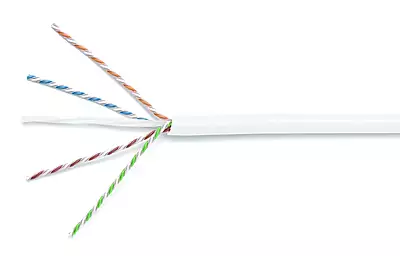

CommScope gigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable
Parameter | Value |
|---|---|
Product Number | 3091B |
ANSI/TIA Category | 6A |
Cable Component Type | Horizontal |
Cable Type | U/UTP (Unshielded Twisted Pair) |
Conductor Type, singles | Solid |
Conductors, quantity | 8 |
Pairs, quantity | 4 |
Jacket Color | White |
Separator Type | Isolator |
Transmission Standards | ANSI/TIA-568.2-DISO/IEC 11801 Class EA |
DC Resistance, maximum | 7.61 ohms/100 m2.32 ohms/100 ft |
DC Resistance Unbalance, maximum | 4 % |
Delay Skew, maximum | 45 ns |
Dielectric Strength, minimum | 2500 Vdc |
Mutual Capacitance @ 1 kHz | 6.0 nF/100 m |
Nominal Velocity of Propagation (NVP) | 67 % |
Operating Frequency, maximum | 550 MHz |
Operating Voltage, maximum | 80 V |
Propagation Delay @ 500 MHz | 536 ns/100 m |
Remote Powering | Complies with IEEE 802.3bt (Type 4); ISO/IEC 14763-2, CENELEC EN 50174-1/2, TIA TSB-184-A |
Segregation Class | C |
Conductor Material | Bare Copper |
Insulation Material | Polyolefin |
Jacket Material | Low Smoke Zero Halogen (LSZH) |
Separator Material | Polyolefin |
Separator 2 Material | Polyolefin |
