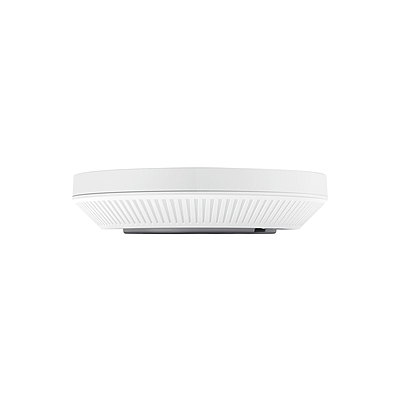

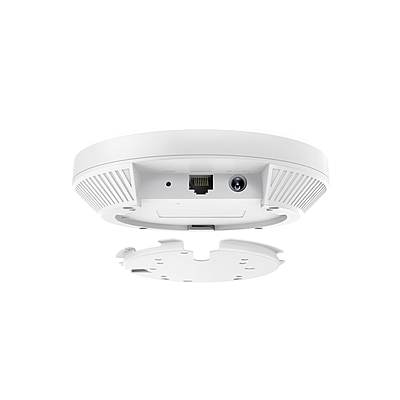

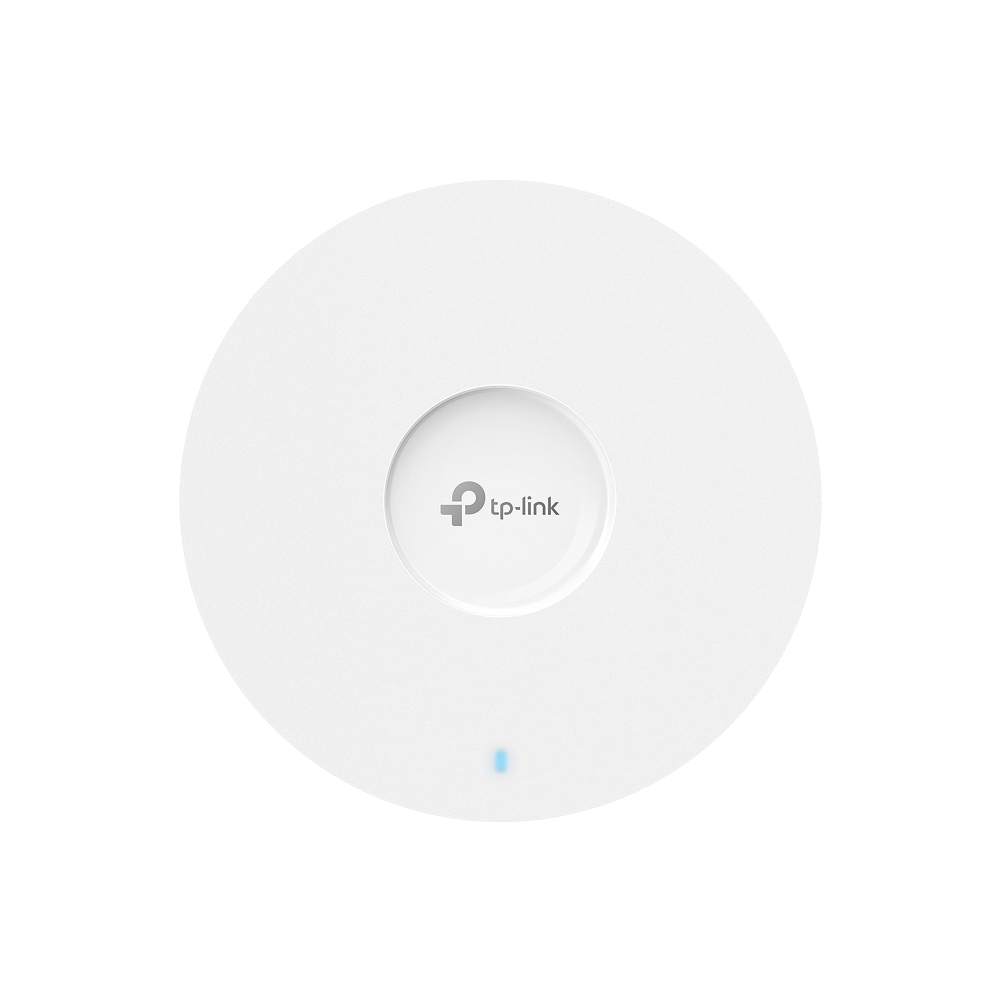

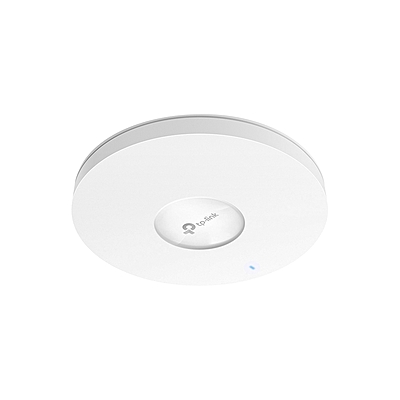

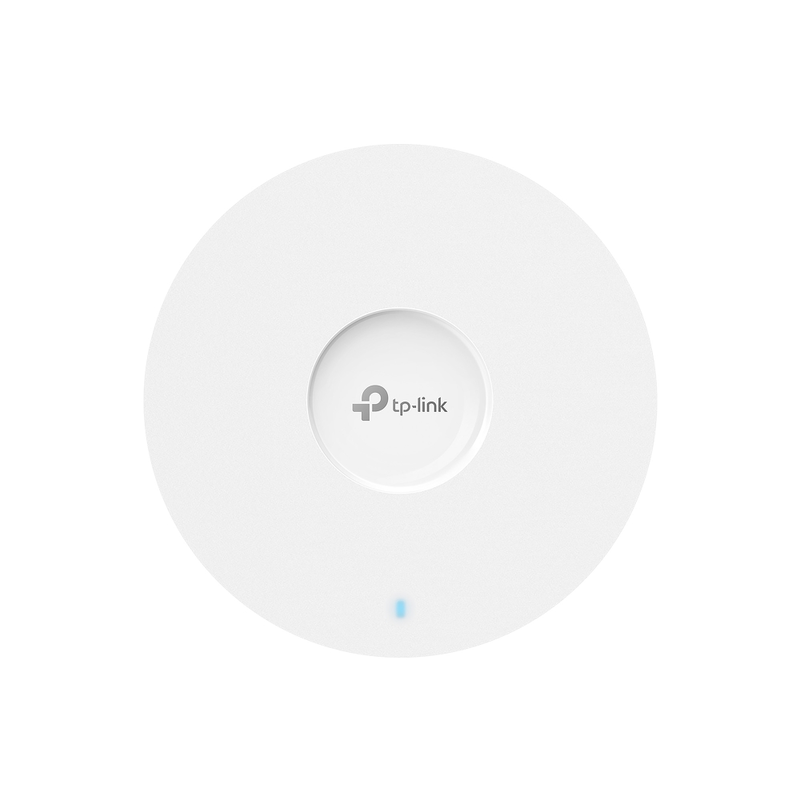

TP-Link Omada Pro AX1800 Ceiling Mount WiFi 6 Access Point-AP9635
Feature | Details |
|---|---|
WiFi 6 Speeds | 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
1GE PoE+ Port | High-speed broadband with PoE+ support |
Anomaly Detection | 24/7 intelligent monitoring and data safety |
High-Density Connectivity | 4× capacity to handle more connected devices |
Mesh & Seamless Roaming | Smooth user experience across access points |
Cloud Management | Easy and centralized control via the cloud |
Category | Main Key Points |
|---|---|
Hardware Features | 1x Gigabit Ethernet Port, Reset Button, 48 V Passive PoE or 802.3at PoE or 12 V / 1.5 A DC, 14.4W (PoE EU) or 13.1W (DC EU) Power Consumption, Wall Mountable |
Antenna | Internal Antennas: 2.4 GHz (4 dBi), 5 GHz (5 dBi) |
Dimensions | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
Wireless Features | IEEE 802.11 a/b/g/n/ac/ax, 5 GHz (1201 Mbps), 2.4 GHz (574 Mbps), 16 SSIDs, Seamless Roaming, Beamforming, MU-MIMO, OFDMA, Load Balance, Airtime Fairness |
Concurrent Clients | 1,000+ clients |
Wireless Security | WPA/WPA2/WPA3, MAC Filtering, Captive Portal Authentication, Rogue AP Detection, 802.1X Support |
Transmission Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz Band 1 & 2), <30 dBm (5 GHz Band 3) |
Management Features | Omada App, SNMP v1/v2c/v3, SSH, Web-based Management, System Log, Zero-Touch Provisioning |
Cloud Access | Yes, requires Omada Pro Cloud-Based Controller or Omada Pro Software Controller |
Centralized Management | Omada Pro Software Controller, Omada Pro Cloud-Based Controller |
L3 Management | Yes |
Power Supply | 48 V Passive PoE or 802.3at PoE or 12 V / 1.5 A DC |
General
- Antennas Quantity2
- Ethernet LAN (RJ-45) ports1
