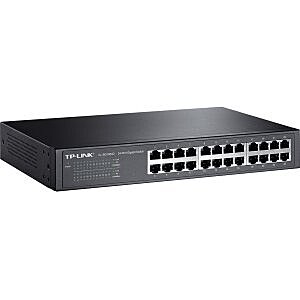

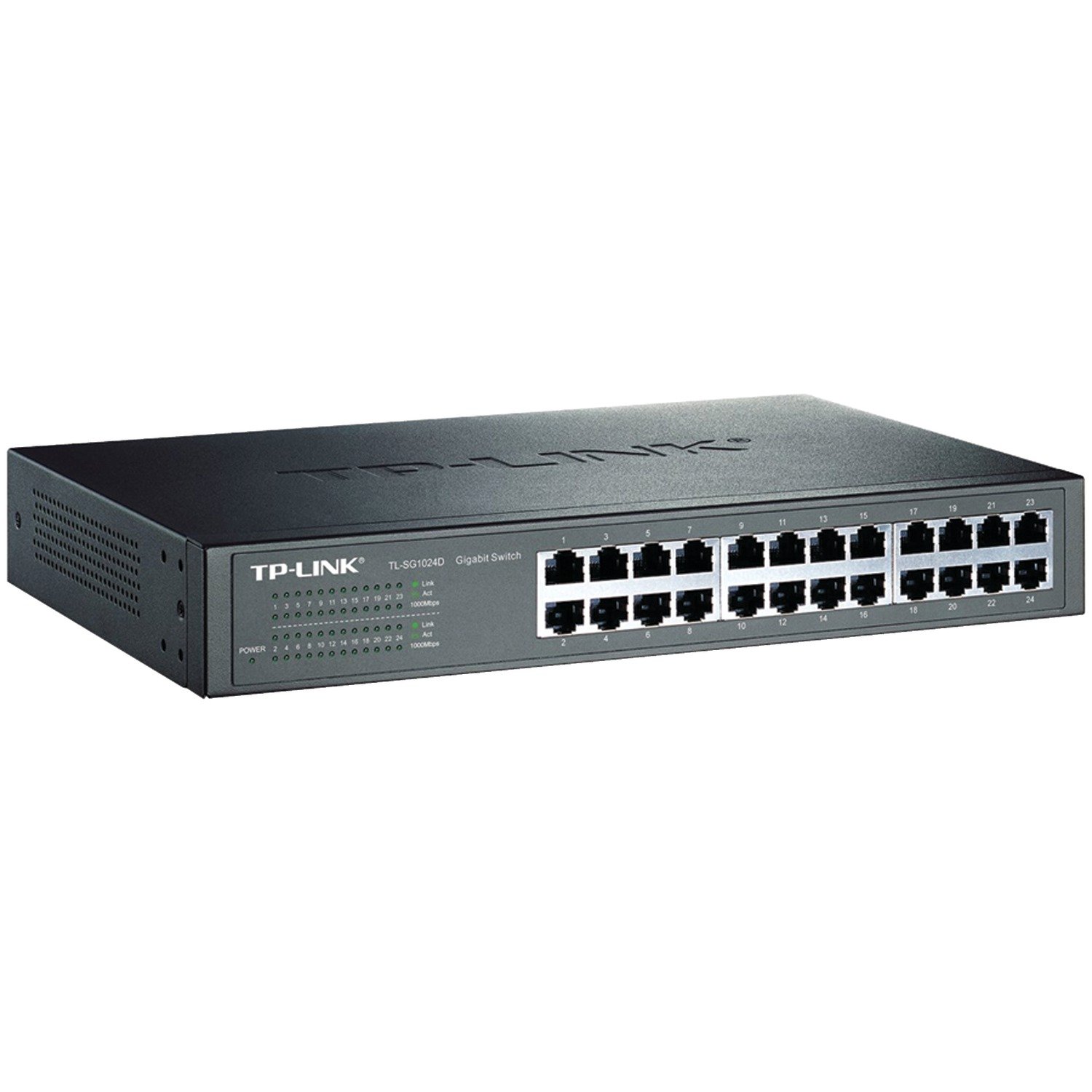

TP-Link 24-Port Gigabit Desktop/Rackmount Switch-TL-SG1024D

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface

24 10/100/1000Mbps RJ45 Ports (Auto Negotiation / Auto MDI/MDIX)

Network Media

- 10BASE-T: UTP Cat 3, 4, 5 (max 100m)
- 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above (max 100m)

Fan Quantity

Fanless

Physical Security Lock

No

Power Supply

100–240VAC, 50/60Hz

Dimensions (W x D x H)

11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)

Mounting

Rack Mountable

Max. Power Consumption

13.62W (220V/50Hz)

Max Heat Dissipation

46.44 BTU/h

PERFORMANCE

Switching Capacity

48 Gbps

Packet Forwarding Rate

35.7 Mpps

MAC Address Table

8K

Advanced Features

- Isolation Mode: Ports 1–22
- Loop Prevention: Ports 1–24

Jumbo Frame

10KB

Green Technology

Yes

Transmission Method

Store-and-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Content

- 24-Port Gigabit Desktop/Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
