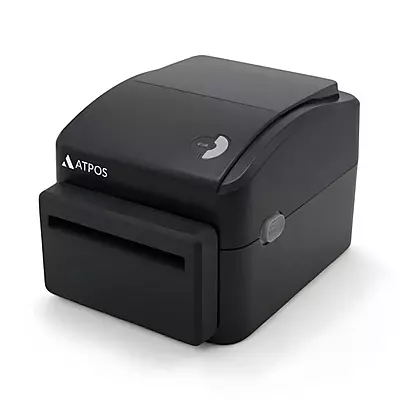

ATPOS AT-490B 4 Inch High-Speed Thermal Receipt / Label Printer with Auto Cutter, USB+LAN+Bluetooth Interface
Feature | Description |
|---|---|
High-Speed Printing | Prints up to 152mm (6 inches) per second for improved efficiency. |

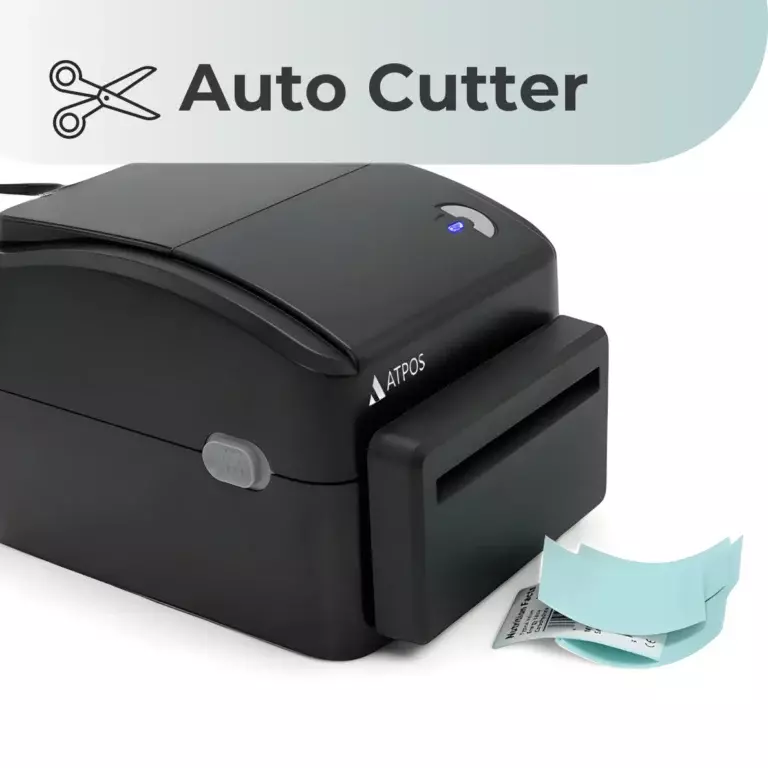

Auto Paper Cutter | Equipped with an automatic cutter for clean and efficient paper cutting. |
Easy to Use | Easy-load system enables quick and simple paper replacement. |
Inbuilt USB + BT + LAN Interface | Standard connectivity options including USB, Bluetooth, and LAN for versatile use. |
Memory | 8MB SDRAM and 8MB Flash memory for reliable performance. |
Rich Emulation Language | Supports ESC/POS and TSPL for receipt and label printing. |
Feature | Details |
|---|---|
Print Method | Direct Thermal |
Resolution | 203 DPI |
Print Speed | 152mm/s (6 inches/sec) |
Cutter | Partial Auto Cutter |
Max. Print Width | 108mm (4.25”) |
Max. Print Length | 1778mm (80”) |
Media Type | Continuous, Gap, Black mark, Fan-fold, Punched hole |
Media Width | 25.4mm~115mm |
Media Thickness | 0.06mm~0.25mm (2.36 ~ 9.8 mil) |
Media Core Diameter | 25.4mm~76.2mm (1”~3”) |
Processor | 32-bit CPU |
Interface | USB + LAN + Bluetooth |
Sensors | Gap sensor, Cover opening sensor, Black mark sensor |
Internal Fonts | 8 alphanumeric bitmap fonts, Windows fonts downloadable from software |
1D Barcode Support | Code 39, Code 93, Code 128, Codabar, Interleaved 20f5, EAN-8, UPC-A, UPC-E, MSI, PLESSEY, POSTNET, China POST, GS1 Databar, Code11 |
2D Barcode Support | PDF-417, Maxicode, DataMatrix, QR code, Aztec |
Rotation | 0°, 90°, 180°, 270° |
Dimensions | 215mm (L) x 178mm (W) x 149.5mm (H) |
Weight | 1.32 Kg |
Power Input/Output | AC 100~240V / DC 24V~2.5A |
Operating Conditions | Temperature: 5~40°C (41~104°F), Humidity: 25~85% non-condensing |
Storage Conditions | Temperature: -40~60°C (-40~140°F), Humidity: 10~90% non-condensing |
Drivers | Windows / Linux / Mac |
SDK | Windows / iOS / Android |
Warranty | 1 Year for Printer, 30Km for Print Head |
