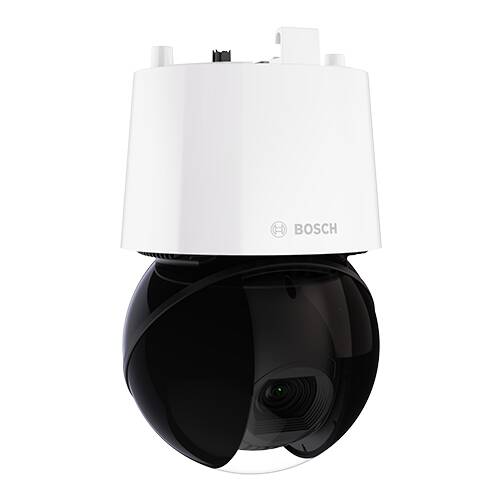

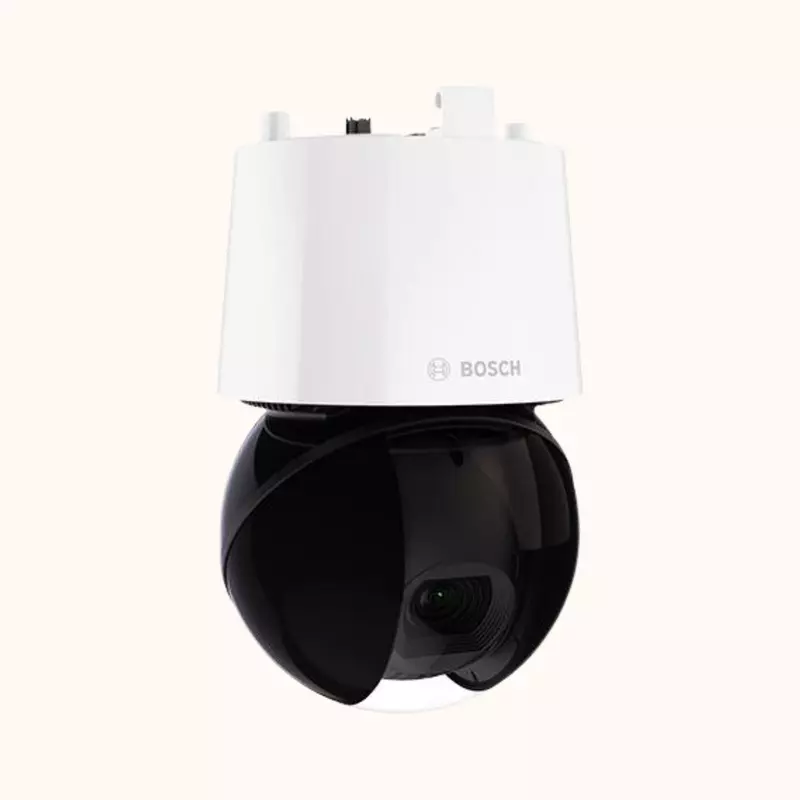

Bosch Outdoor 2MP PTZ camera - NDP-7602-Z40L
Specification | Details |
|---|
Model | NDP‑7602‑Z40L (Autodome 7100i series) |
Image Sensor | 1/2.8″ CMOS, 1920×1080 (2 MP) |
Optical Zoom / Lens | 40× zoom, focal length 4.25–170 mm, aperture f/1.6–4.95 |
Low-Light Sensitivity | Color: 0.0067 lx; B/W: 0.0010 lx |
Video Compression | H.264, H.265/HEVC, MJPEG |
IR Illumination | Up to 300 m distance (variable beam) |
Advanced Analytics | IVA Pro (persons, vehicles detection), AI-based anomaly alerts |
PTZ Mechanics | Pan 360° continuous, tilt –20° to 140°, pre-position accuracy ±0.1°, Pan/Tilt speed 0.1–400°/s |
Mechanical Drive Platform | Closed-loop, durable for continuous tours, 3-year warranty on moving parts |
Power Options | PoE+ (802.3bt Type 4 midspan/switch), 24 VAC, 36 VDC; dual-redundancy support |
Environmental Protection | Outdoor-rated: IP66, IK10, NEMA 4X |
Operating Temperature | –40 °C to +60 °C; storage –40 °C to +70 °C |
Mounting Style | Pendant mount (ceiling/wall pipe) |
Network Protocols | IPv4/IPv6, HTTP/S, RTSP, ONVIF S/G/M/T, MQTT, SNMP, FTP, iSCSI, QoS |
Cyber‑Security Features | TPM secure element (EAL6+), HTTPS, verified boot, login firewall |
Dimensions (Ø × H) | Ø 216.4 mm × 485 × 315 × 285 mm as pendant |
Weight | ~5.6 kg |
General
- Placement SupportedOutdoor
- Case TypeDome
- Megapixel (Approx.)2 MP
- Mounting TypeCeiling/Pole
- Connectivity TechnologyWired
- Wi-FiNo
