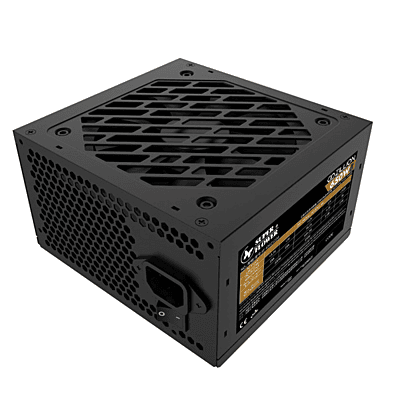

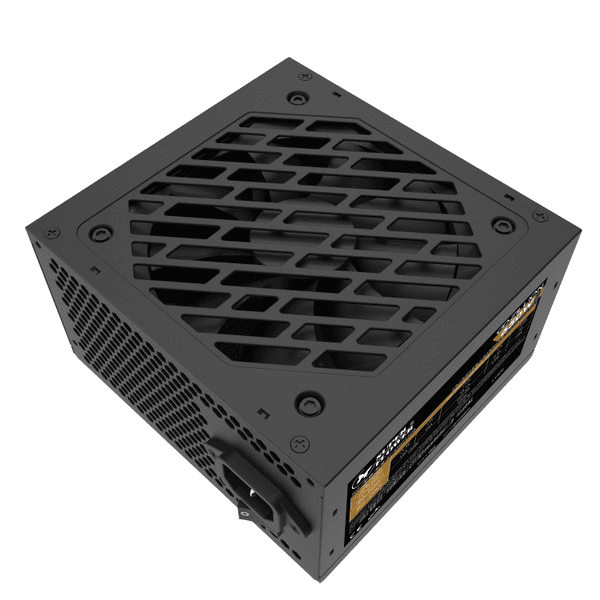

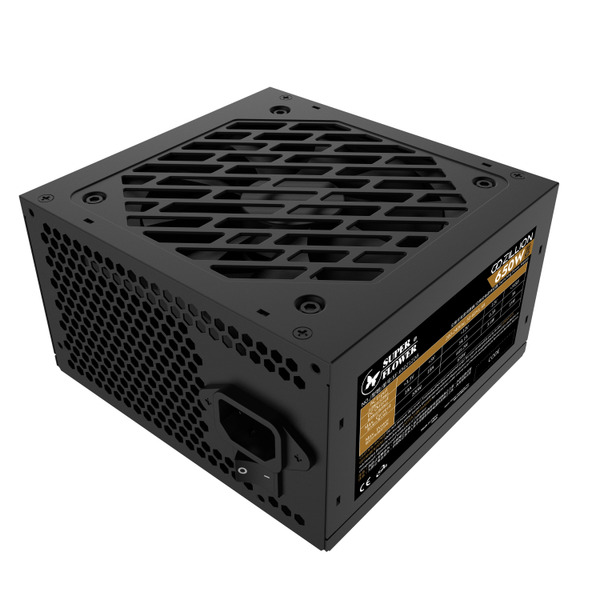

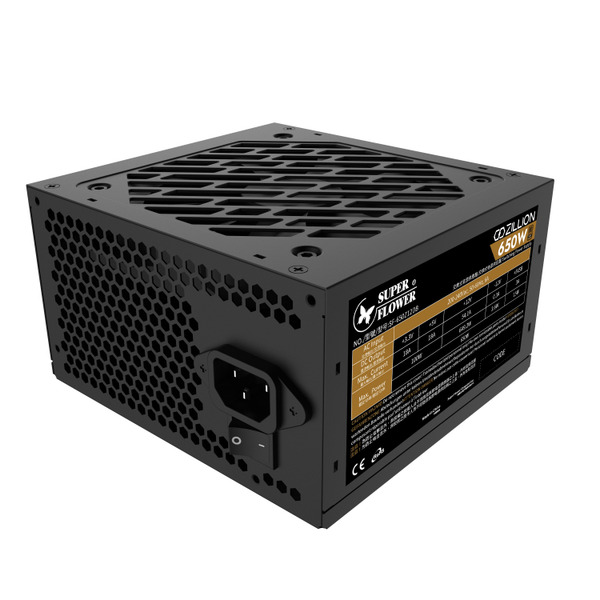

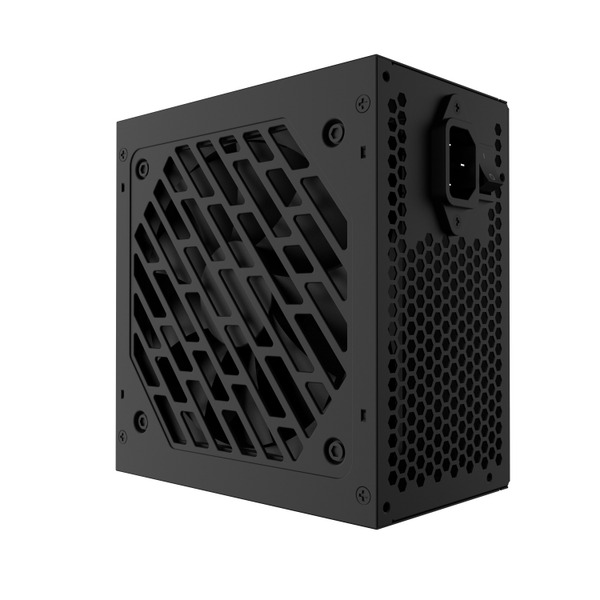

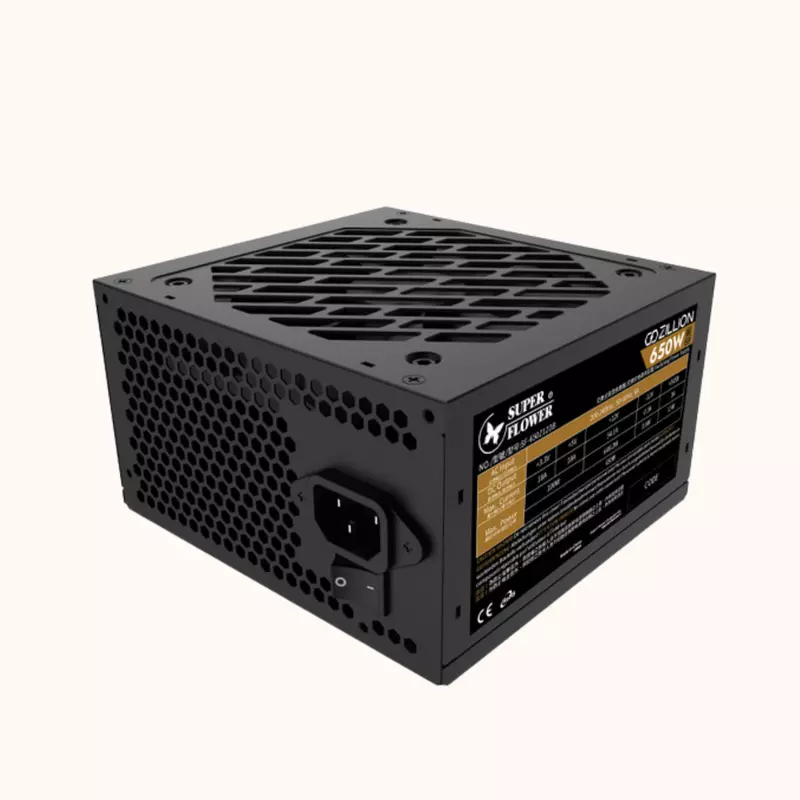

Superflower 650W Zillion Bronze Power Supply - SF-650Z12DB
Feature | Details |
|---|
Model | Zillion DB Bronze 650W |
Wattage | 650W |
Efficiency | 85% @ 20%, 88% @ 50%, 85% @ 100% (230V EU Internal Bronze) |
Intel Power Design | ATX 12V v2.3 and EPS 12V v2.92 Specification |
AC Input / Frequency | 200V–240V |
Fan Size | 120mm Sleeve Fan |
Dimensions (L×W×H) | 140mm × 150mm × 86mm (14.0 cm × 15.0 cm × 8.6 cm) |
Protection Features | OVP (Over Voltage), OCP (Over Current), OTP (Over Temperature), SCP (Short Circuit), OPP (Over Power), NLP (No Load) |
Safety Certifications | TÜV, CB, CE, RoHS |
Weight | Approx. 1.5 kg |
Feature | Details |
|---|---|
CPU & Motherboard Support | Supports all Intel / AMD multi-core CPUs and ATX / BTX compatible motherboards |
Graphics Card Compatibility | Supports NVIDIA® SLI™ & ATI CrossFireX™ high-performance graphic cards |
Efficiency Certification | 80 PLUS® Bronze Certified (85% @ 20%, 88% @ 50%, 85% @ 100% load) |
Compliance | ATX 12V v2.3 and EPS 12V v2.92 specifications |
PCI-E Connector | PCI-E (6+2) pin connector for high-end GPU requirements |
Protection Features | OVP (Over Voltage), OCP (Over Current), OTP (Over Temp), SCP (Short Circuit), OPP (Over Power), NLP (No Load) |
Cable Design | All flat cables for improved airflow and easy cable management |
Power Platform | DC-to-DC platform for enhanced voltage regulation and stability |
Main Capacitor | 105°C-rated high-quality Taiwanese main capacitor |
General
- Wattage650 Watt
- ModularNo
- Connector TypeATX
- PCIe Connector (6+2)1
