Open Box

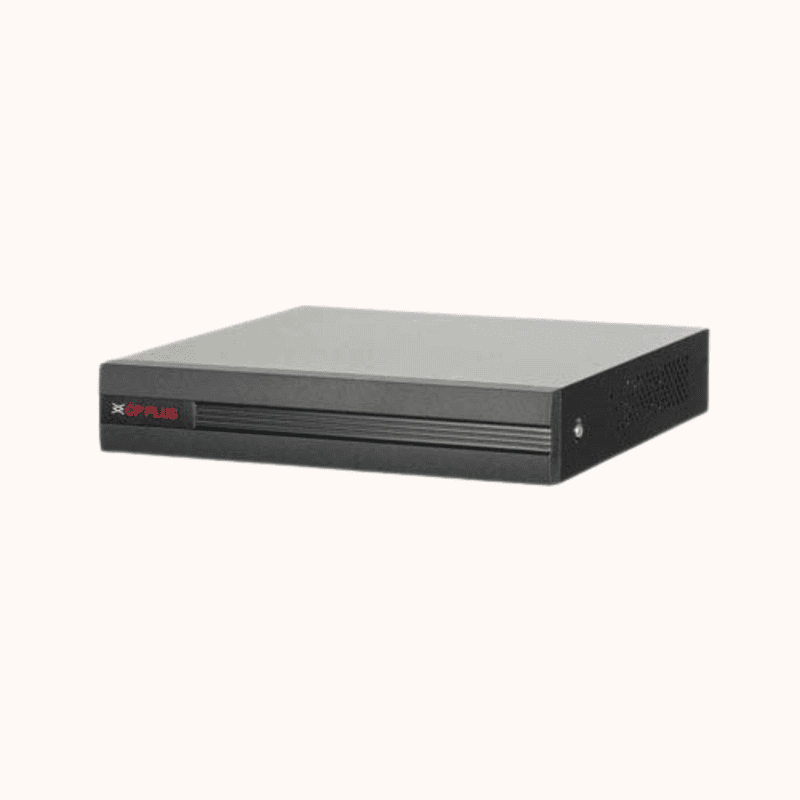

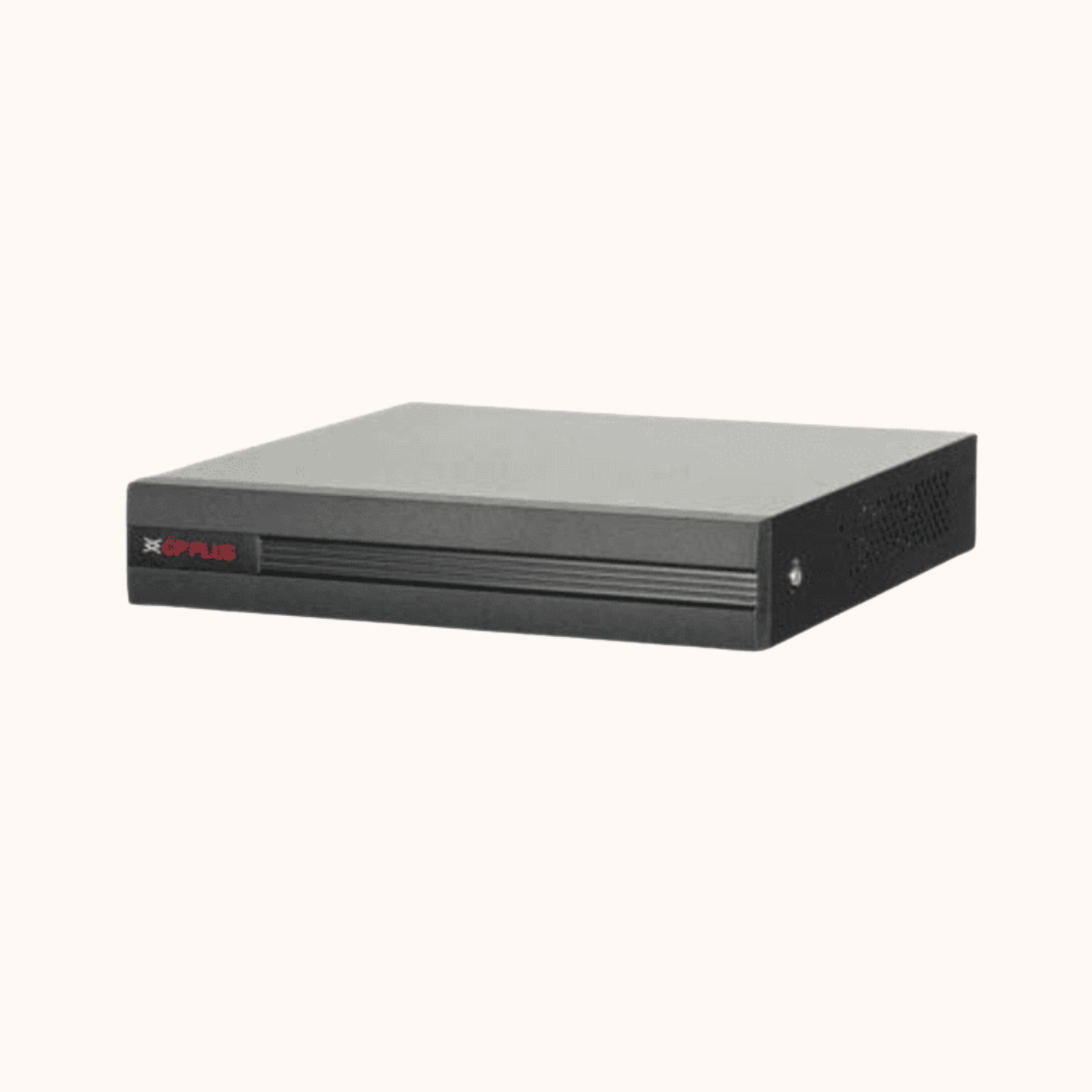

Openbox CP Plus 8 Channel DVR-CP-UVR-0801F1-IC
Rs. 5,250.00 Rs. 5,899.00
Tags:
Brand: CP Plus
Model: CP-UVR-0801F1-IC
Type: 8 Channel Digital Video Recorder (DVR)
Camera Support: Up to 5MP Analog / Up to 6MP IP Cameras
Storage: 1 SATA HDD Support (Up to 6TB)
Model: CP-UVR-0801F1-IC
Type: 8 Channel Digital Video Recorder (DVR)
Camera Support: Up to 5MP Analog / Up to 6MP IP Cameras
Storage: 1 SATA HDD Support (Up to 6TB)
Choose Quantity
Product Details
Specifications
| Brand | CP Plus |
| Model | CP-UVR-0801F1-IC |
| Product Type | Digital Video Recorder (DVR) |
| Channels | 8 Channel |
| Camera Support | HDCVI / AHD / HDTVI / CVBS / IP Cameras |
| IP Camera Support | Up to 12 IP Cameras (Each up to 6MP) |
| Video Compression | AI Instastream / H.265 / H.264+ / H.264 |
| Max Incoming Bandwidth | 64 Mbps |
| Video Output | 1 HDMI, 1 VGA |
| Recording Resolution | 5M-N / 4M-N / 1080P / 720P |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 × RJ-45 (10/100 Mbps) |
| Hard Disk Support | 1 SATA HDD (Up to 6TB) |
| Mobile Viewing | iCMOB / gCMOB Mobile App |
| CMS Software | KVMS Pro |
| Power Supply | DC 12V |
| Power Consumption | < 7 W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
| Dimensions | 198.3 × 203.4 × 41.5 mm |
| Weight | Approx. 0.57 kg (Without HDD) |
General
- Product TypeDVR
- HDD Capacity1TB
- Channels Quantity8 Channels
- Megapixel (Approx.)5 MP
- Mic SupportedYes
- SSD Capacity1TB
