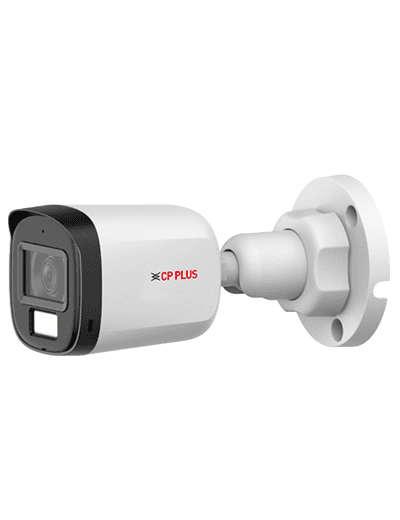

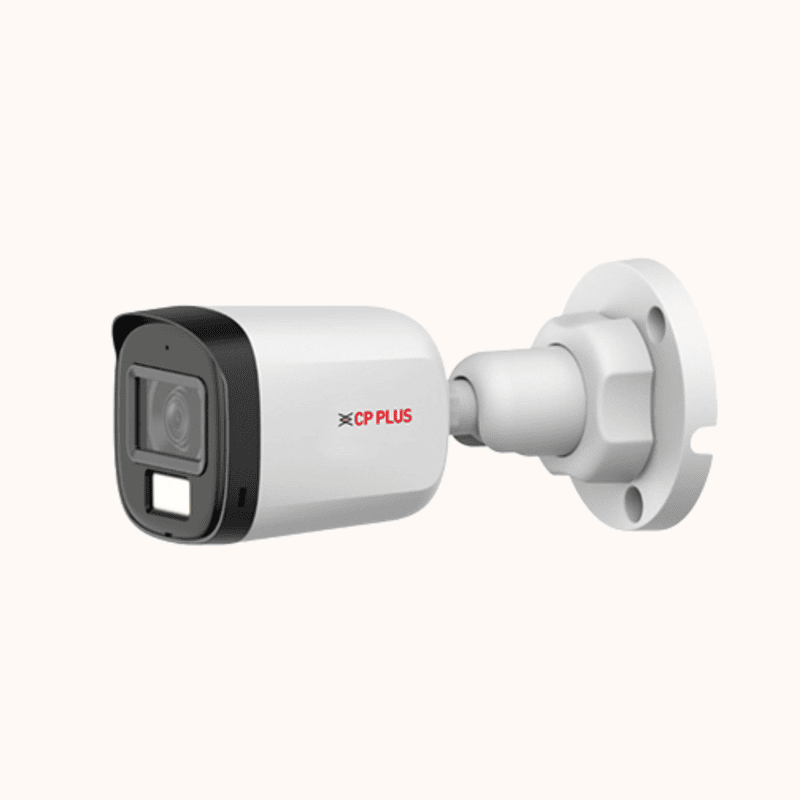

CP PLUS 5MP Dual Light Bullet Camera-CP-URC-TC51PL3C-L
Category | Details |
|---|
Image Sensor | 1/2.7” 5MP PS CMOS (0.9407 cm) |
Minimum Illumination | 0.02 lux@F2.0 (Color), 0.002 lux@F2.0 (B/W), 0 lux (IR on) |
Max. Resolution | 2880 (H) × 1620 (V) |
Shutter Speed | PAL: 1/251/100000s, NTSC: 1/301/100000s |
White Balance | Auto, Area White Balance |
AGC (Gain Control) | Auto |
DORI Distance | See breakdown below |
Lens Type | Fixed-focal |
Lens Options | 2.8mm (optional), 3.6mm, 6mm |
Max. Aperture | F2.0 |
Lens Mount | M12 |
Close Focus Distance | 2.8mm: 1.0m; 3.6mm: 1.3m; 6mm: 2.8m |
Backlight Compensation | BLC / HLC / DWDR |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
Angle of View | 2.8mm: H:106°, V:56°, D:125°; 3.6mm: H:92°, V:48°, D:109°; 6mm: H:54°, V:29°, D:62° |
S/N Ratio | >65 dB |
Supported Resolutions | 5MP, 4MP, 2MP, 960H |
Video Output | CVI / TVI / AHD / CVBS via BNC |
Video Streaming | CVI: up to 5M@25/30fps, AHD/TVI: up to 4M@25/30fps, CVBS: 960H |
Noise Reduction | 2D NR |
Privacy Mask | On/Off (8 areas) |
Day/Night | Auto(ICR) / Color / B/W |
Mirror Function | Supported |
IR Range | 30 Meters |
Warm Light Range | 20 Meters |
IR Modes | Smart IR & WL / WL Mode / IR Mode |
LEDs | 2 Warm Light + 2 IR Light |
Iris Control | Fixed |
Anti-corrosion | Basic Protection |
Audio | Built-in Microphone |
Weatherproof Rating | IP67 |
Operating Temp. | –40°C to +60°C (–40°F to +140°F) |
Operating Humidity | <95% RH (non-condensing) |
Storage Temp. | –40°C to +60°C (–40°F to +140°F) |
Storage Humidity | <95% RH (non-condensing) |
Power Source | 12V DC ±30% |
Power Consumption | Max 4.0W (with WLED on) |
Casing | Plastic |
Dimensions | 146.1mm × 70.0mm × 69.8mm |
Weight | 0.17 kg |
General
- Placement SupportedOutdoor
- Case TypeBullet
- Megapixel (Approx.)5 MP
- Mounting TypeCeiling/Wall
- AudioBuilt-ln Microphone
- Connectivity TechnologyWired
- Wi-FiNo
- Power Over EthernetNo
