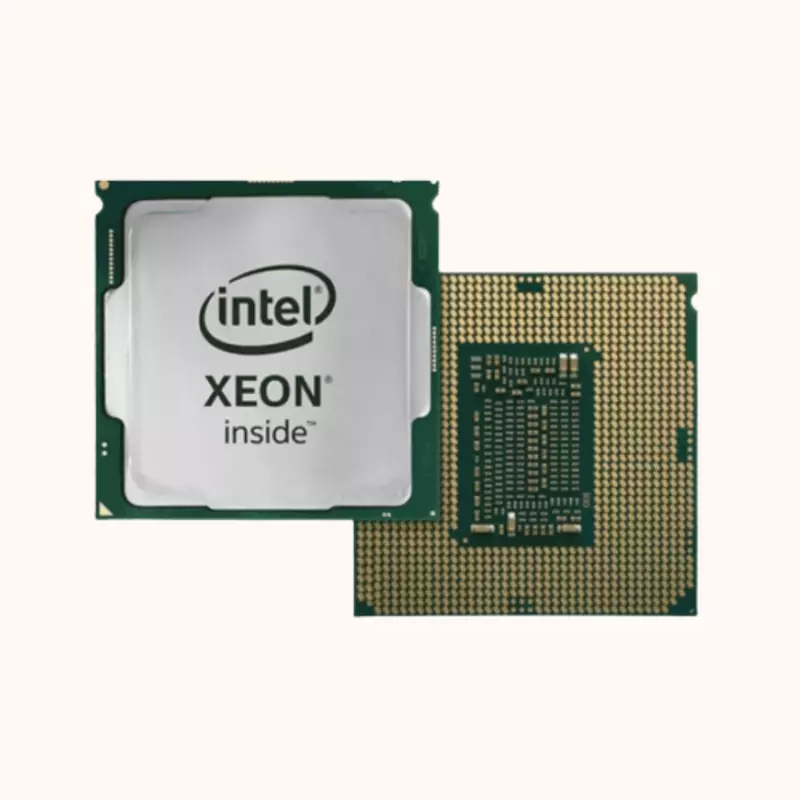

Intel Xeon Gold Processor - 5220

The Intel Xeon Gold 5220 processor is built on the 14nm Cascade Lake architecture and targets enterprise-level servers and high-performance computing environments. It has 18 physical cores and supports Hyper-Threading technology for a total of 36 threads, enabling high parallelism for virtualized and multi-threaded workloads.

Operating at a base frequency of 2.20 GHz with turbo speeds reaching 3.9 GHz, the processor offers strong single-thread and multi-thread performance. The 24.75 MB of SmartCache enhances data access speeds, while support for six memory channels and up to 1TB of DDR4 memory ensures excellent memory bandwidth and capacity.

The processor also supports Intel Optane DC Persistent Memory for enhanced storage performance and efficiency. With 48 PCI Express 3.0 lanes, it offers extensive I/O connectivity for expansion cards and high-speed networking. It uses the FCLGA3647 socket and supports up to 4-socket scalability.

Advanced features include Intel Turbo Boost Technology 2.0, Turbo Boost Max 3.0, Intel Hyper-Threading Technology, Intel Deep Learning Boost (DL Boost), and enhanced security and resource director technologies. Its 125W TDP facilitates a balance between performance and power efficiency suitable for modern data centers.

Released in Q2 2019 with an end of servicing update scheduled for June 30, 2025, the Xeon Gold 5220 remains a powerful option for workloads such as virtualization, AI inference, big data analytics, and cloud computing.

Processor package dimensions are approximately 76.0mm x 56.5mm, with an operating temperature up to 87°C.

This processor is ideal for enterprise deployments requiring scalable, high-core-count CPUs with robust performance and advanced feature sets
