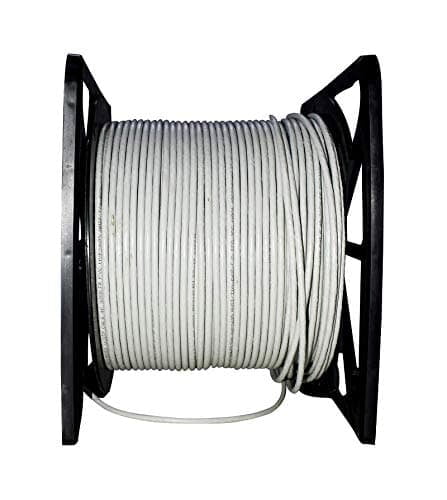

Product Name | CommScope Cable Box (AMP) UTP Cable Cat6A 305 MTR - White (884024508/10) |
Cable Type | UTP (Unshielded Twisted Pair) Category 6A (CAT 6A) |
Length | 305 meters |
Color | White |
Conductor | 4 pairs of twisted copper wires (typically 23 AWG) |
Shielding Type | UTP (Unshielded Twisted Pair) - No additional shielding around the pairs, making it cost-effective for many applications |
Jacket Material | PVC (Polyvinyl Chloride) - Flexible, durable, and resistant to abrasions, commonly used for general-purpose cables |
Transmission Speed | Supports data transmission speeds up to 10Gbps (10 Gigabit Ethernet) over distances up to 100 meters |
Bandwidth | Up to 500 MHz |
Compatibility | Compatible with 10GbE (10 Gigabit Ethernet), Fast Ethernet (100BASE-TX), Gigabit Ethernet (1000BASE-T), and other Ethernet standards |
Applications | Ideal for structured cabling in commercial buildings, data centers, and enterprises requiring high-speed data transfer and high-performance networks |
Operating Temperature | Typically supports a temperature range from -20ยฐC to +60ยฐC |
Compliance | Complies with international cabling standards like ISO/IEC 11801 and ANSI/TIA-568-C.2 for Cat6A performance |
Fire Safety Rating | Flame-retardant PVC jacket provides basic fire protection; however, it is not as fire-resistant as LSZH cables |
Additional Features | Offers excellent performance for high-speed applications, reducing interference and crosstalk to ensure reliable signal transmission |
Warranty | Manufacturer warranty for defect-free performance and compliance with industry standards |
