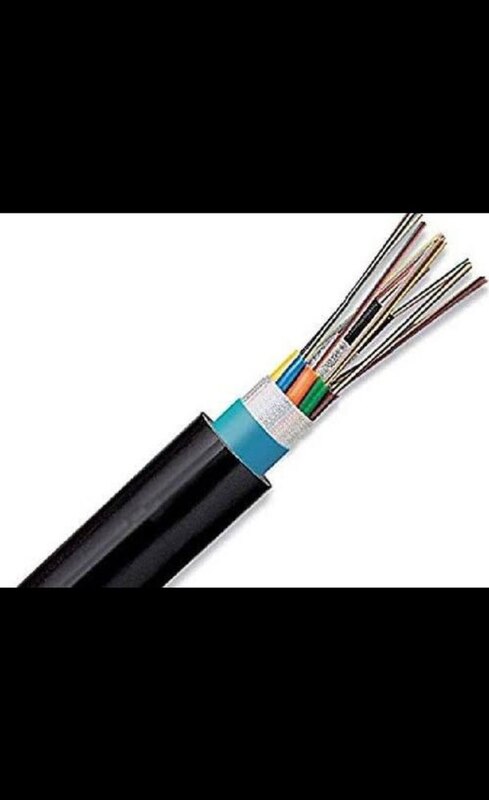

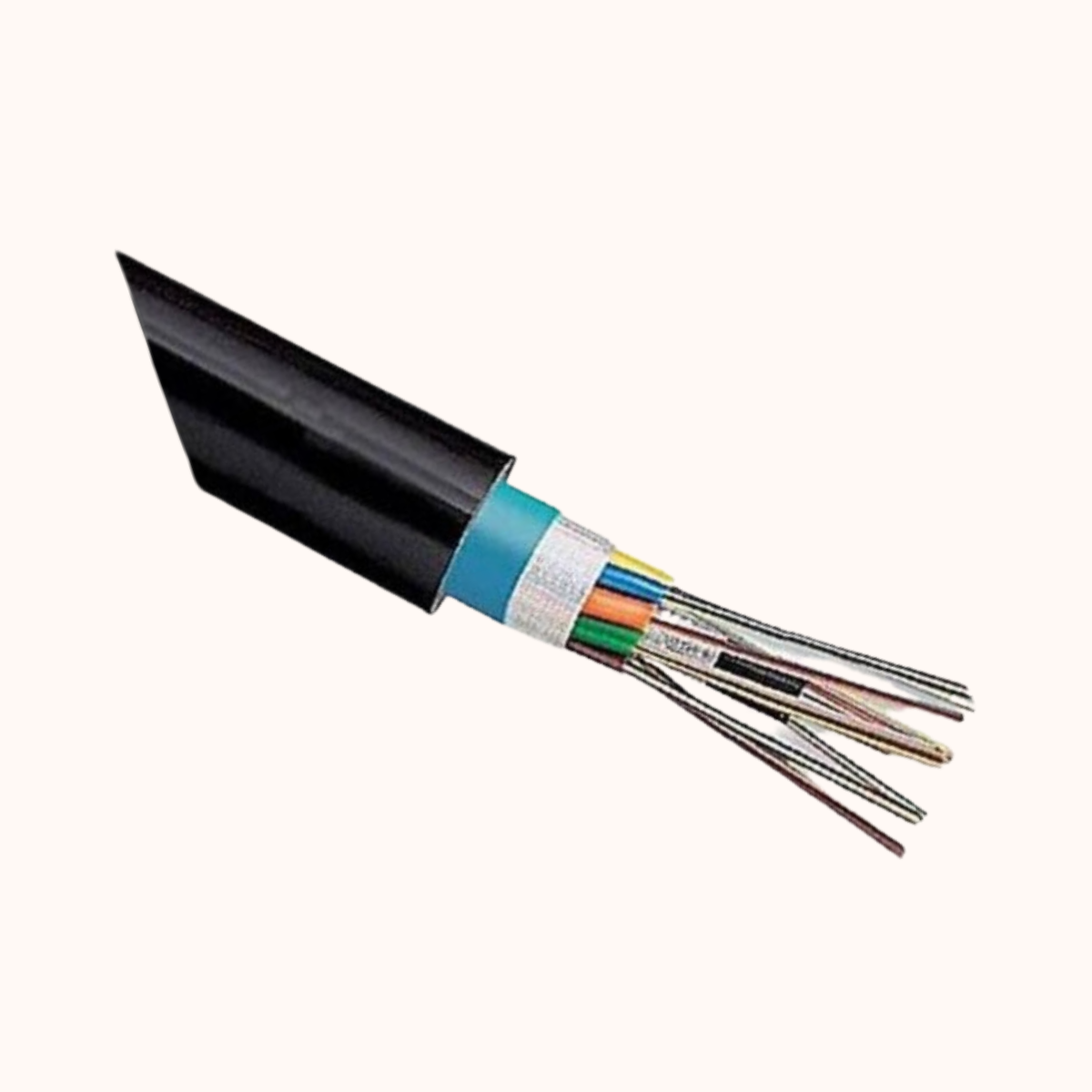

D-Link 12 Core SM Armoured Cable (NCB-FS10O-AUHD-12) - (Cent)
Rs. 67.00 Rs. 148.00
Out of stock
Tags:
- Type: 12 Core Single Mode (SM) Armoured Fiber Cable
- Model: D-Link NCB-FS10O-AUHD-12
- Construction: Armoured design for enhanced durability and protection
- Application: Suitable for outdoor installations and long-distance data transmission
- Fiber Standard: Optimized for high-speed communication and minimal signal loss
Product Details
| Feature | Details |
|---|---|
| Brand | D-Link |
| Model | NCB-FS10O-AUHD-12 |
| Product Type | 12 Core Single Mode Armoured Fiber Optic Cable |
| Core Count | 12 Fiber Cores |
| Fiber Type | Single Mode (SM) |
| Application Standard | G.652.D |
| Cable Construction | Outdoor, Armoured |
| Strength Member | Central strength member with supporting steel wire |
| Sheath Type | Double Sheath for enhanced durability |
| Sheath Material | UV-protected and weather-resistant High-Density Polyethylene (HDPE) |
| Armour Type | Corrugated Steel Tape Armour for added mechanical protection against rodent attacks and harsh conditions |
| Water Blocking | Jelly-filled construction for superior water resistance and protection |
| Cable Diameter | Approximately 10.5 mm to 12 mm (typical for armoured fiber optic cables) |
| Operating Temperature Range | -40°C to +70°C, suitable for a wide range of outdoor environmental conditions |
| Tensile Strength | High tensile strength rating to withstand pulling forces during installation |
| Crush Resistance | Excellent crush resistance due to armoured structure |
| Bending Radius | Minimum bending radius: Typically 20 times the outer diameter under dynamic conditions, 10 times under static conditions |
| Optical Characteristics | Low attenuation and excellent signal integrity, optimized for long-distance single-mode fiber optic communication |
| Transmission Distance | Suitable for long-haul, metro, and local area networks, supporting high-speed data transmission over distances beyond 10 kilometers, depending on the optical budget and equipment used |
| Cable Color | Black (outer sheath) |
| Marking and Identification | Sequential length marking in meters on the outer sheath for easy installation and length management |
| Standards Compliance | Complies with ITU-T recommendations and relevant industry standards for optical performance and safety |
| Applications | - Ideal for outdoor deployment in direct burial, duct, or aerial installations - Telecommunications networks, data centers, and enterprise networks - Suitable for high-bandwidth and long-distance network infrastructures such as backbone and access networks |
| Packaging | Typically supplied on wooden or plastic drums for easy handling and deployment |
| Safety Features | Flame retardant and UV-resistant for outdoor longevity |
| Weight | Weight varies based on drum size, typically in the range of hundreds of kilograms per kilometer |
| Port Compatibility | Compatible with various single-mode fiber termination types, including SC, LC, ST, and FC connectors |
| Installation | Supports splicing and termination with industry-standard fiber optic tools and components |
| Warranty and Support | Usually covered by a manufacturer warranty (specific details depend on supplier) |
