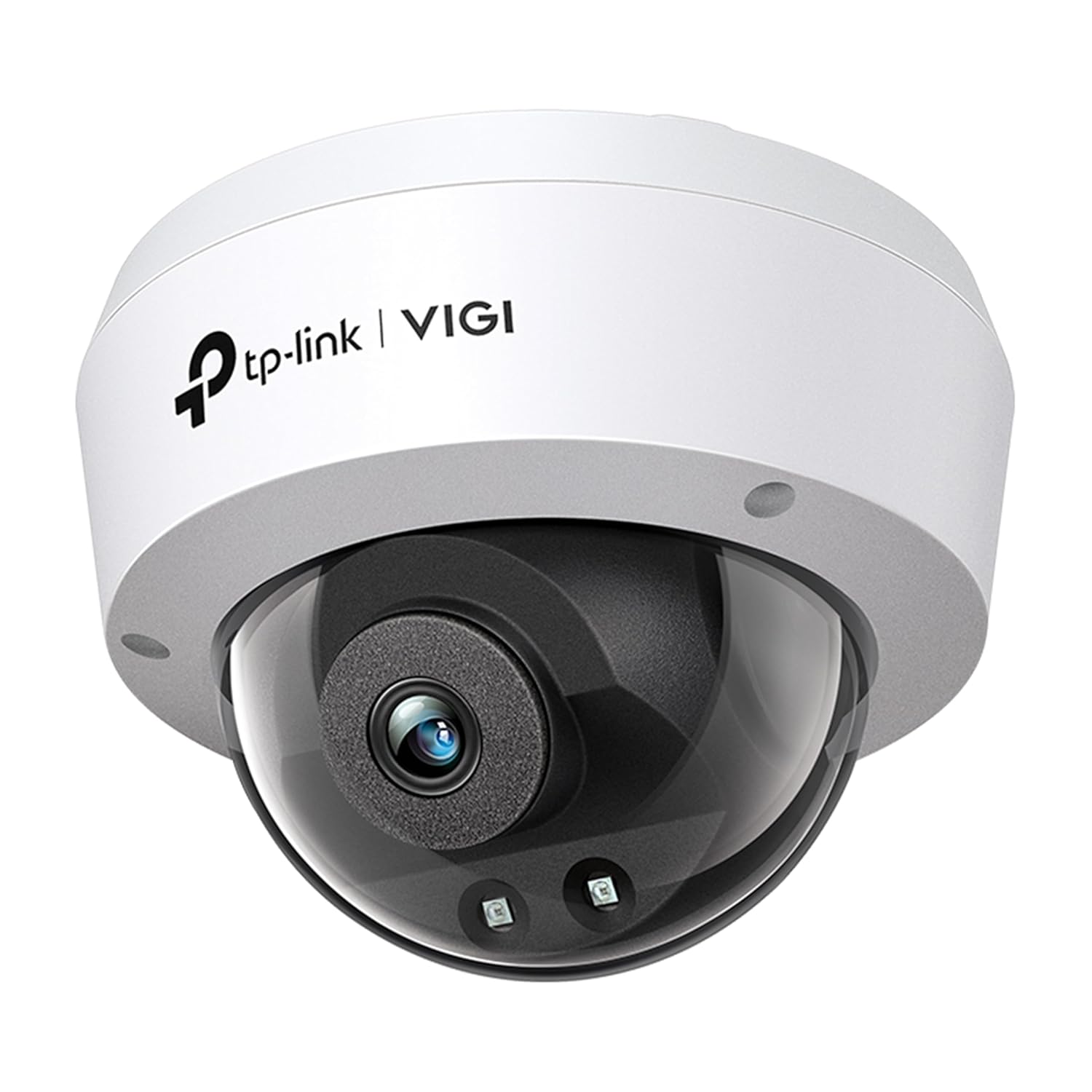

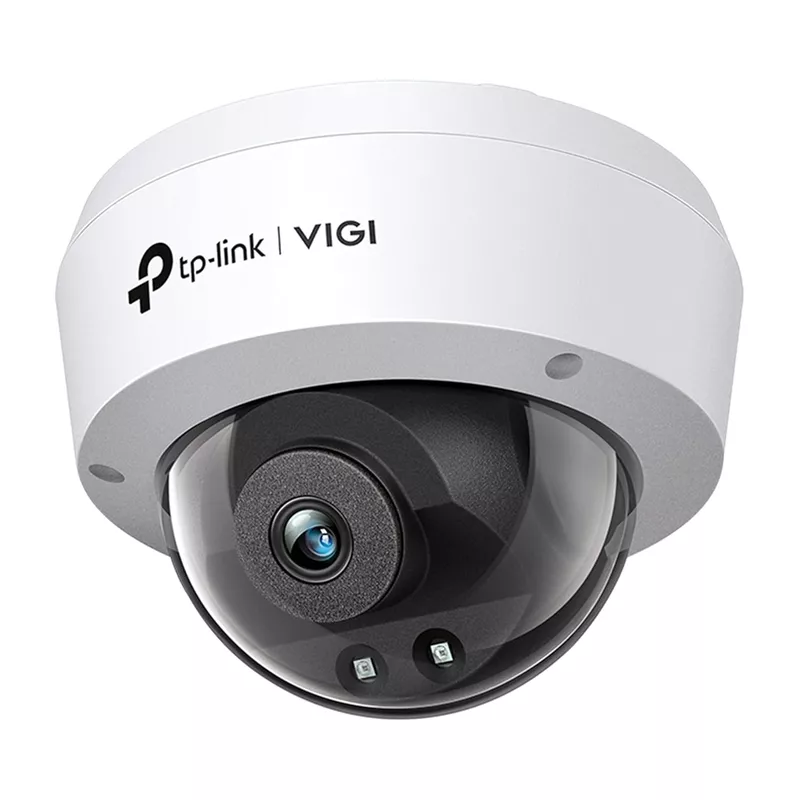

TP-Link VIGI (2.8mm) 4MP IR Dome Network Camera-C240I
Recommended Uses For Product | Outdoor Security |
Brand | TP-Link |
Connectivity Technology | Wired |
Special Feature | ONVIF Compatibility, 2 Way Audio, 3D NDR, Smart Video Coding, Vandal Proof |
Indoor/Outdoor Usage | Outdoor, Indoor |
Compatible Devices | Smartphone |
Power Source | Corded Electric |
Connectivity Protocol | Ethernet |
Mounting Type | Ceiling Mount |
Video Capture Resolution | 1440p |
Camera Specifications Table
Category | Specification |
|---|---|
Image Sensor | 1/3” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Aperture | 2.8 mm: F2.2 |
Lens | 2.8 mm / 4 mm |
Lens Mount | M12 |
Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |

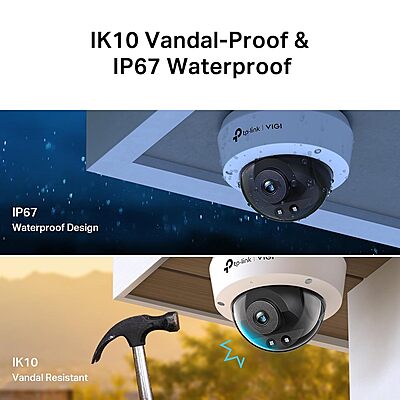

Weatherproof Rating | IP67 |
IR Working Distance | 30 m |
Pan/Tilt (Manual) | Pan: 0° to 355°, Tilt: 0° to 75° |
Lens & Field of View (FOV)
Focal Length | Horizontal FOV | Vertical FOV | Diagonal FOV |
|---|---|---|---|
2.8 mm | 88.8° | 48.9° | 106.5° |
4 mm | 75.1° | 41.5° | 88.7° |
DORI Distance
Focal Length | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
2.8 mm | 60 m (197 ft) | 25 m (82 ft) | 12 m (39 ft) | 6 m (20 ft) |
4 mm | 80 m (262 ft) | 33 m (109 ft) | 16 m (52 ft) | 8 m (26 ft) |
Illuminator Details
IR LED | Quantity: 2, Range: 30 m, Wavelength: 850 nm |
|---|---|
White LED | N/A |
Control | Auto / Scheduled / Always On / Always Off |
Video
Max. Resolution | 2560 × 1440 |
|---|
General
- Placement SupportedIndoor/Outdoor
- Case TypeDome
- Megapixel (Approx.)4 MP
- Mounting TypeCeiling
- Connectivity TechnologyWired
- Wi-FiNo

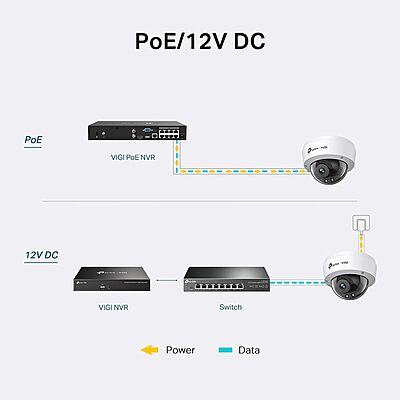

- Power Over EthernetYes
