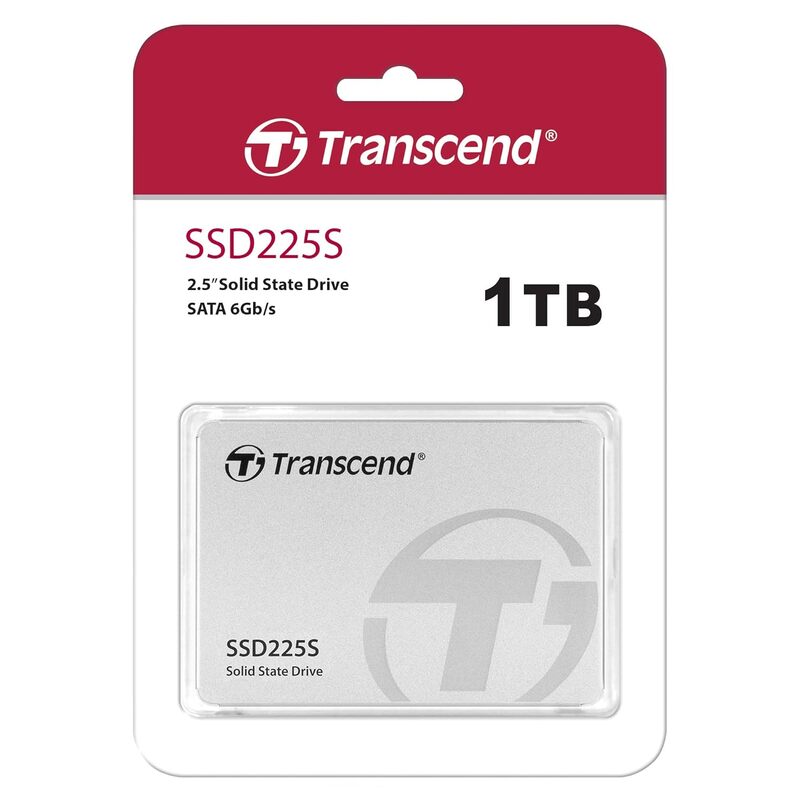

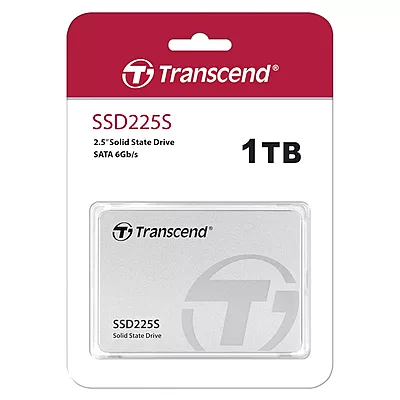

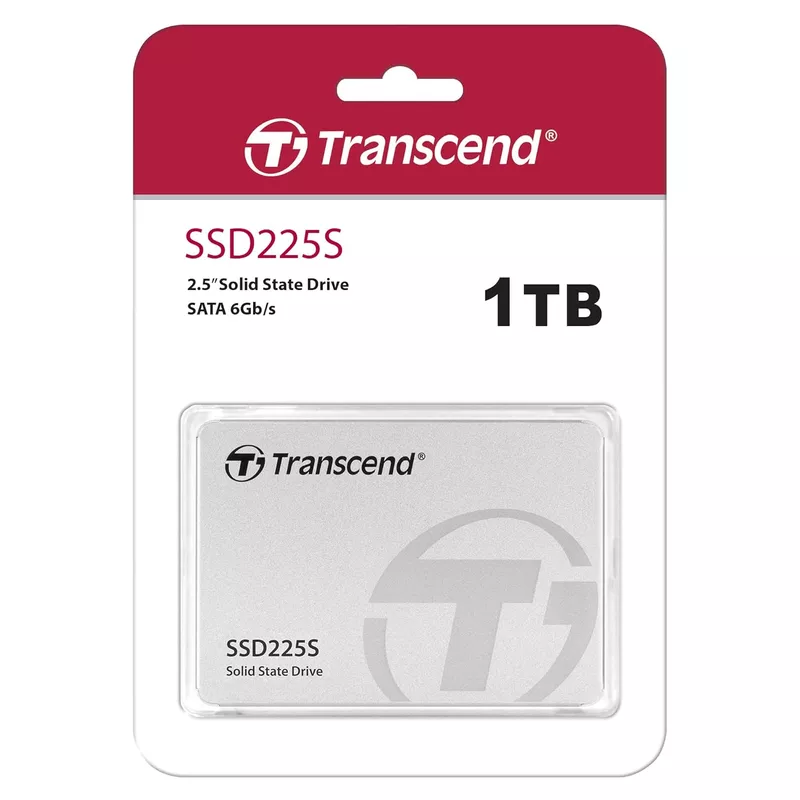

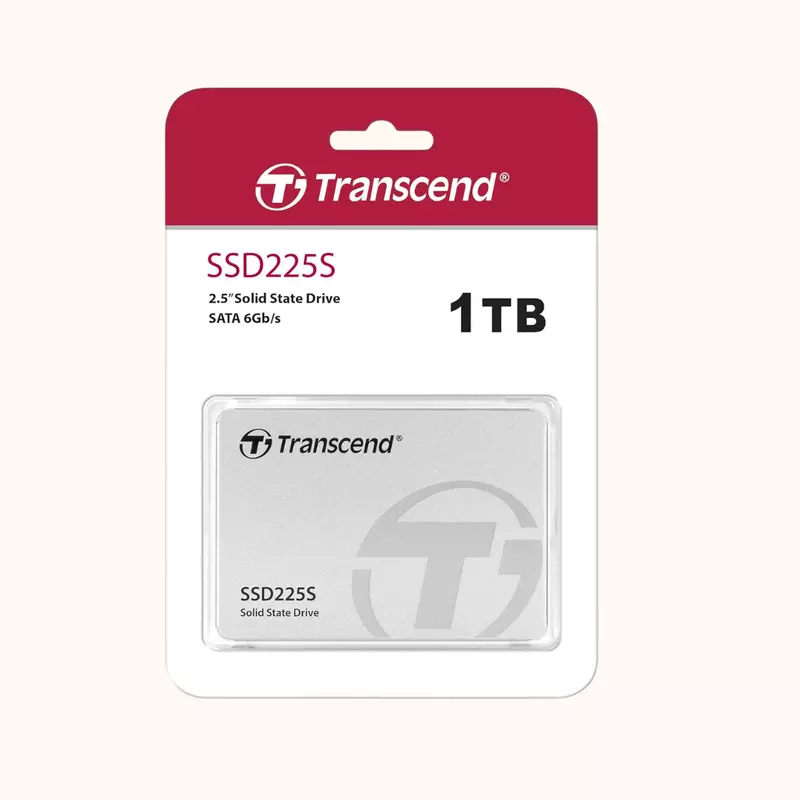

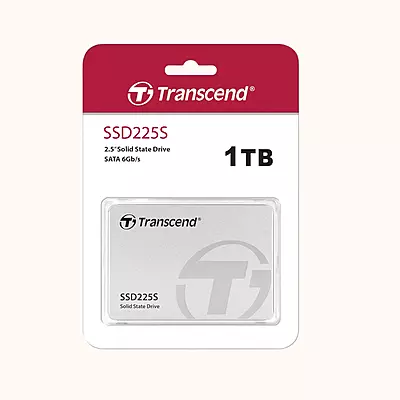

Transcend 230S 1TB 2.5-inch SSD (TS1TSSD225S )

Appearance

100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")

53 g (1.87 oz)

Storage

• 3D NAND flash

• 128 GB/

• 256 GB/

• 512 GB/

• 1 TB/

• 2 TB/

• 4 TB

Operating Environment

0°C (32°F) ~ 70°C (158°F)

• 5V±5%

Performance

• 4 TB

  Up to 560/520 MB/s

• 2 TB

  Up to 560/520 MB/s

• 1 TB

  Up to 560/500 MB/s

• 512 GB

  Up to 560/500 MB/s

• 256 GB

  Up to 530/400 MB/s

• 128 GB

  Up to 560/380 MB/s

• 4 TB

  Up to 90,000/85,000 IOPS

• 2 TB

  Up to 85,000/89,000 IOPS

• 1 TB

  Up to 85,000/85,000 IOPS

• 512 GB

  Up to 65,000/85,000 IOPS

• 256 GB

  Up to 65,000/85,000 IOPS

• 128 GB

  Up to 35,000/70,000 IOPS

• 4 TB

  2,240 TBW

• 2 TB

  1,120 TBW

• 1 TB

  560 TBW

• 512 GB

  280 TBW

• 256 GB

  140 TBW

• 128 GB

  70 TBW

2,000,000 hour(s)

0.3 (5 yrs)

• Speed may vary due to host hardware, software, usage, and storage capacity.

• The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

• Terabytes Written (TBW) expresses the endurance under the highest capacity.

Warranty

• CE/

• UKCA/

• FCC/

• BSMI/

• KC/

• RCM

• Five-year Limited Warranty

Package

• Full unit

System Requirement

• Microsoft Windows 7 or later

• Linux Kernel 2.6.31 or later
