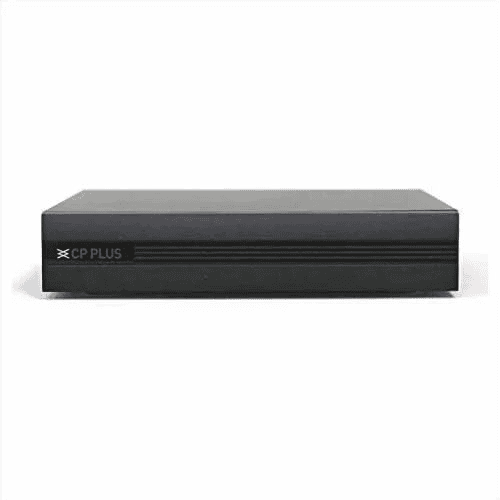

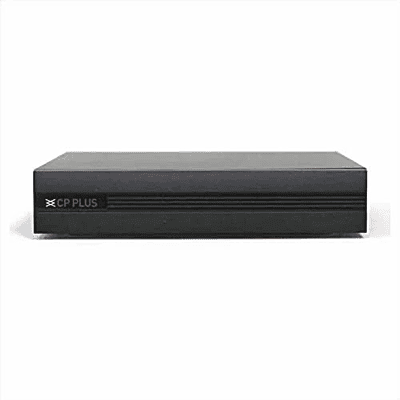

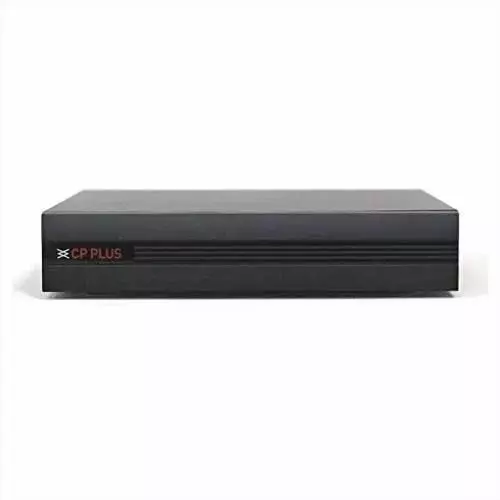

CP Plus 8 Channel DVR-CP-UVR-0801F1-IC2

Video Resolution

1920×1080, 1280×1024, 1280×720

Video Compression

AI Instastream / Instastream / H.265 / H.264+ / H.264

Video Recording

Main stream: All channel 5M-N (1–10 fps); 4M-N/1080p (1–15 fps); 1080N/720p/960H/D1/CIF (1–30 fps)

Video Display Split

1 / 4 / 8 / 9

Resolution Supported

5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF

Bit Rate

32 kbps – 6144 kbps per channel

Video Channel

4 channels, BNC

Audio Compression

G.711A, G.711U, PCM

Audio Input

1 channel, RCA

Audio Output

1 channel, RCA

Motion Detection

Supported

Video Loss Detection

Supported

Smartphone Support

iPhone, iPad, Android Phone

Hard Disk

1 SATA port, up to 6TB

Camera Blank

Supported

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips

Recording Modes

Manual, Schedule (Regular, Continuous), MD (Motion Detection, Video Loss, Tampering), Alarm, Stop

Search Modes

Time/Date, Alarm, MD, Exact Search (accurate to second)

Backup Mode

USB Device / Network

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next/Previous file, Next/Previous camera, Full screen, Repeat, Shuffle, Backup, Selection, Digital zoom

Max User Accounts

128 users

Record Interval

1–60 min (default 60 min); Pre-record: 1–30 sec; Post-record: 10–300 sec

Ethernet Port

1 × RJ-45 (100 Mbps)

Interface Ports

2 × USB 2.0

Supported Protocols

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, InstaOn, IP Search, ONVIF 16.12, CGI

Power Supply

DC 12V / 1.5A

Power Consumption

< 7W (without HDD)

Working Temperature

-10°C to +45°C (14°F to 113°F), 0–90% RH

Dimensions (L×W×H)

198.3 mm × 203.4 mm × 41.5 mm

Weight

0.57 kg (without HDD)
