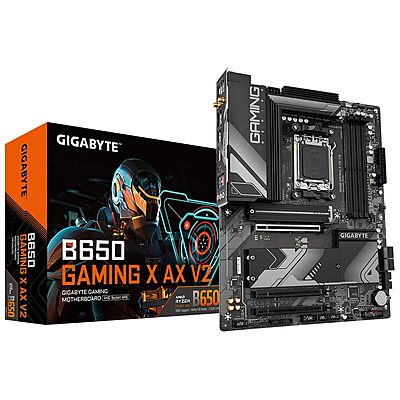

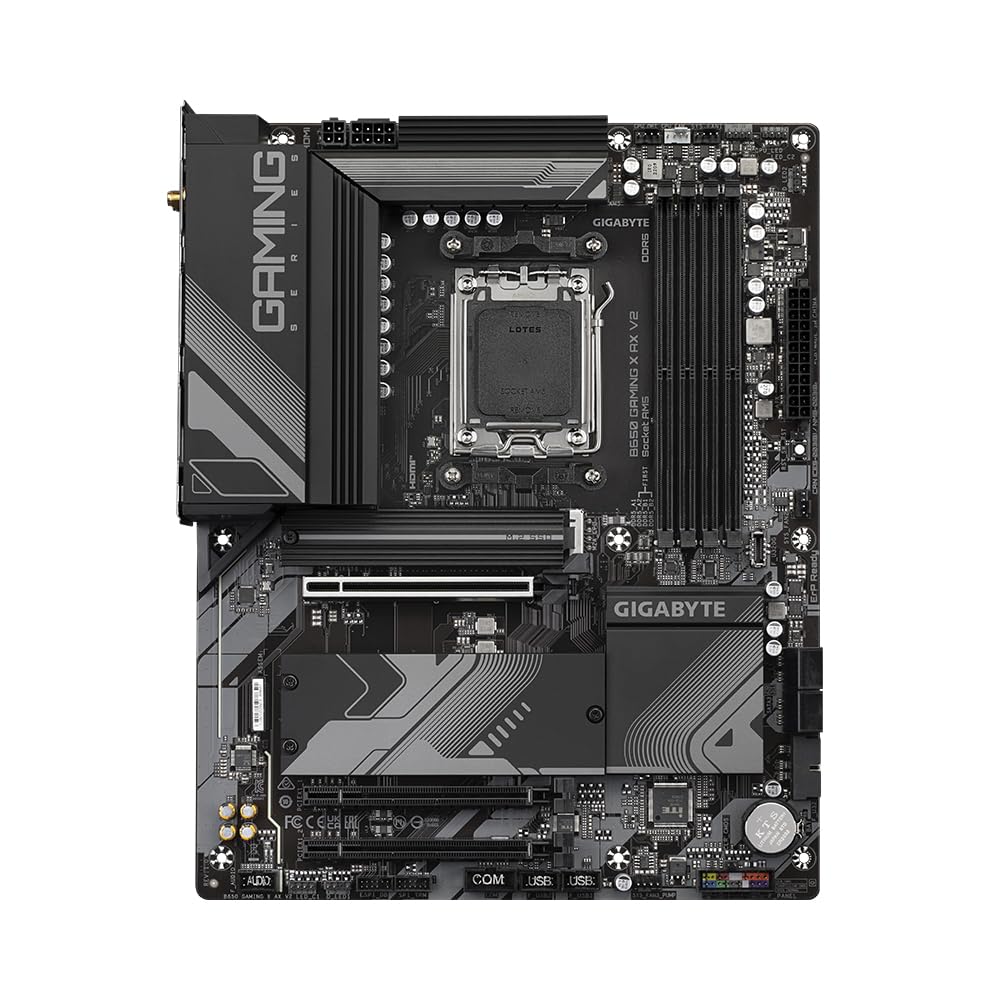

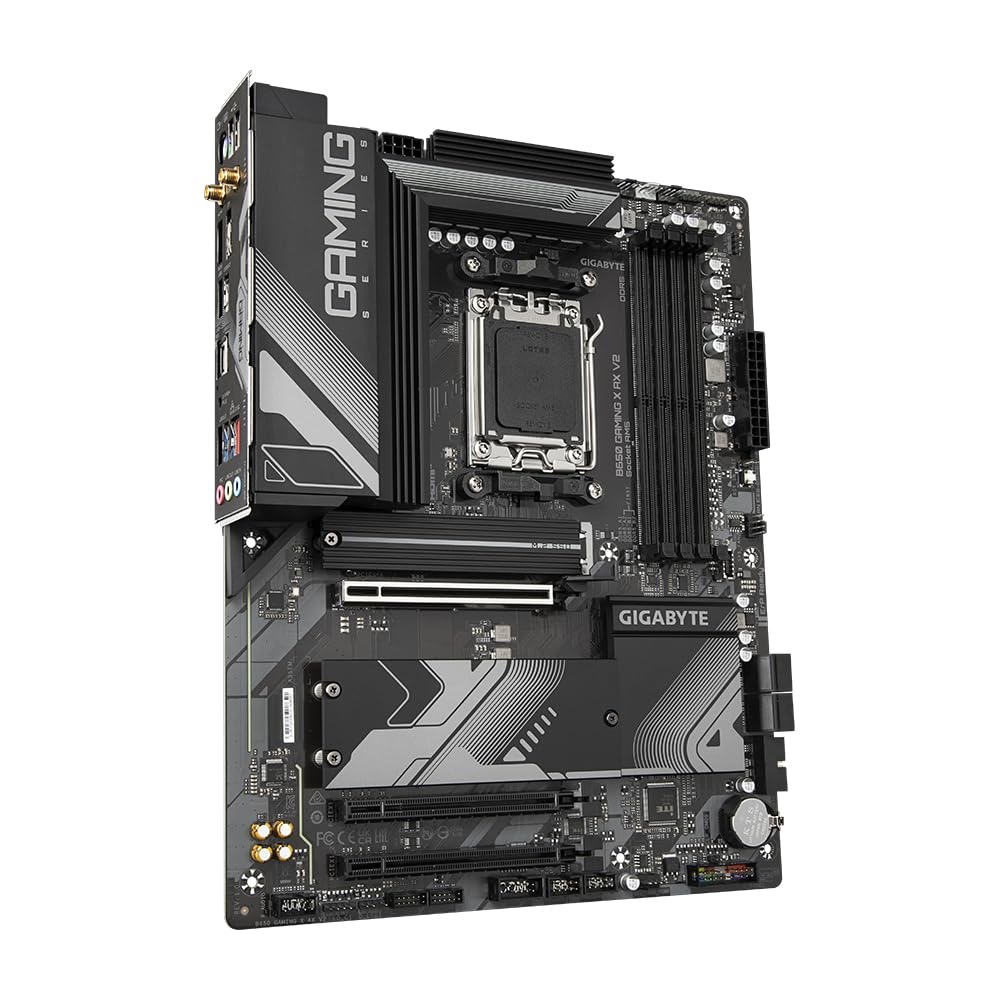

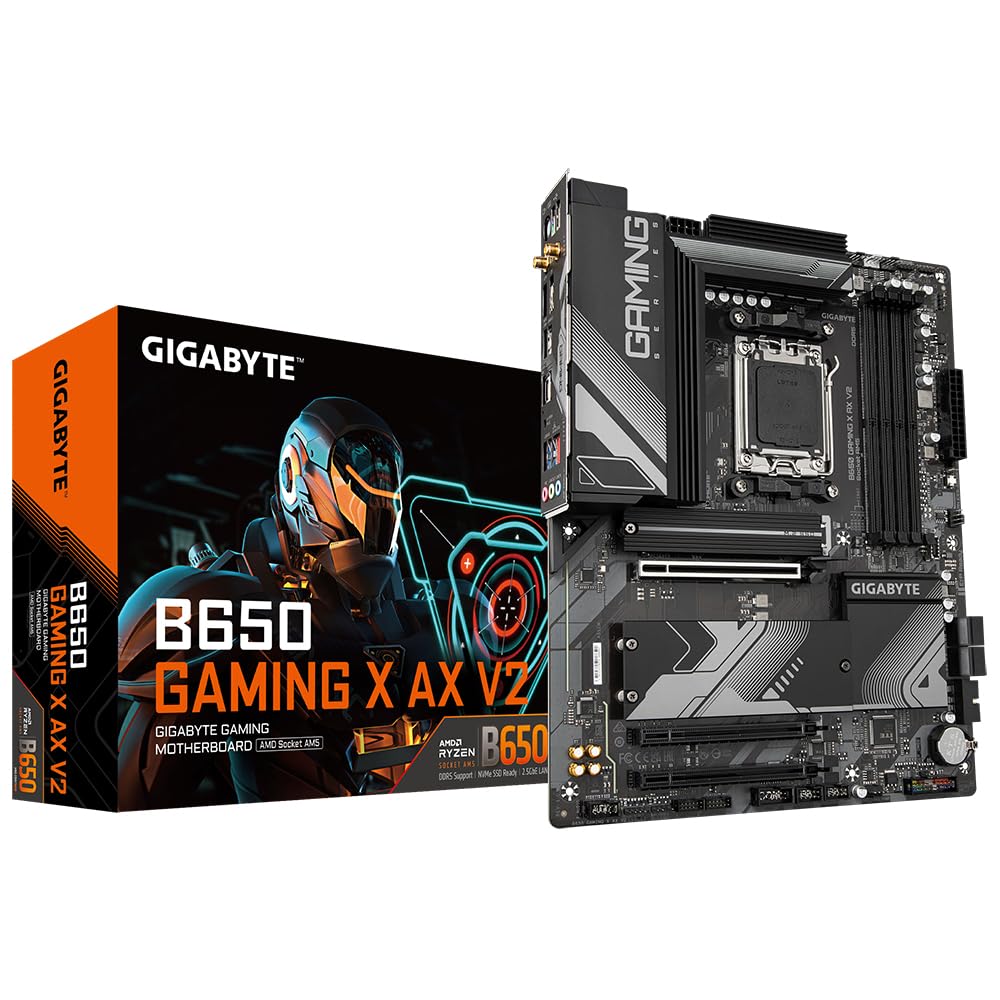

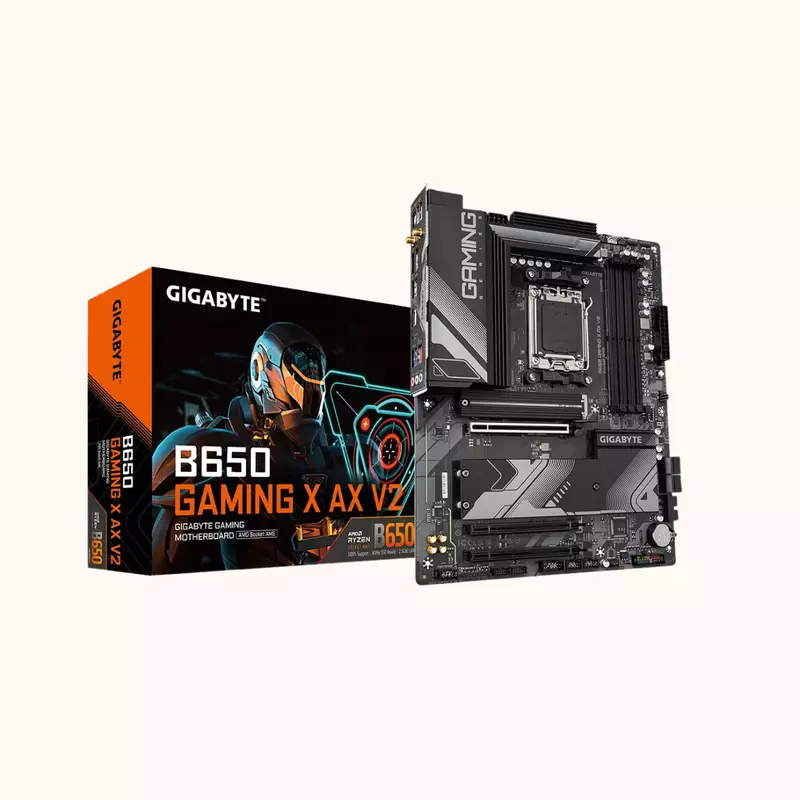

GIGABYTE Motherboard (Wi-Fi) DDR5-‎B650 GAMING X AX V2

1

CPU / Socket Compatibility

Supports AMD Socket AM5, which works with Ryzen 7000, Ryzen 8000, and Ryzen 9000 series CPUs.

2

Chipset

Uses AMD B650 chipset.

3

Power Delivery / VRM

Digital VRM design with 8 + 2 + 2 phases (8 for CPU, 2 for SoC/digital, etc.). Good for moderate overclocking and stable power under load.

4

Memory Support

4× DDR5 DIMM slots. Supports dual‑channel DDR5 with EXPO & XMP profiles. Support for high speeds (e.g. up to ~8000 MT/s (OC) in some lists). Max capacity ~192 GB.

5

PCIe / Expansion / Graphics Slot

One primary PCIe x16 slot (for GPU). In some listings, the main GPU slot supports PCIe 4.0. There are other PCIe x1 slots for expansion.

6

Storage / M.2 Slots

Supports one PCIe 5.0 x4 M.2 slot + two additional PCIe 4.0 x4 M.2 slots. Also supports long M.2 types (e.g. 25110/2580).

7

Thermal Design

Includes heatsinks on MOSFETs, enhanced M.2 thermal guards (so SSDs are kept cooler), 6‑layer PCB with 2× copper in some versions

8

Networking / Wireless

Onboard Wi‑Fi 6E (802.11ax) and Bluetooth, plus 2.5 GbE Ethernet LAN port.

9

USB / I/O Ports

Rear and front USB‑C ports: includes a rear USB‑C (10 Gb/s) and a front USB‑C header (20 Gb/s) in some listings. Also multiple USB‑A ports of different speeds.

10

Display Outputs

Has DisplayPort and HDMI ports (for CPUs with integrated graphics) so you can use the motherboard for display if your CPU supports iGPU.

11

Fan Headers & Cooling Control

“Smart Fan 6” system: multiple temperature sensors, hybrid or mixed headers (Fan / Pump), features like Fan‑Stop under light loads.

12

BIOS / Flashing Features

Q‑Flash Plus: allows updating BIOS without CPU, RAM or GPU installed. Also Clear CMOS etc.

13

RGB / Aesthetic / Extras

RGB Fusion for LED control, addressable RGB headers, etc. Some lighting headers etc.

14

Reliability / Build Quality

Uses high‑quality components, MOSFET cooling, well‑designed PCB. Good warranty (Gigabyte usually gives 3‑5 years). Integrated I/O shield in some variants.

15

Considerations / Limitations

• The main GPU slot maybe limited to PCIe 4.0 (even if some earlier BIOSes allowed unofficial PCIe 5.0, later BIOS removed that option.
• To get maximum memory speed and stability, decent RAM and cooling needed.
• As a mid‑range board, it may not have as many premium features (e.g. ultra‑high end VRM cooling, or extreme connectivity) as the more expensive X670E boards.
• Always check motherboard revision and BIOS version if you plan to use newest Ryzen 9000/X3D CPUs etc
