Tp-Link AX3000 Wall Plate WiFi 6 Access Point-EAP650-Wall
Feature | Details |
|---|---|
WiFi 6 Speeds (AX3000) | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) = 2976 Mbps total |
Network Efficiency | Reduced lag, better data delivery to multiple devices |
In-Room WiFi Coverage | Strong corner-to-corner WiFi coverage |
Gigabit Port | One downlink gigabit port for wired devices |
Cloud Management | Integrates with Omada SDN for cloud access and remote management |
Secure Guest Network | Multiple authentication options (SMS/Voucher) with high-quality security |

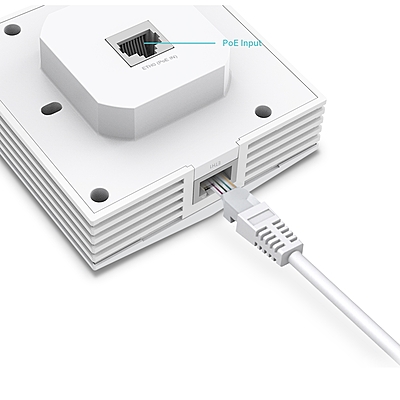

Easy Installation & PoE | Compatible with standard junction boxes and supports 802.3af/at PoE |
Category | Main Key Points |
|---|---|
Hardware Features | - 1× Uplink (10/100/1000 Mbps Ethernet Port) |
Antenna | 2 Dual-Band Antennas: 2.4 GHz (3 dBi), 5 GHz (5 dBi) |
Dimensions | 86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in) |
Wireless Features | - IEEE 802.11ax/ac/n/g/b/a |
Coverage | 40㎡ (450 ft²) |
Concurrent Clients | 100+ clients |
Wireless Security | WPA/WPA2/WPA3, MAC Address Filtering, Captive Portal Authentication, Rogue AP Detection, 802.1X Support |
Transmission Power | CE: <20 dBm (2.4 GHz), <22 dBm (5 GHz Band 1 & 2), <22 dBm (5 GHz Band 3) |
Management Features | Omada App, SNMP v1/v2c/v3, SSH, Web-based Management (HTTP/HTTPS), Local/Remote Syslog, Email Alerts, Zero-Touch Provisioning |
Cloud Access | Yes – Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
Centralized Management | Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud-Based Controller |
L3 Management | Yes |
Power Supply | 802.3af/at PoE |
General
- Antennas Quantity2
- Ethernet LAN (RJ-45) ports1
- Networking StandardsIEEE 802.11ax
