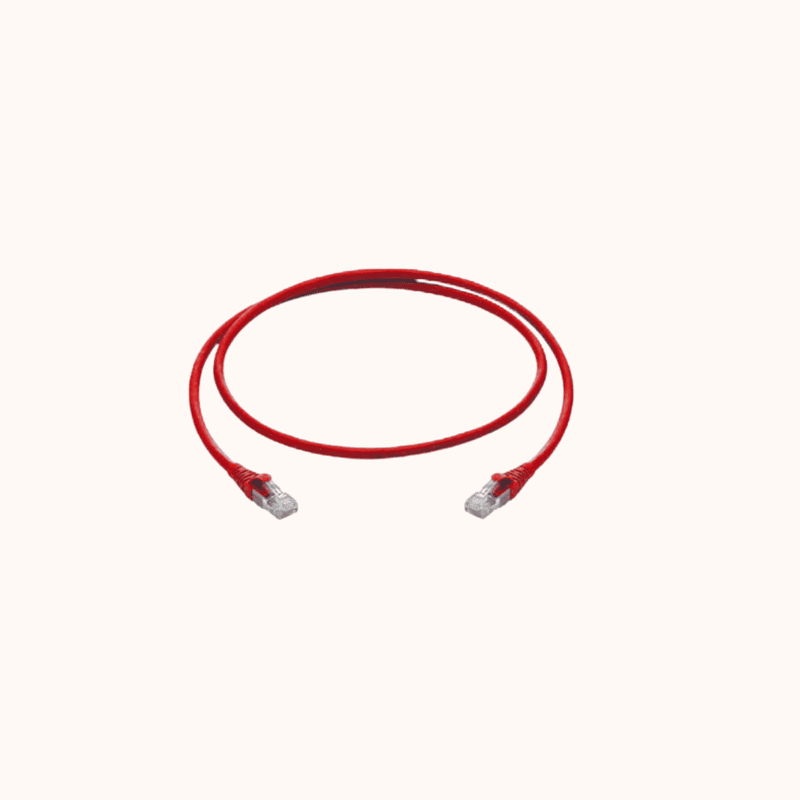

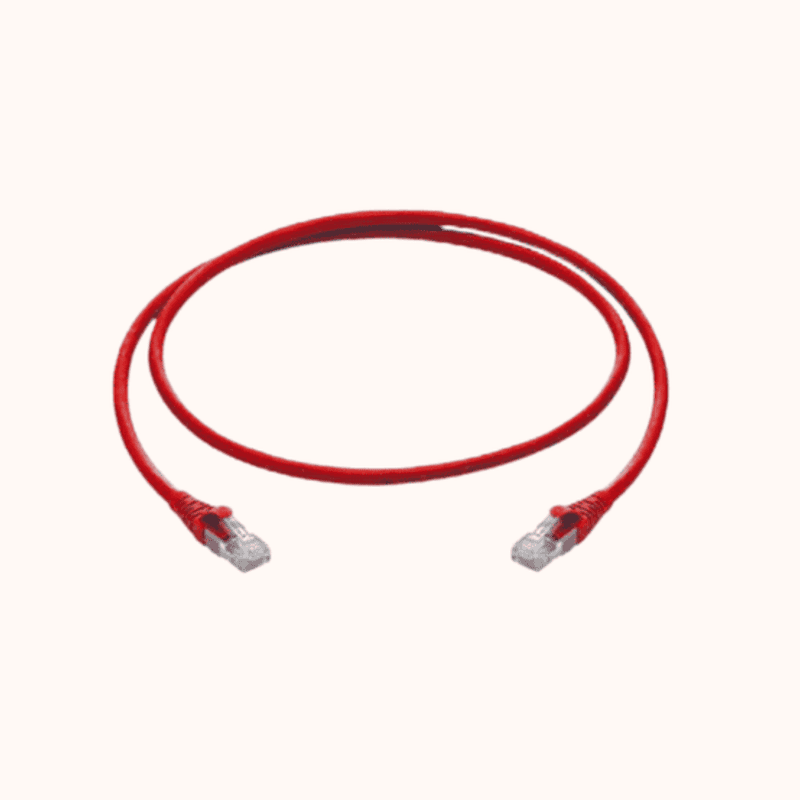

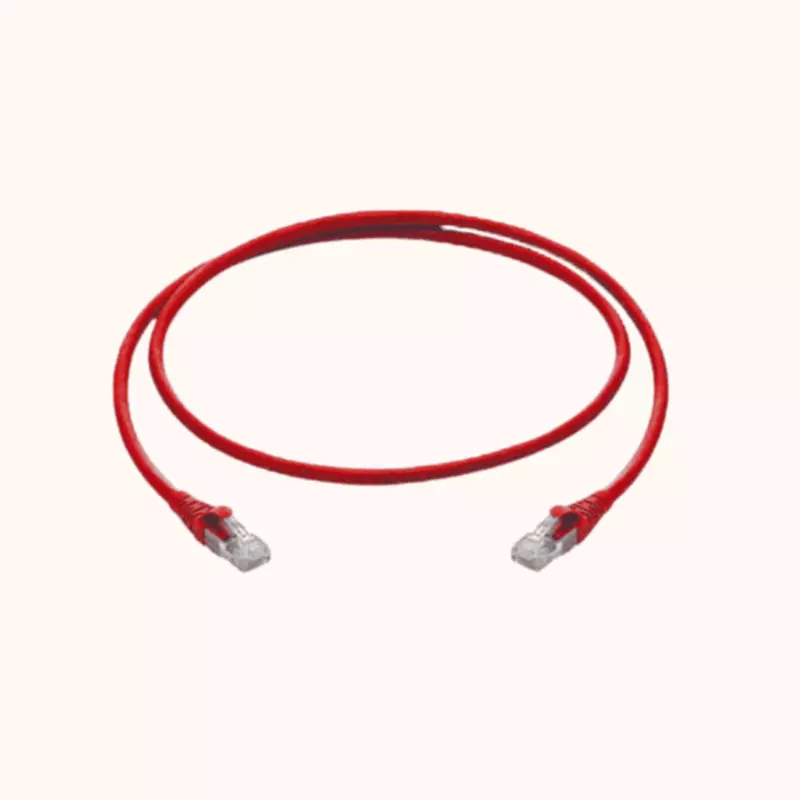

CommScope 3 MTR Cat 6 Patch Cable - Red (NPC06UZDB-RD003M)
Rs. 296.00
Rs. 545.00
Brand: CommScope
Model: NPC06UZDB-RD003M
Type: Cat6 Ethernet Patch Cable
Length: 3 Meter
Color: Red
Model: NPC06UZDB-RD003M
Type: Cat6 Ethernet Patch Cable
Length: 3 Meter
Color: Red
Product Details
Specifications
Product Details
Product Details
| Specification | Details |
|---|---|
| Brand | CommScope |
| Model | NPC06UZDB-RD003M |
| Product Type | Cat6 Ethernet Patch Cable |
| Cable Category | Category 6 (Cat6) |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Connector Type | RJ45 to RJ45 |
| Cable Length | 3 Meter |
| Cable Color | Red |
| Number of Pairs | 4 Pairs |
| Conductor Type | Stranded Copper |
| Wire Gauge | 24 AWG |
| Wiring Standard | T568B |
| Transmission Standard | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Frequency | Up to 250 MHz |
| Maximum Data Rate | Up to 10 Gbps |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Diameter Over Jacket | Approx. 5.97 mm |
| Operating Temperature | -20°C to +60°C |
| PoE Support | Supports IEEE 802.3bt (up to 90W) |
Specifications
Specifications
General
- Ethernet Cable CategoryCat 6
- Connector 1 GenderMale
- Connector 1RJ-45
- Connector 2 GenderMale
- Connector 2RJ-45
- Cable ShapeRound
- Product ColourRed
Size
- Item Length3 m
