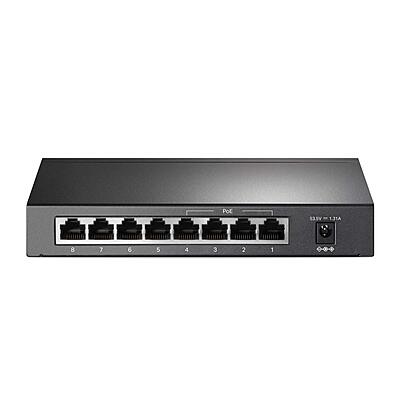

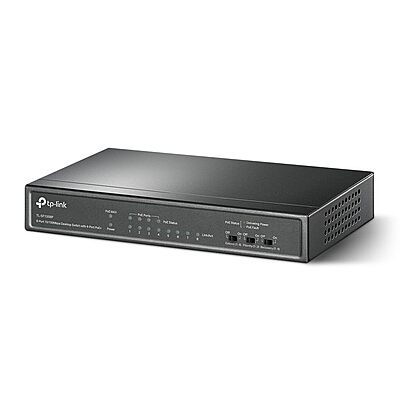

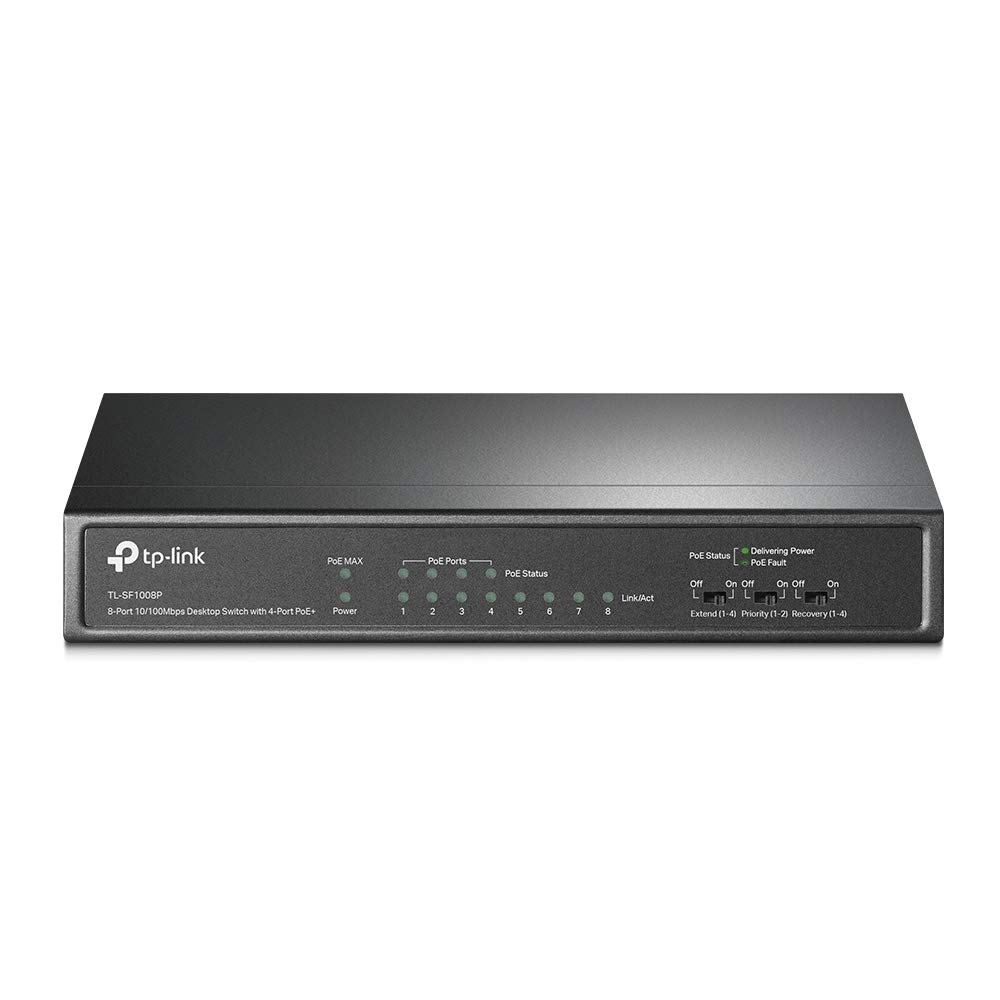

TP-Link 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+( TL-SF1008P)
Feature | Details |
|---|---|
Total Ports | 8 × 10/100 Mbps RJ45 Ports |
PoE+ Ports | 4 × PoE+ ports (data and power on individual cables) |
PoE Compliance | Works with IEEE 802.3af/at compliant PDs |
PoE Power per Port | Up to 30 W for each PoE port |

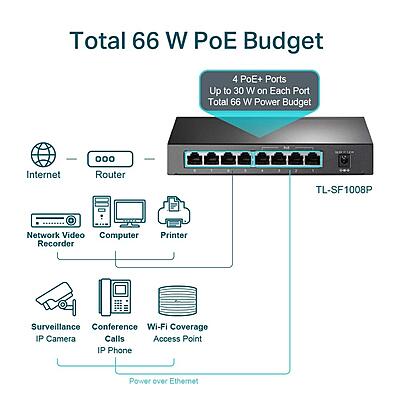

Total PoE Power | Up to 66 W for all PoE ports |
Extend Mode | Up to 250m data & power transmission range |
Priority Mode | Ensures high priority for ports 1–2 (for sensitive applications) |
PoE Auto Recovery | Automatically reboots dropped or unresponsive PD devices |
Design | Fanless (silent and low power consumption) |
Category | Details |
|---|---|
Interface | • 8× 10/100 Mbps RJ45 Ports |
Network Media | • 10BASE-T: UTP Cat 3/4/5 (max 100m) |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (53.5V DC / 1.31A) |
Packet Forwarding Rate | 1.1904 Mpps |
PoE Ports (RJ45) | • Standard: IEEE 802.3af/at compliant |
MAC Address Table | 2K entries |
Jumbo Frame | 2 KB |
Switching Capacity | 1.6 Gbps |
Dimensions (W × D × H) | 171 × 98 × 27 mm (6.7 × 3.9 × 1.1 in) |
Max Power Consumption | • 2.27 W (no PD connected) |
Max Heat Dissipation | • 7.74 BTU/h (no PD connected) |
General
- TypesUnManaged
- Switching Capacity1.6 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports4
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
- Rack MountingNo
