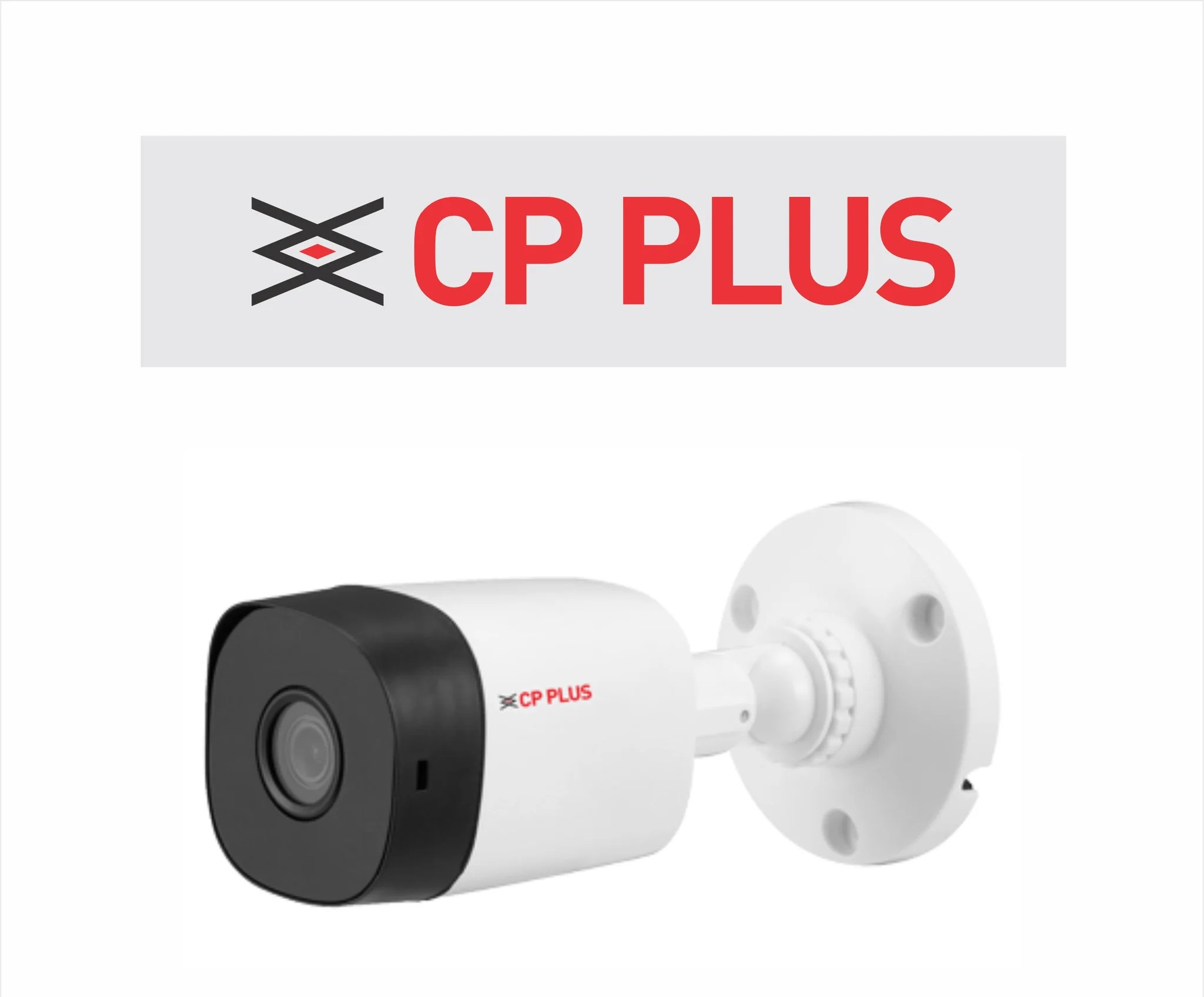

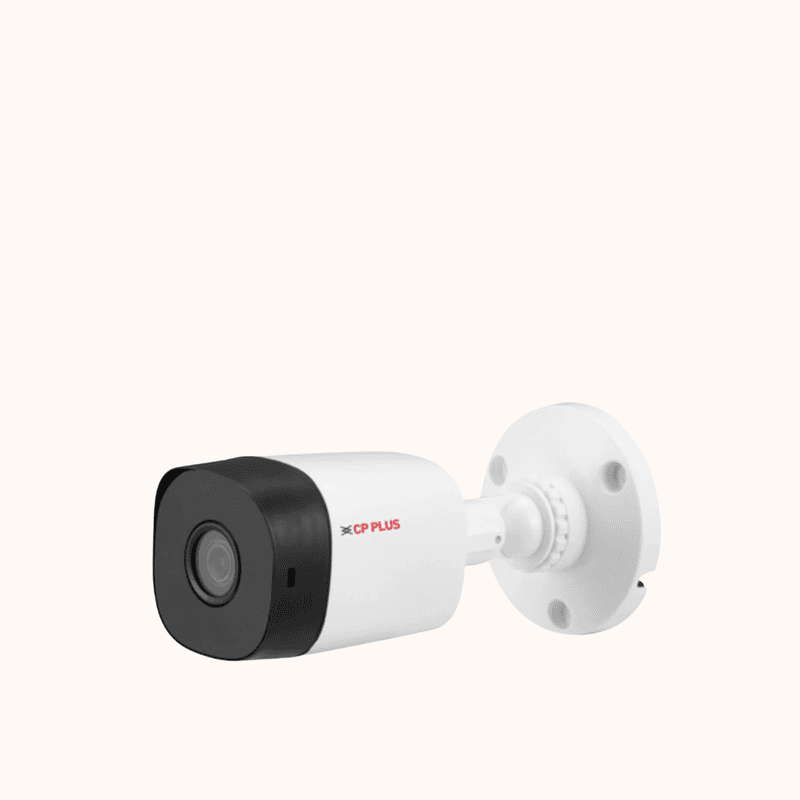

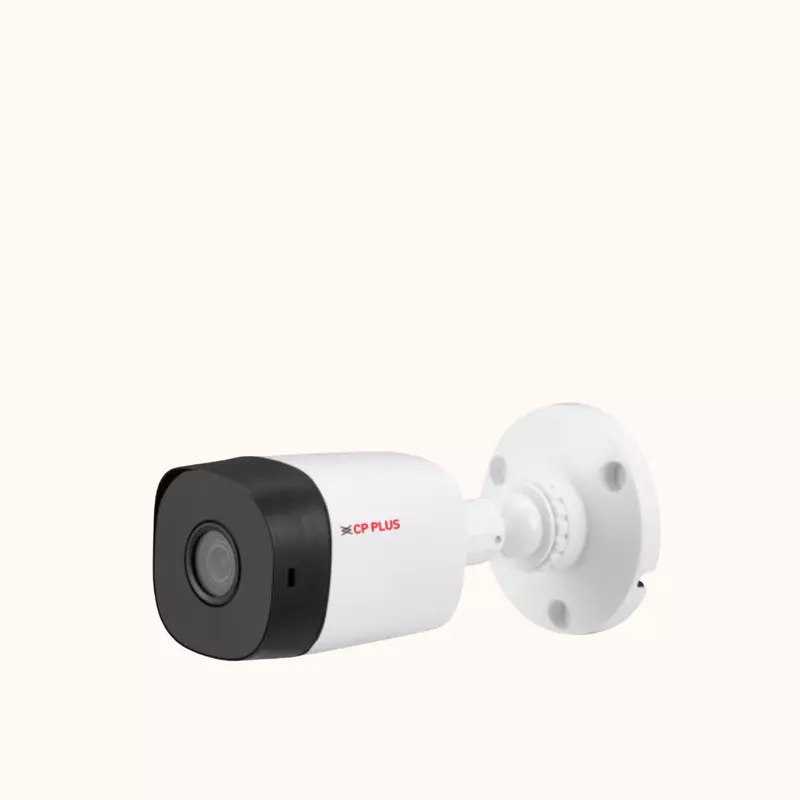

CP PLUS 5MP IR Bullet Camera Audio (CP-USC-TC51PL2C)

Image Sensor

1/2.7” 5MP CMOS (0.9407 cm)

Minimum Illumination

0.02 Lux/F2.0, 30IRE, 0 Lux IR on

Shutter Speed

PAL: 1/25s–1/100000s; NTSC: 1/30s–1/100000s

White Balance

Auto / Manual

Gain Control (AGC)

Auto / Manual

ICR

Auto (ICR) / Manual

Max. Aperture

F2.0

Lens

3.6mm (2.8mm optional)

Iris

Fixed Lens / Fixed Iris

Close Focus Distance

2.8mm: 0.8m, 3.6mm: 1.2m

Mount Type

M12

S/N Ratio

More than 65dB

Privacy Masking

Off / On (8 area, rectangle)

Audio

Built-in Microphone

DORI Distance

2.8mm: 56.0m (Detect), 22.4m (Observe), 11.2m (Recognize), 5.6m (Identify); 3.6mm: 80.0m (Detect), 32m (Observe), 16m (Recognize), 8m (Identify)

Back Light Compensation

BLC / HLC / DWDR

Video Streaming

CVI: PAL: 5MP @ 25fps, 4MP @ 25fps, 1080P @ 25fps; NTSC: 5MP @ 25fps, 4MP @ 30fps, 1080P @ 30fps; AHD: PAL: 4MP @ 25fps, NTSC: 4MP @ 30fps; TVI: PAL: 4MP @ 25fps, NTSC: 4MP @ 30fps; CVBS: 960H

Video Output

CVI/TVI/AHD/CVBS (by one BNC port)

Angle of View

3.6mm: 104° × 88° × 46° (D × H × V); 2.8mm: 125° × 106° × 56° (D × H × V)

IR Range

20 Metres, Smart IR

OSD

Multi-language

Casing

Plastic

Operating Temperature

-40°C ~ +60°C (-40°F ~ +140°F), Less than 95% RH

Power Source

12V DC ±30%

Power Consumption

Max 3.7W (12V DC, IR on)

Weatherproof Standard

IP67

Dimensions

69.8 mm × 69.8 mm × 149.3 mm

Weight

0.15 kg
