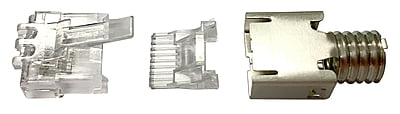

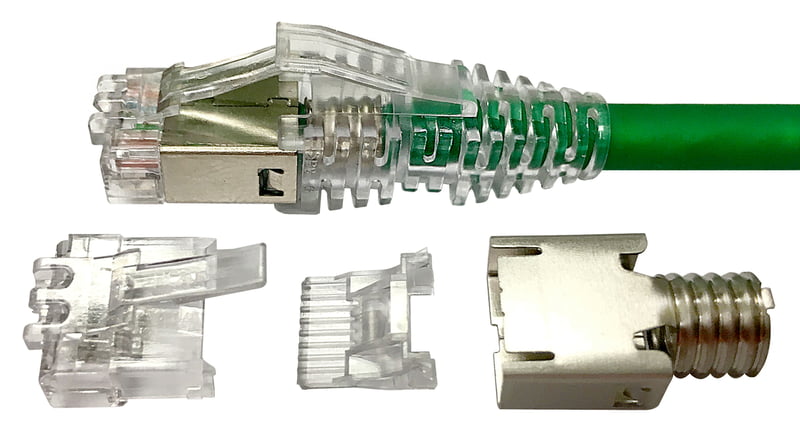

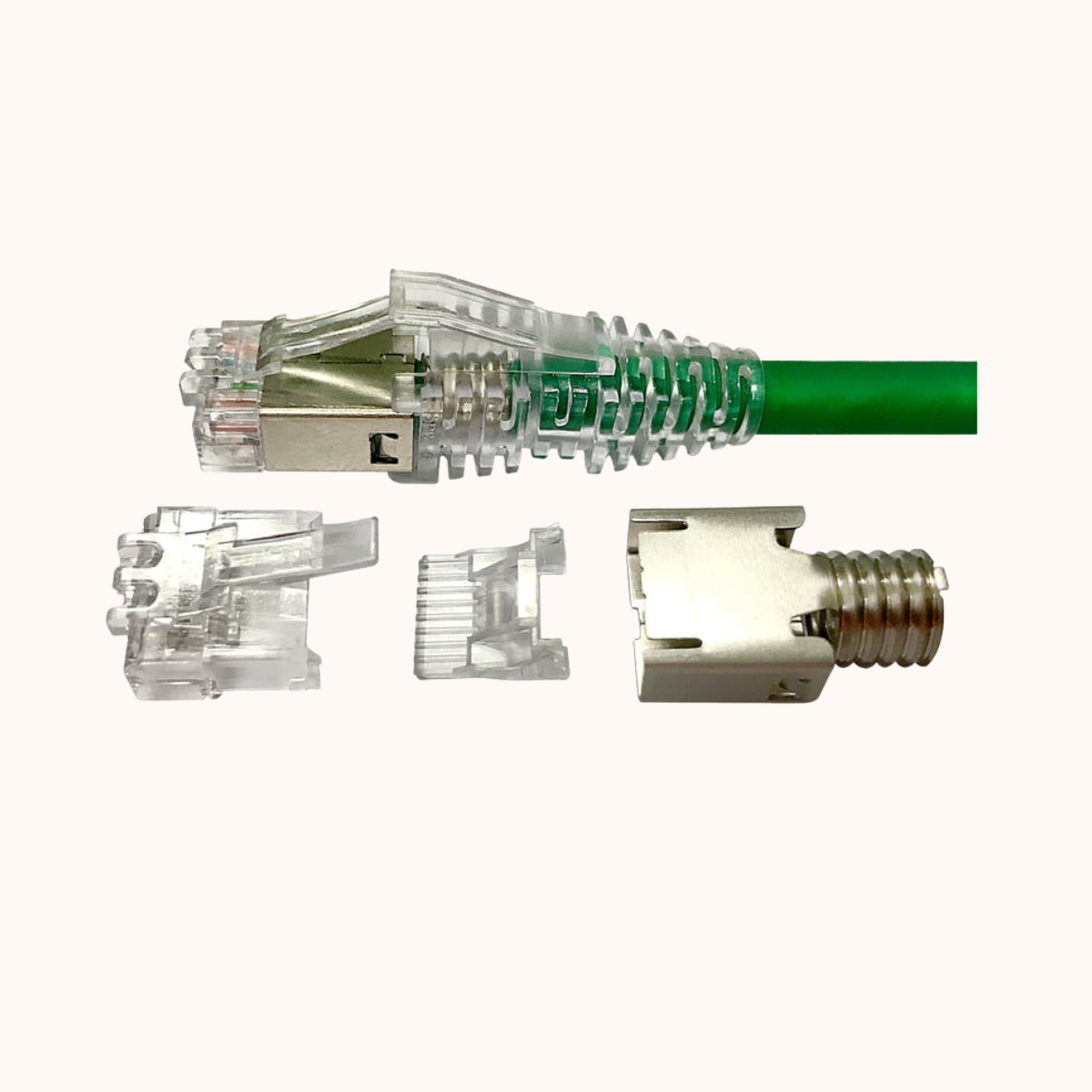

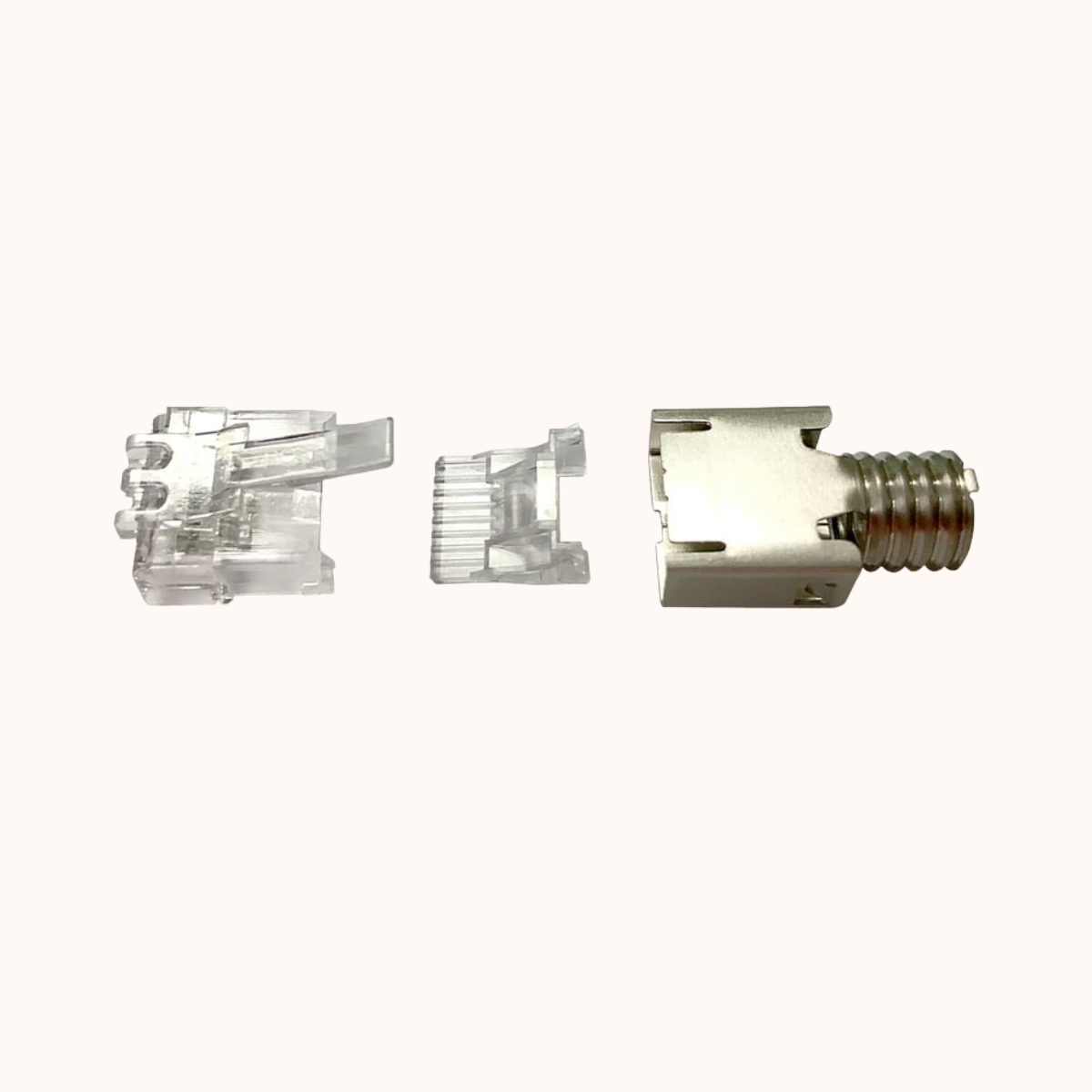

CommScope AMP Cat 6A Connector- 6-2111984-3
Product: CommScope AMP Cat6A Connector
Model Number: 6-2111984-3Category: Cat6AType: RJ45 Connector
Product Details
Specifications
Product Classification
Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Portfolio | CommScope® |
Product Type | Modular plug |
General SpecificationsANSI/TIA Category | 6A |
Cable Type | Round, shielded |
Conductor Type | Solid | Stranded |
Interface | RJ45 |
Positions/Loaded Contacts | 8/8 |
Termination Type | IDC |
DimensionsCompatible Cable Diameter, maximum | 7 mm | 0.276 in |
Compatible Cable Diameter, minimum | 5.7 mm | 0.224 in |
Compatible Insulated Conductor Diameter, maximum | 1.09 mm | 0.043 in |
Compatible Insulated Conductor Diameter, minimum | 0.89 mm | 0.035 in |
Contact Plating Thickness | 1.27 µm |
Compatible Conductor Gauge, solid | 26–23 AWG |
Compatible Conductor Gauge, stranded | 26–23 AWG |
Electrical SpecificationsInsulation Resistance, minimum | 500 mOhm |
General
UTP Cables Types
Cat 6A
Patch Cord Cable Type
Straight-Through Cable
HDMI Connector Type
RJ45
Product Colour
Green
