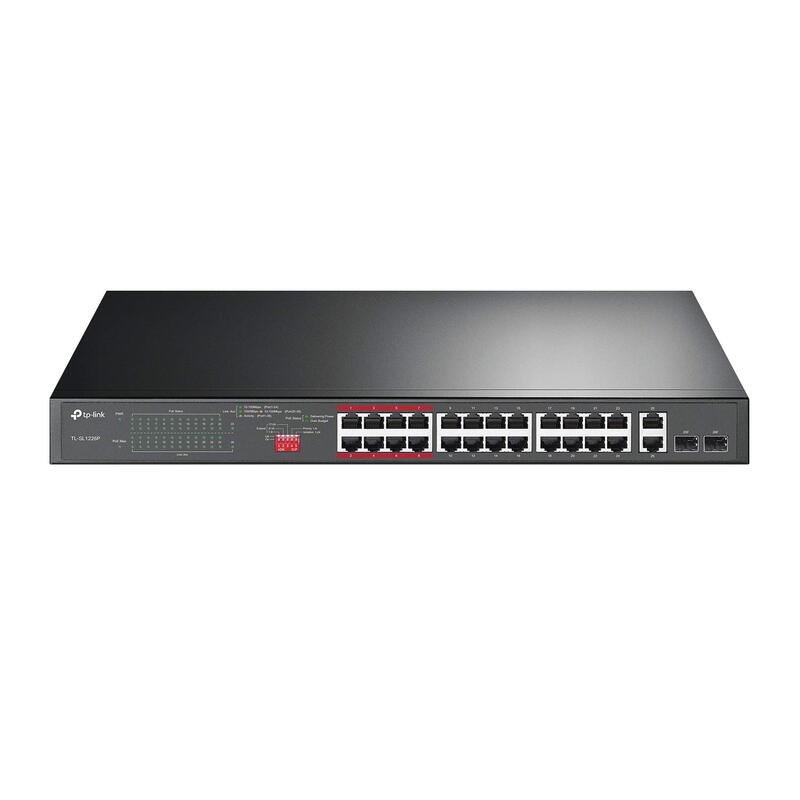

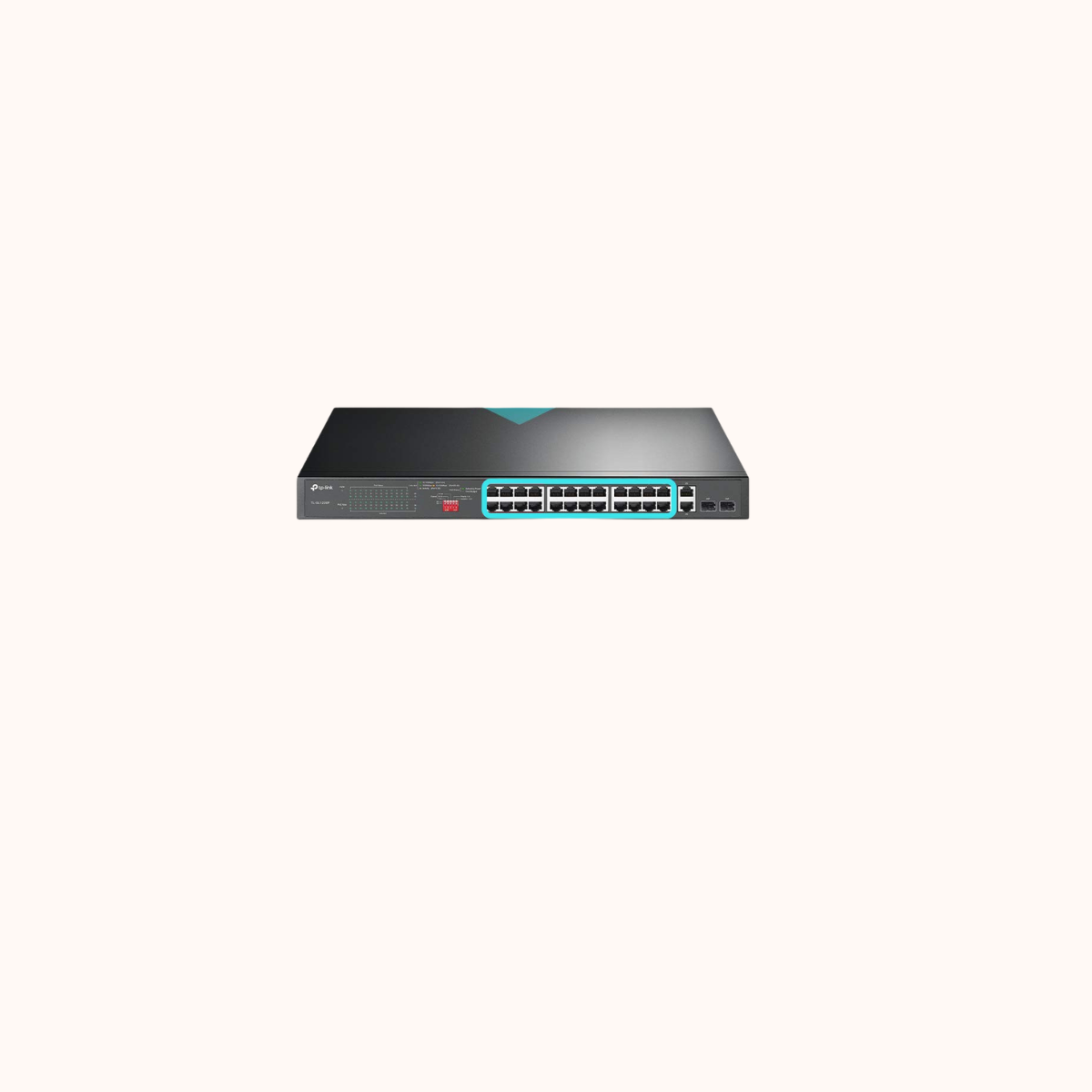

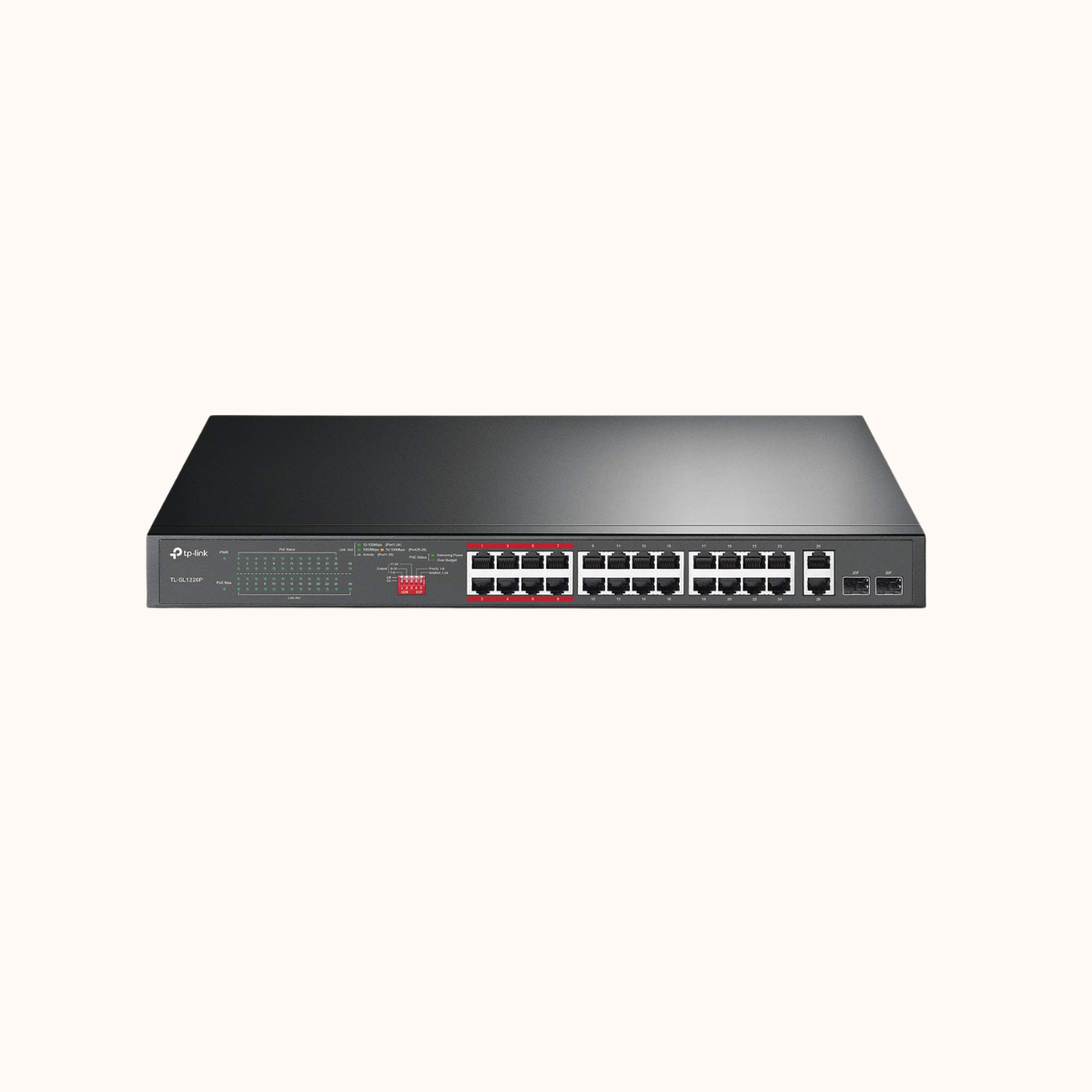

TP-Link 24 Port Fast Ethernet PoE Switch | 24 PoE+ Ports (TL-SL1226P)
Ports: 24 Fast Ethernet PoE+ ports and 2 Gigabit uplink ports.

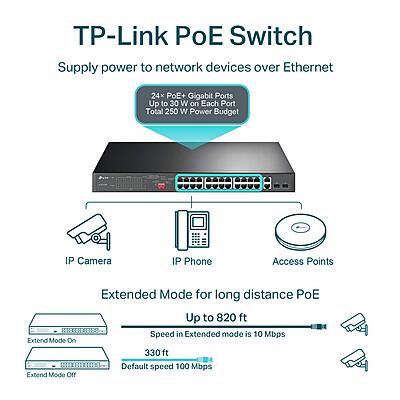

PoE Power Budget: Up to 250W to power IP cameras, VoIP phones, and access points.
PoE Standard: Supports IEEE 802.3af/at with auto-detect for connected devices.
Bandwidth: 8.8 Gbps switching capacity for seamless data transfer.
Design: Fanless, rack-mountable, with overload protection for silent, reliable operation.
Feature | Description |
|---|---|
Model | TP-Link TL-SL1226P |
Switch Type | Unmanaged Fast Ethernet Switch |
Ports | 24 x 10/100 Mbps PoE+ Ports, 2x Gigabit Uplink Ports |
PoE Support | PoE+ (Power over Ethernet Plus) |
PoE Standard | IEEE 802.3af/at |
PoE Power Budget | Up to 250W for connected PoE devices |
PoE Features | Auto-detect and supply power to connected PoE devices |
Total Bandwidth | 8.8 Gbps |
Mounting | Desktop or rack-mountable |
Power Supply | Internal power supply |
Power Protection | Overload protection and fanless design for silent operation |
Operating Temperature | 0°C to 40°C |
LED Indicators | Power, Link/Act, and PoE status |
Dimensions | 440 x 180 x 44 mm |
Weight | 2.8 kg (approx.) |

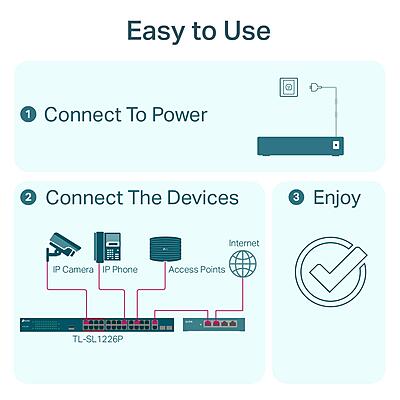

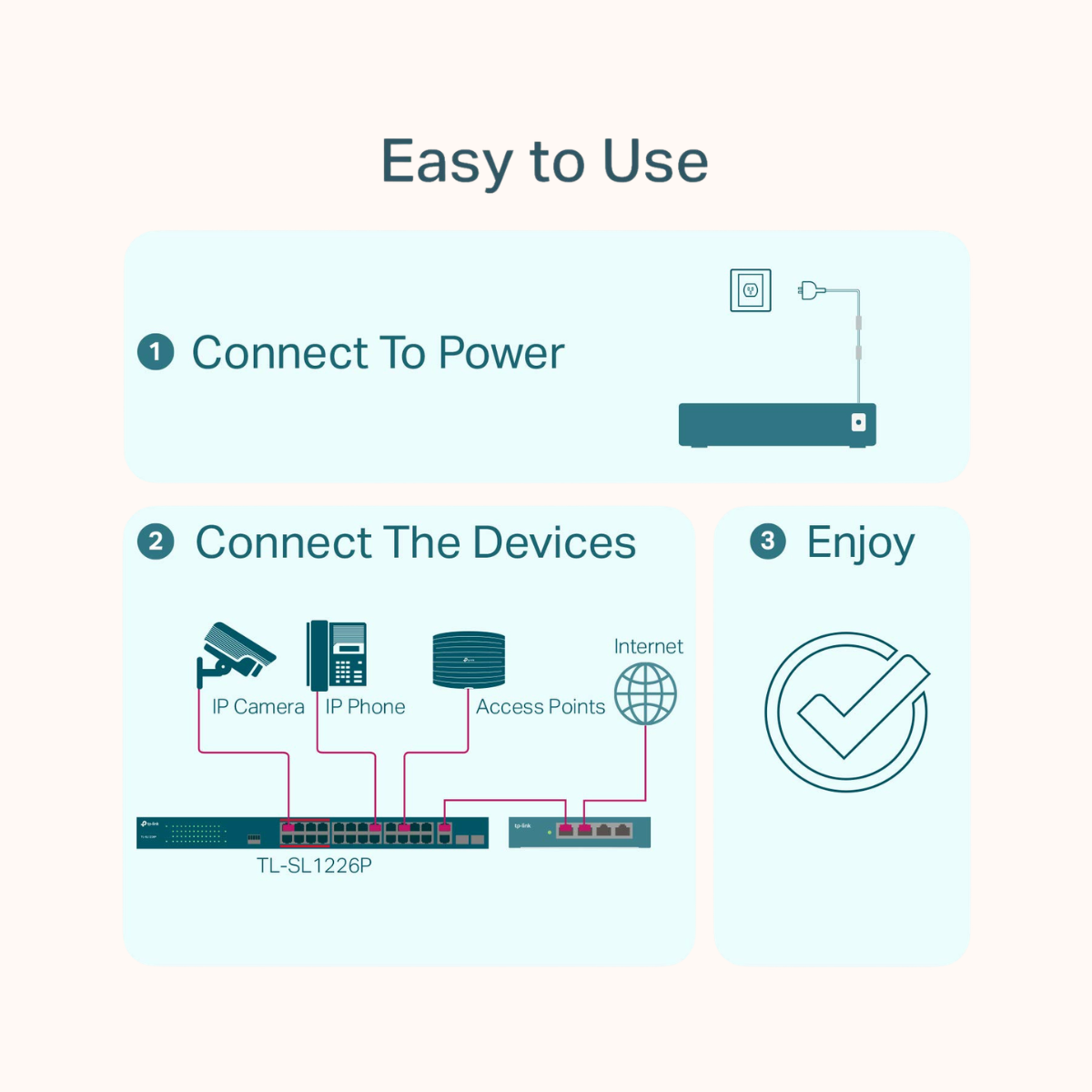

Compatibility | Supports various PoE devices like IP cameras, VoIP phones, and access points |
Ideal For | Small to medium-sized businesses, surveillance, and enterprise networking |
Warranty | Manufacturer warranty as per TP-Link’s policy |
General
- TypesUnManaged
- Switching Capacity5.2 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports24
- No. Of SFP Ports2
- No. Of RJ45 Ports24
- No. Of Power Supplies Supported1
- Rack MountingYes
