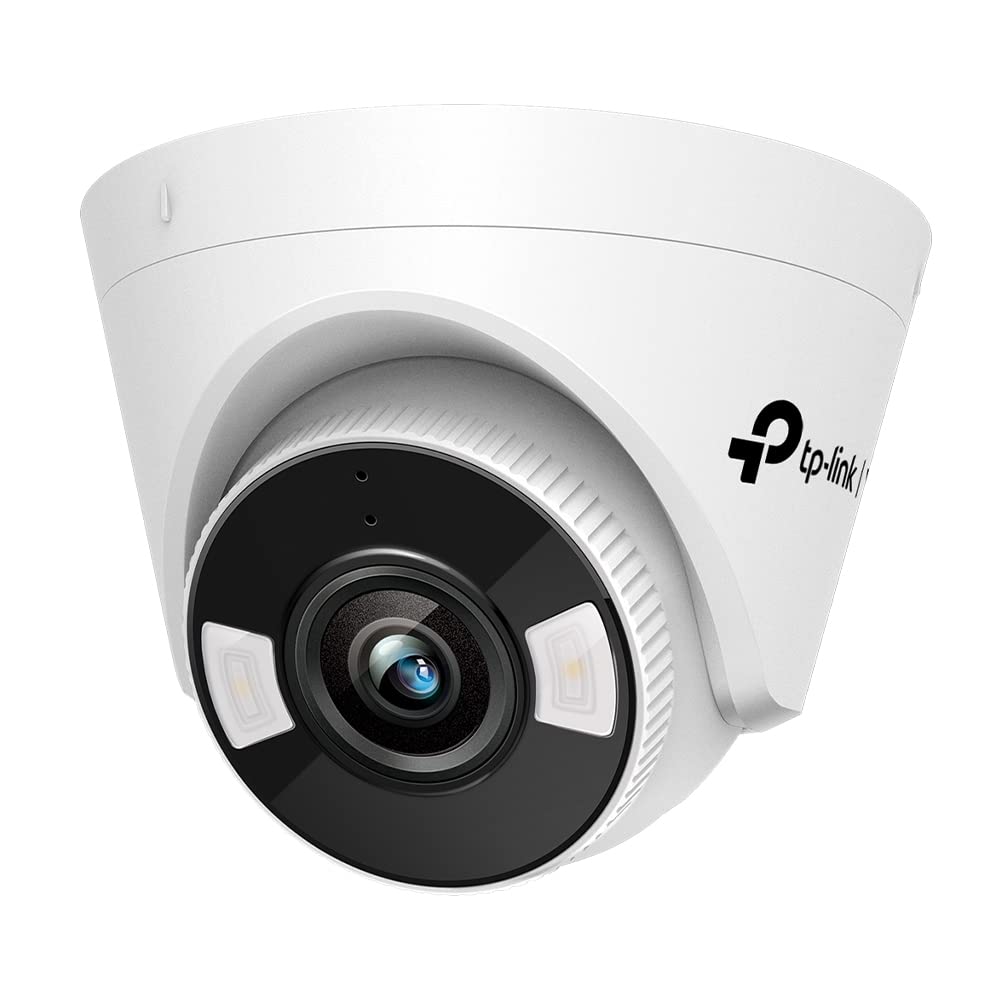

TP-Link VIGI (4mm) 3MP Full-Color Turret Network Camera-C430
Recommended Uses For Product | Baby Monitoring, Indoor Security |
Brand | TP-Link |
Connectivity Technology | Wired |

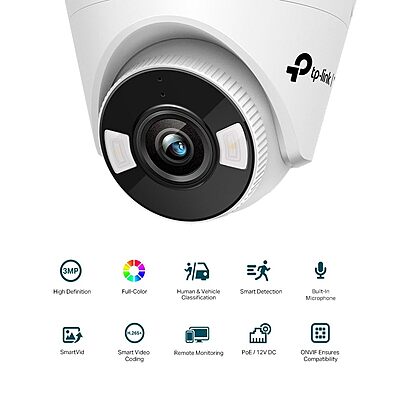

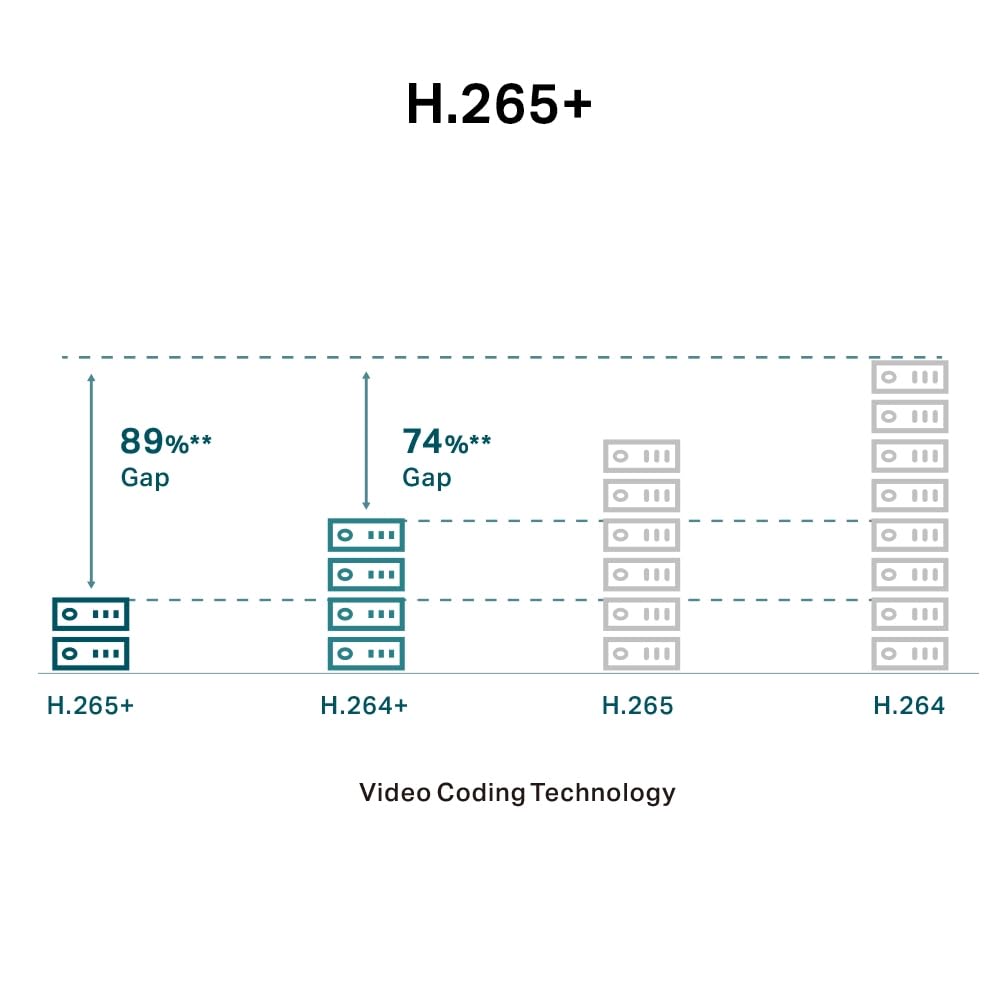

Special Feature | HD Resolution, Night Vision, 24h Full-Color, H.265+, Motion Sensor |
Indoor/Outdoor Usage | Indoor |
Compatible Devices | Windows, OS |
Power Source | Corded Electric |
Connectivity Protocol | Ethernet, ONVIF |
Controller Type | Android |
Mounting Type | Wall Mount |
Category | Specification |
|---|---|
Image Sensor | 1/2.8” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10,000 s |
Slow Shutter | Yes |
Aperture | 2.8 mm: F1.6, 4 mm: F1.6 |
Lens | 2.8 mm / 4 mm (Fixed focal lens) |
Lens Mount | M12 |
Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Digital Noise Reduction | 3D DNR |
WDR | DWDR (Digital Wide Dynamic Range) |
IR Working Distance | 30 m |
Viewing Angle (2.8 mm) | Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7° |
Viewing Angle (4 mm) | Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9° |
DORI Distance
Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
2.8 mm | 52 m (170 ft) | 22 m (71 ft) | 10 m (34 ft) | 5 m (17 ft) |
4 mm | 70 m (230 ft) | 29 m (96 ft) | 14 m (46 ft) | 7 m (23 ft) |
Illuminator
IR LEDs | 2 LEDs, 850 nm wavelength, 30m range |
|---|---|
White LEDs | 2 LEDs, 30m range |
Control Options | Auto / Scheduled / Always On / Always Off |
Video
| Max. Resolution | 2304 × 1296 (3MP)
General
- Placement SupportedIndoor
- Case TypeTurret
- Megapixel (Approx.)3 MP
- Mounting TypeWall
- AudioBuilt-ln Microphone
- Connectivity TechnologyWired
- Video Motion DetectionYes

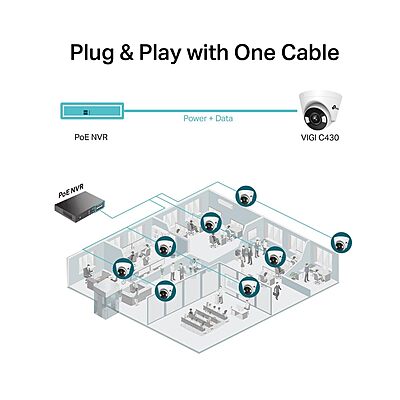

- Power Over EthernetYes
