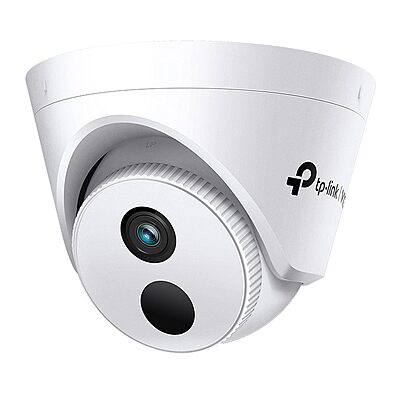

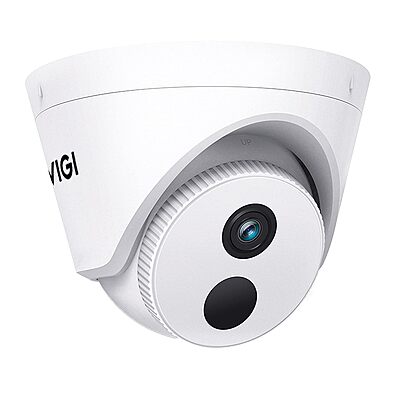

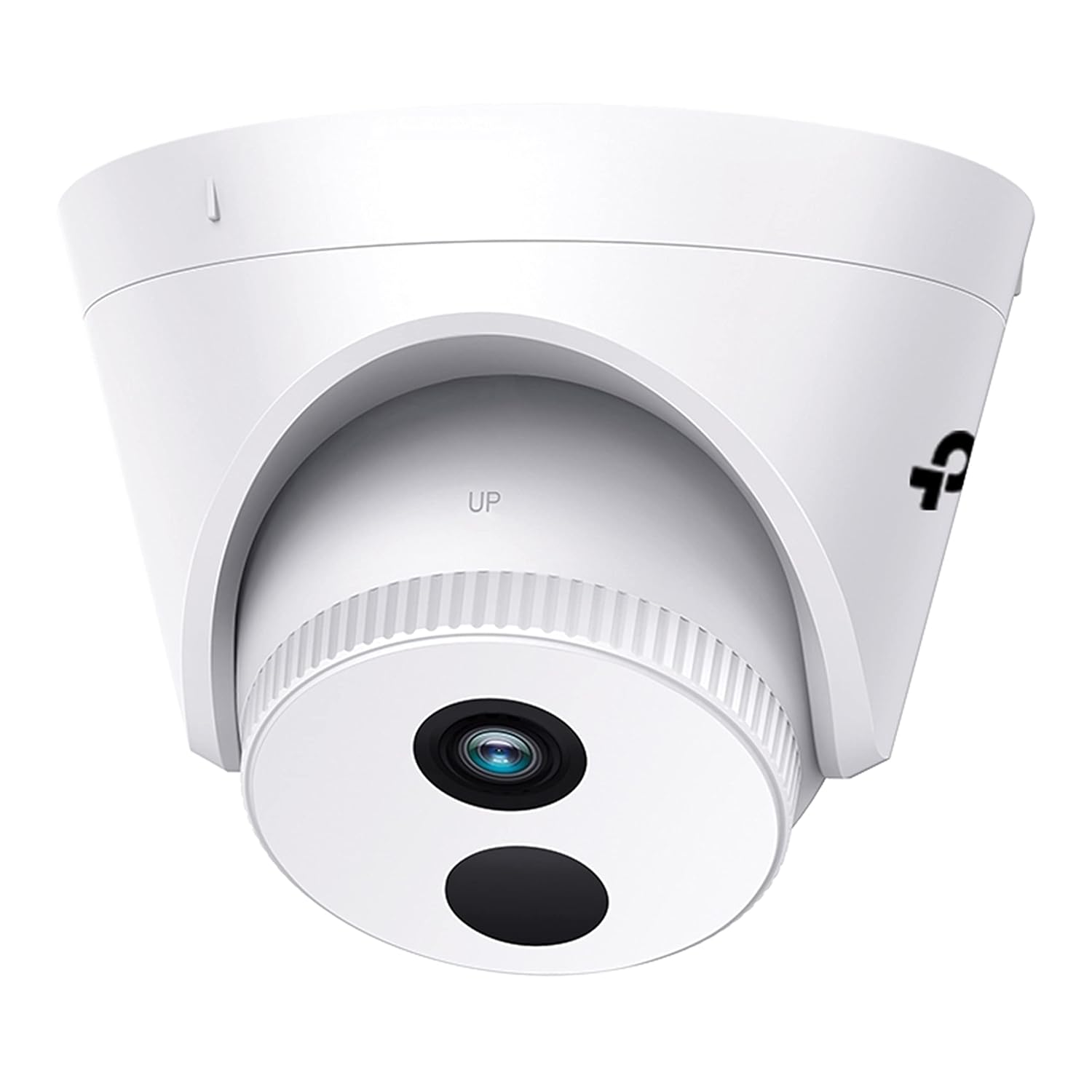

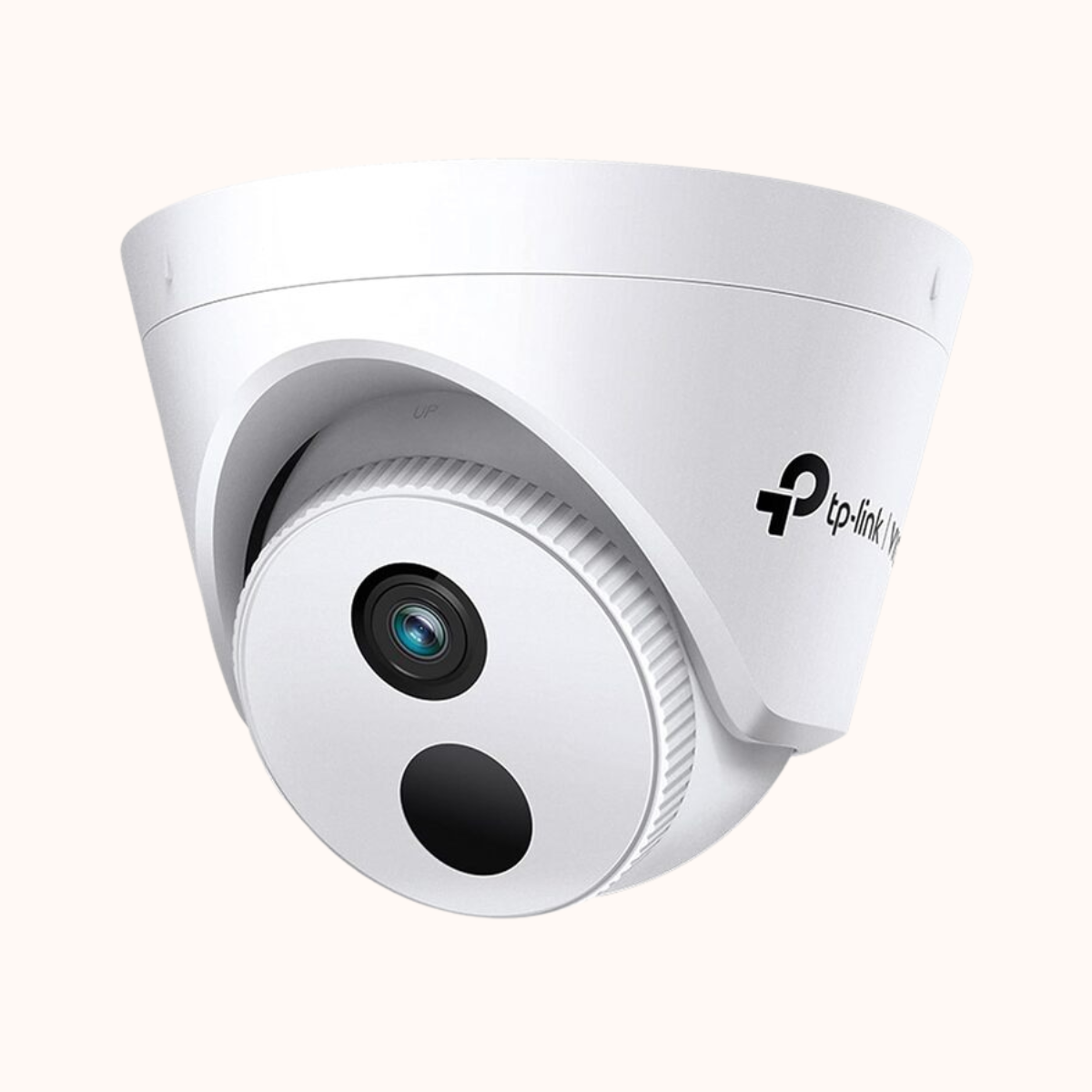

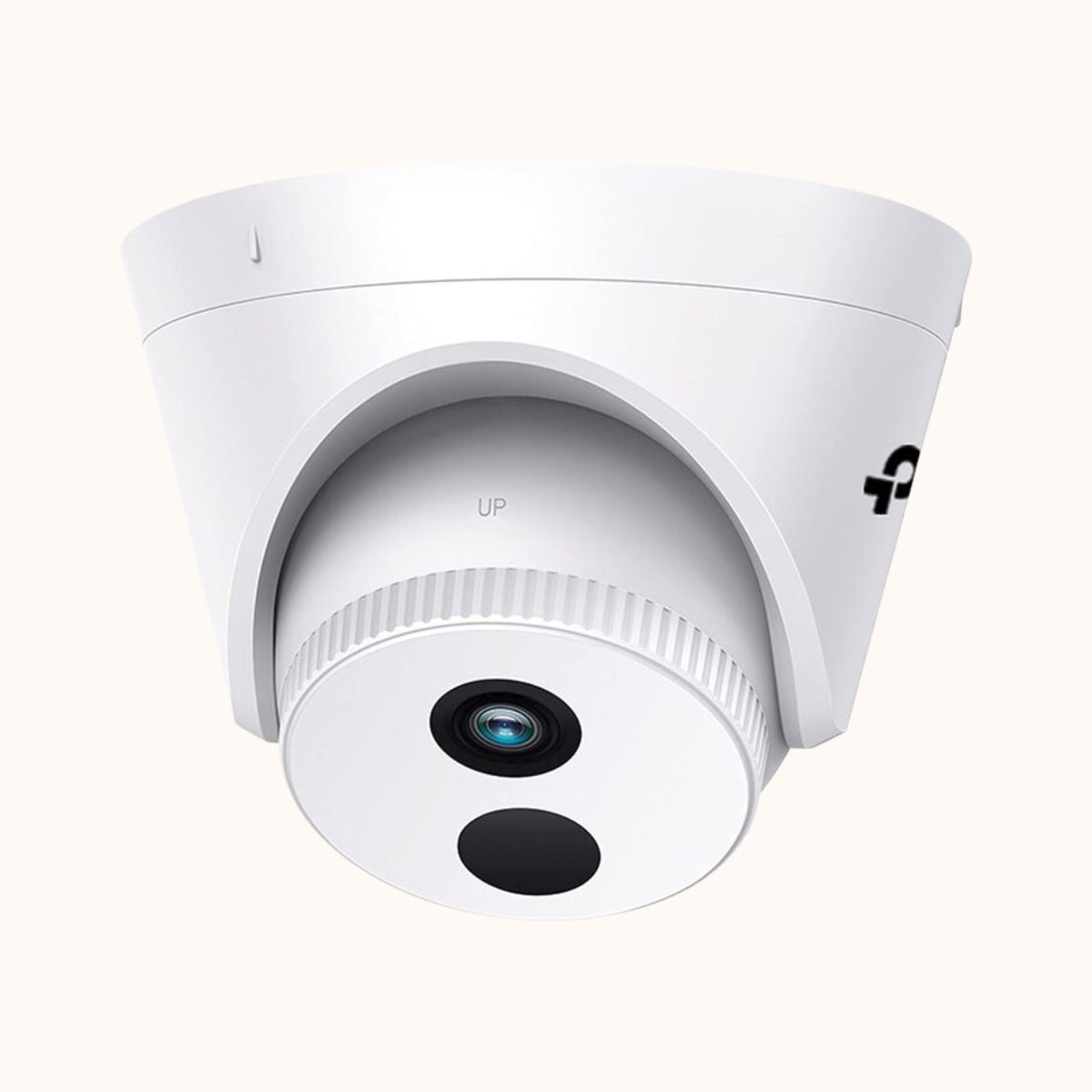

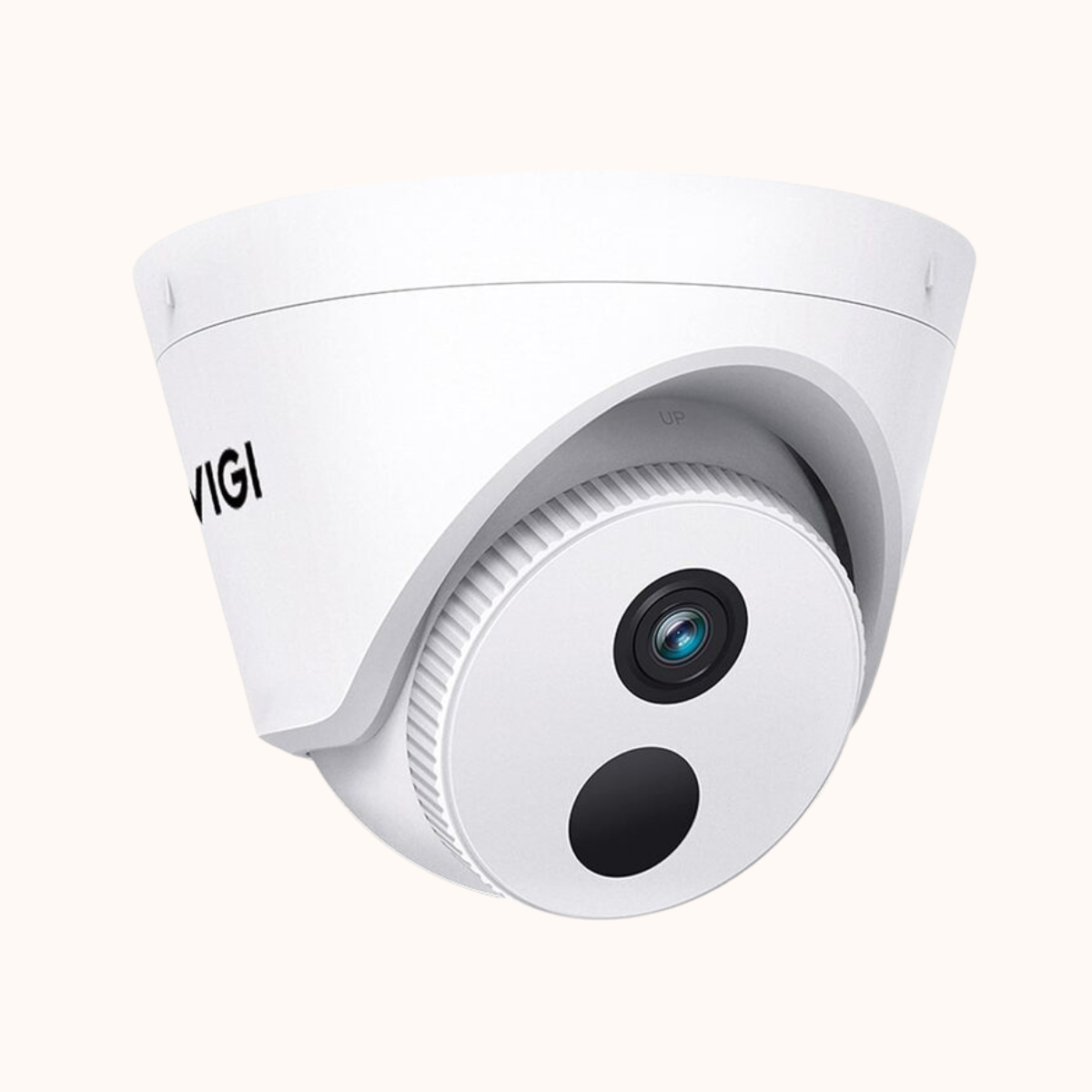

TP-Link VIGI (4mm) 3MP Turret Network Camera-C400HP V1

Image Sensor

1/2.7” Progressive Scan CMOS

Aperture

4 mm: F2.2, 2.8 mm: F2.2

Lens

4 mm / 2.8 mm

Lens Mount

M12

Minimum Illumination

Color: 0.1 Lux@F2.0; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

DWDR

IR Working Distance

30m

Viewing Angle

(4 mm) Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°
(2.8 mm) Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°

Pan/Tilt Range

Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Network Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Button

-

Video Output

-

Weight

195 g

Package Content

VIGI Network Camera, Quick Start Guide, Screws and Anchors, Mounting Template

Dimensions (H x W x D)

123 × 123 × 83 mm

Material

Plastic

Power Requirements

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

Max. Power Consumption

12V DC: Max 2.4W, PoE: Max 3W

Certifications

CE, FCC, RCM, BSMI, VCCI, RoHS

Video Compression

Main Stream: H.265/H.264
Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement

BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate

64 Kbps to 6 Mbps

Smart Event

Area Intrusion Detection, Line-Crossing Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception (illegal login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region
