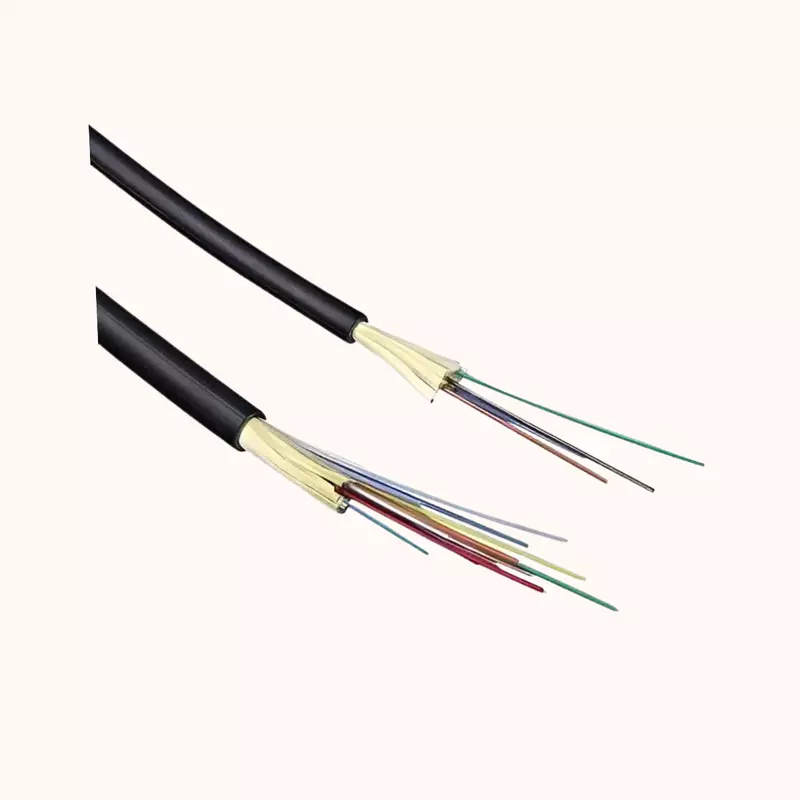

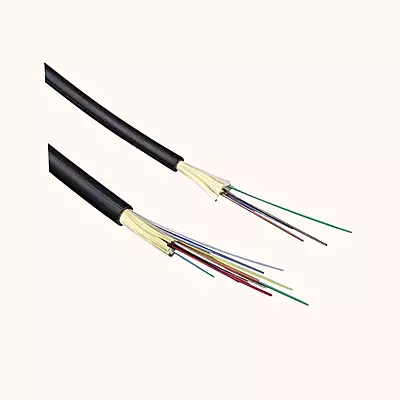

D-Link 6 Core MM OM2 Fiber (NCB-FM50O-AUHD-06)
6-Core: 6 fiber optic cores for high-capacity data transmission
Multimode (MM): OM2 grade fiber for reliable and efficient signal transfer over medium distances
OM2 Standard: Ideal for networks requiring 1Gbps or 10Gbps speeds over moderate distances
Durable & High-Quality: Designed for high-performance and long-lasting use in network infrastructure
Feature | Description |
|---|---|
Model | D-Link NCB-FM50O-AUHD-06 |
Fiber Type | Multi-Mode OM2 Fiber |
Core Count | 6 Cores |
Connector Type | LC Duplex Fiber Optic Connectors |
Fiber Mode | OM2 (Optical Multimode 2) – suitable for high-speed data transmission over short distances (up to 550 meters at 1Gbps) |
Cable Standard | Meets TIA/EIA-568-C.3 standard for fiber optic cabling |
Core Diameter | 50/125 µm (microns) |
Operating Wavelength | 850nm (for OM2 multimode fiber) |
Maximum Distance (At 1Gbps) | Up to 550 meters |
Maximum Distance (At 10Gbps) | Up to 82 meters |
Construction | - LSZH (Low Smoke Zero Halogen) Jacket for fire safety - Provides high durability with an emphasis on flexibility and resilience against environmental conditions |
Applications | Ideal for data centers, telecom networks, enterprise networks, and fiber-to-the-desk (FTTD) installations |
Weight | Approximately 0.2 kg (0.44 lbs) |
Dimensions | 6.0mm Outer Diameter (typical) |
Environmental Resistance | - Operating Temperature Range: -10°C to 70°C (14°F to 158°F) - Storage Temperature Range: -30°C to 70°C (-22°F to 158°F) |
Fire Rating | LSZH (Low Smoke Zero Halogen) – Complies with fire safety standards, reducing smoke in the event of fire |
Jacket Material | High-quality polyethylene (PE) or LSZH (Low Smoke Zero Halogen) |
Connector End Type | Both ends are LC Duplex connectors for secure and reliable fiber optic connections |
Compliance | - RoHS Compliant - CE Certified - Meets TIA/EIA-568-C.3 standards for fiber optic cables |
Durability | Designed for high-performance, long-term usage, with high resilience to external environmental factors (e.g., humidity, temperature) |
Warranty | 1-Year Limited Warranty |
Additional Features | - Low loss fiber optic cable for high-speed and high-bandwidth connectivity - Flexible and durable design for easy installation - Ideal for enterprise network deployment |
