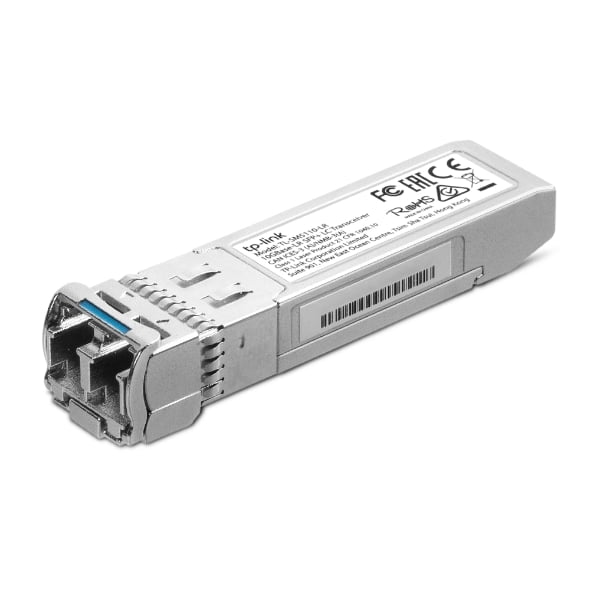

TP LINK | 10GBase-LR SFP+ LC Transceiver | TL-SM5110-LR
10GBase-LR: Supports 10Gbps data transfer over long-range fiber optic connections (up to 10 km)
SFP+ Form Factor: Small Form-factor Pluggable Plus (SFP+) module for easy installation in compatible devices
LC Connector: Uses LC duplex connectors for reliable and efficient fiber optic connectivity
Long-Range Connectivity: Ideal for connecting network devices over longer distances in enterprise and data center environments
Feature | Description |
|---|---|
Model | TP-Link TL-SM5110-LR |
Type | 10GBase-LR SFP+ LC Transceiver |
Data Rate | 10Gbps |
Connector Type | LC (Lucent Connector) |
Fiber Type | Single-mode Fiber (SMF) |
Wavelength | 1310 nm |
Transmission Distance | Up to 10 kilometers (10 km) |
Compatibility | Fully compatible with SFP+ ports on supported switches and network devices (TP-Link and other compatible brands) |
Standards | - IEEE 802.3ae (10GBase-LR) - SFP+ standard |
Operating Temperature | 0°C to 70°C (ambient temperature) |
Power Consumption | < 1W |
Transmitter | 1550 nm for high-performance transmission |
Receiver Sensitivity | - <-14 dBm |
Insertion Loss | < 5 dB |
Features | - Supports 10G Ethernet for long-distance data transmission - Hot-swappable for easy installation and maintenance - Low power consumption |
Fiber Cable Compatibility | - Single-mode fiber (SMF) cables - Compatible with LC duplex connectors |
Application | - Data Centers - Enterprise Networks - High-Speed Backbone Links - Long-distance Data Transmission for switches, routers, and other networking equipment |
Dimensions (L x W x H) | 55.0 x 13.4 x 8.5 mm |
Weight | < 30g |
Warranty | 1-Year Limited Warranty |
The TP-Link TL-SM5110-LR is a high-performance 10GBase-LR SFP+ LC Transceiver designed for long-distance data transmission over single-mode fiber (SMF) with a 10 km range. It operates at a 10 Gbps data rate, making it suitable for high-speed networking applications like data centers, enterprise networks, and long-distance Ethernet backbone connections. With a 1310 nm wavelength and LC connectors, it ensures reliable performance and is fully compatible with SFP+ ports on supported devices. This transceiver is energy-efficient, operating with low power consumption (<1W), and features hot-swappable functionality for seamless integration.
