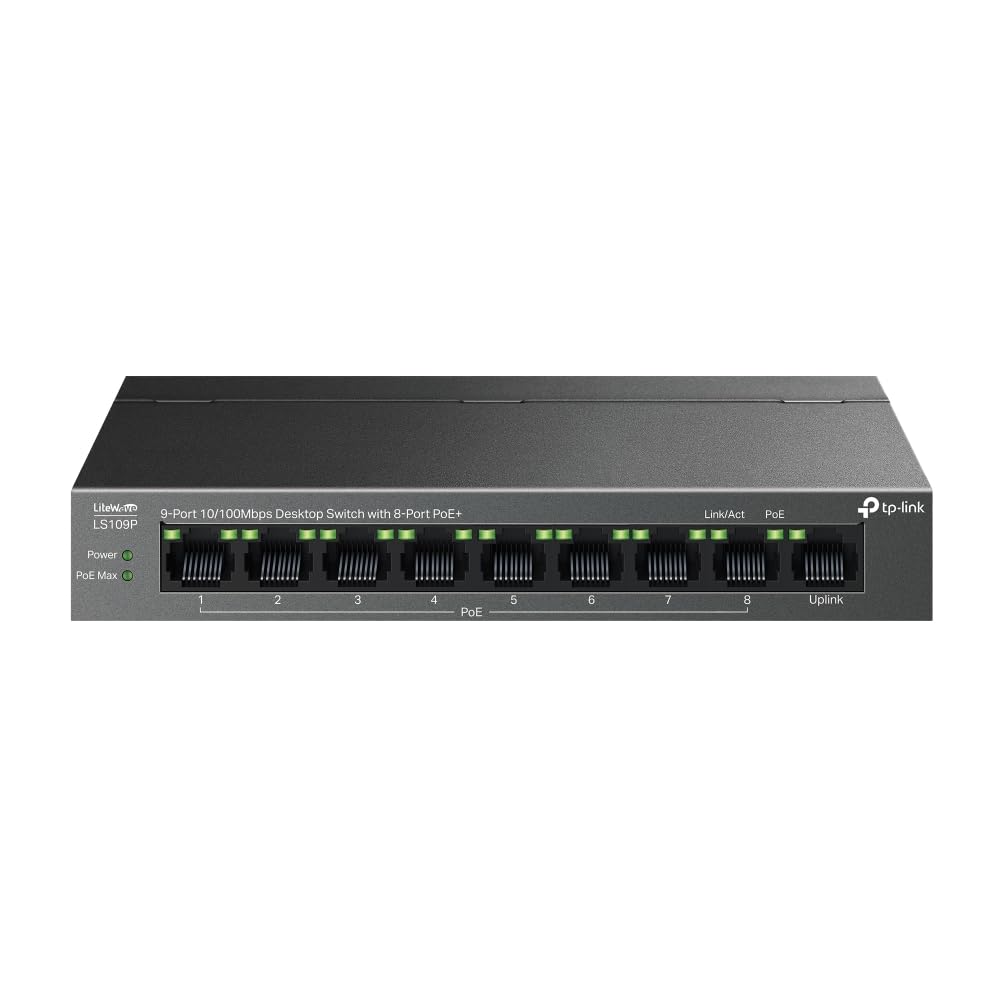

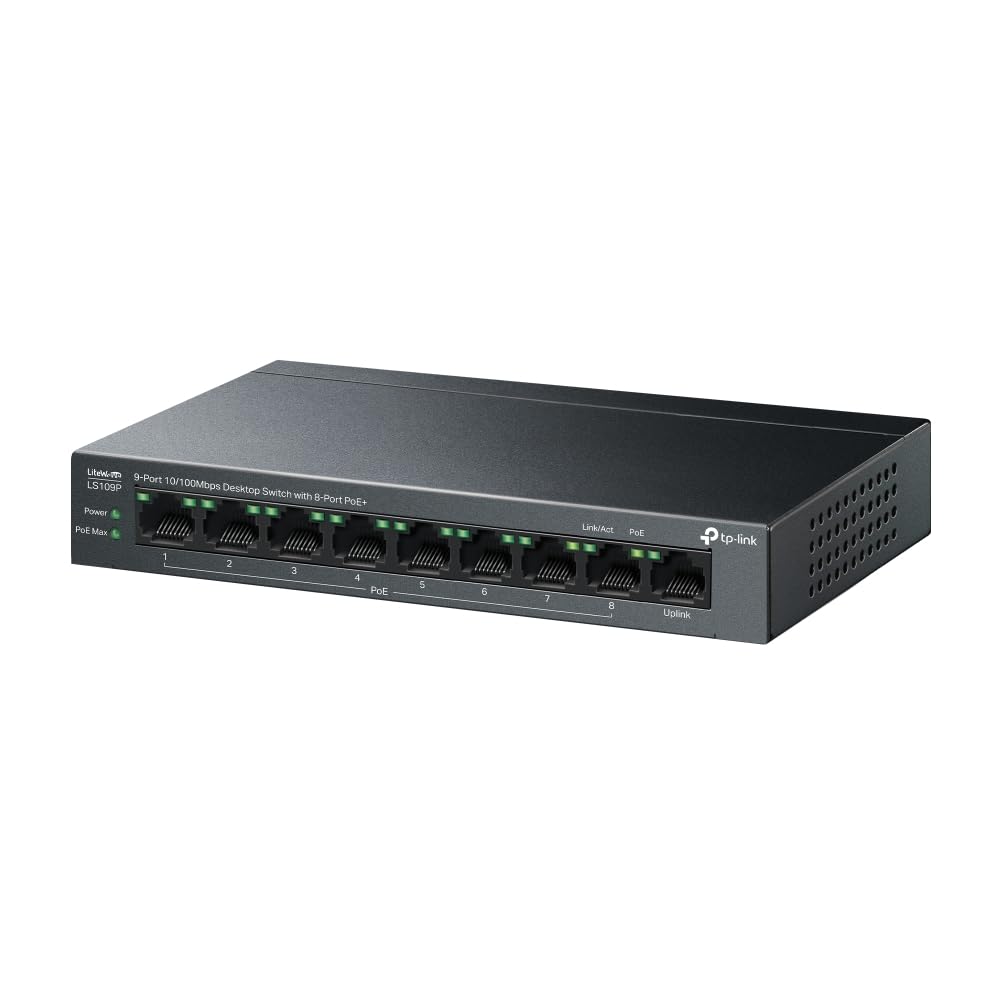

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+(LS109P)

Interface

9× 10/100 Mbps RJ45 Ports (8× 802.3af/at PoE+), Auto Negotiation, Auto MDI/MDIX

Network Media

- 10BASE-T: UTP Cat 3/4/5, EIA/TIA-568 STP (max 100m)
- 100BASE-TX: UTP Cat 5/5e, STP (max 100m)

Fan Quantity

Fanless

Installation

Desktop, Wall Mounting

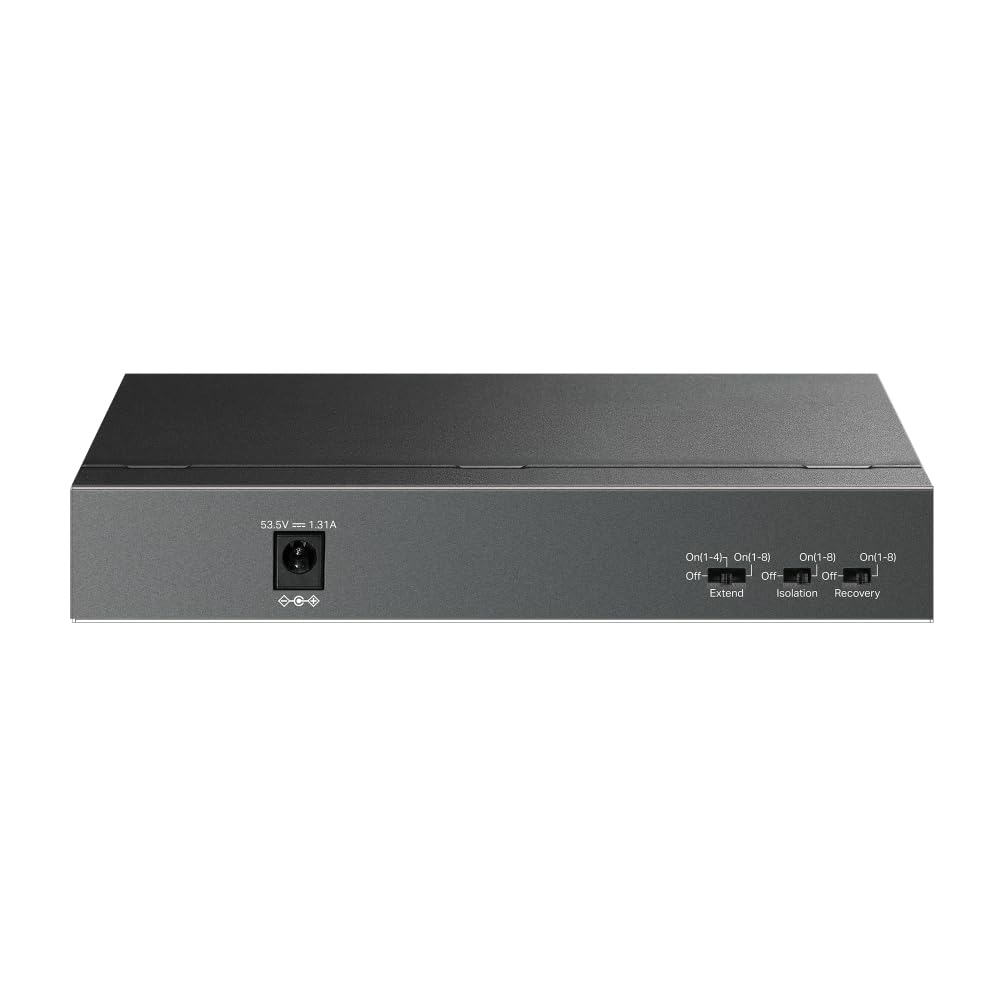

Power Supply

External Power Adapter (53.5V DC / 1.31A)

LED Indicators

Power, Link/Act, PoE Status, PoE MAX

PoE Ports (RJ45)

Ports 1–8 (802.3af/at), Up to 30 W per port, Total Power Budget: 63 W

Dimensions (W×D×H)

6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption

3.67 W (no PD), 73.24 W (with 63 W PD)

Max Heat Dissipation

12.48 BTU/h (no PD), 249 BTU/h (with 63 W PD)

Switching Capacity

1.8 Gbps

Forwarding Rate

1.3392 Mpps

MAC Address Table

2K entries

Jumbo Frame

1.5 KB

Advanced Features

- Extend Mode (Ports 1–4/1–8, up to 250m)
- Isolation Mode (Ports 1–8)
- PoE Auto Recovery
- MAC Address Auto-Learning and Auto-Aging
- IEEE 802.3x Flow Control
- Green Technology

Transmission Method

Store and Forward
