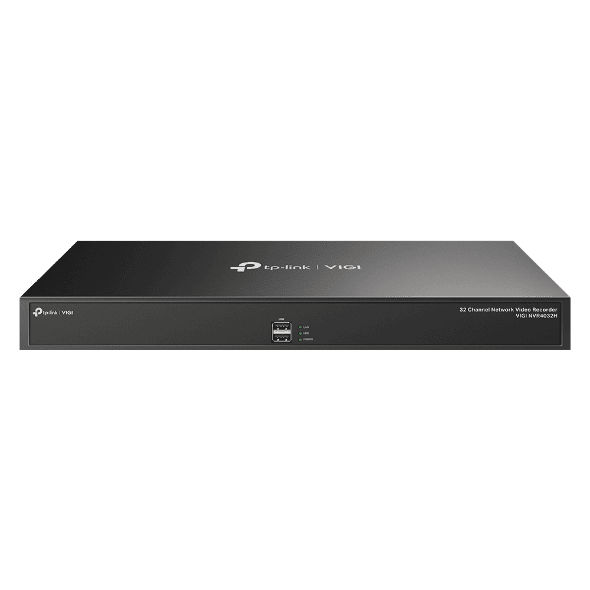

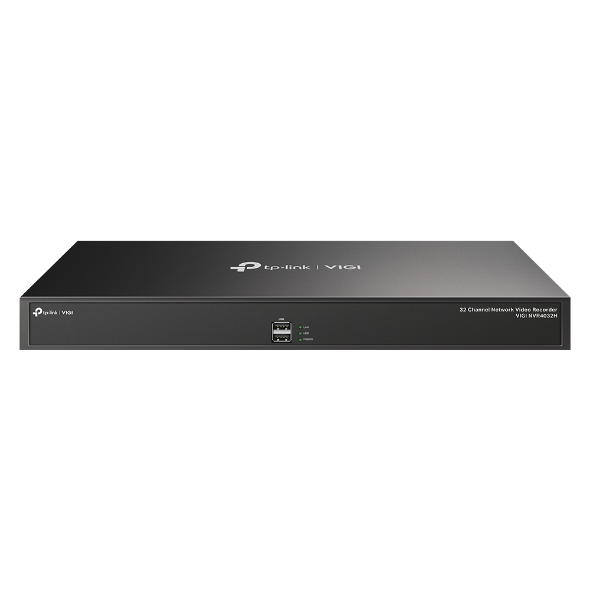

TP-Link VIGI 32 Channel Network Video Recorder-NVR4032H

Video and Audio

IP Video Input

32-Channel

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

320 Mbps

HDMI Output Resolution

3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA Output Resolution

1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Video Output Mode

HDMI/VGA Independent Output

Multi-View Display

1/4/6/8/9/16/25/32/36

Decoding

Audio Compression

G.711A/G.711U/G.726

Decoding Format

H.265+/H.265/ H.264+/H.264

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

16-Channel

Capability

16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)

Record Management

Record Mode

Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode

Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode

Regular Backup, Video Clip Backup

Playback Function

Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Network

Protocol

UPnP (Plug and Play), NTP (Network Timing)

Mobile Phone Access

Android, iOS

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

320 Mbps

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

External Interface

Network Interface

2 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

USB Interface

USB Interface

Audio Interface

1 x Audio In, 1 x Audio Out

Alarm In/Out

16/4

Serial Interface

1 x RS232

Power

1× AC Jack

Reset Button

1

Speaker

N/A

eSATA

N/A

HDMI

1

VGA

1

Hard Disk

SATA

4 SATA Interfaces

Capacity

Up to 16 TB Capacity for Each HDD

Alarm

General Alarm

Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection

Anomaly Alarm

Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

Alarm Linkage

Recording, White Light Alarm, Buzzer, Log, Audible Alarm

Network Management

Network Protocols

UPnP (Plug and Play), NTP (Network Timing)

Interoperability

ONVIF, CGI

Mobile Phone Access

Android, iOS

Browser

Chrome (57+), Firefox (52+), Edge (91+)

Record Playback

Record Mode

Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode

Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode

Regular Backup, Video Clip Backup

Playback Function

Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

General

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Content

VIGI Network Video Recorder, Mouse, Installation Guide, Power Cord, HDD Power Cables, HDD Data Cables, Terminal Blocks, Mounting Brackets, Screws and Rubber Feet

Working Temperature

-10–55 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions (W x D x H)

440 x 330 x 44 mm

External Power Supply

100-240 VAC, 50 to 60HZ, 1.5A

Net Weight

4.0 Kg

Gross Weight

5.2 Kg

Power Supply

100-240 VAC, 50 to 60HZ, 1.5A

Max. Power Consumption

5 W (Without Disk), 48 W (With Disk)

Certifications

CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI

Video/Image

IP Video Input

32-Channel

Multi-View Display

1/4/6/8/9/16/25/32/36

Video Output Mode

HDMI/VGA Independent Output

Recording Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI Output Resolution

3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA Output Resolution

1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
