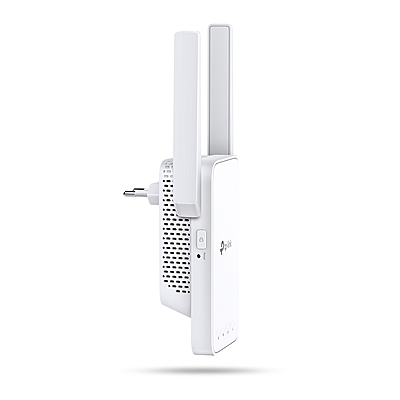

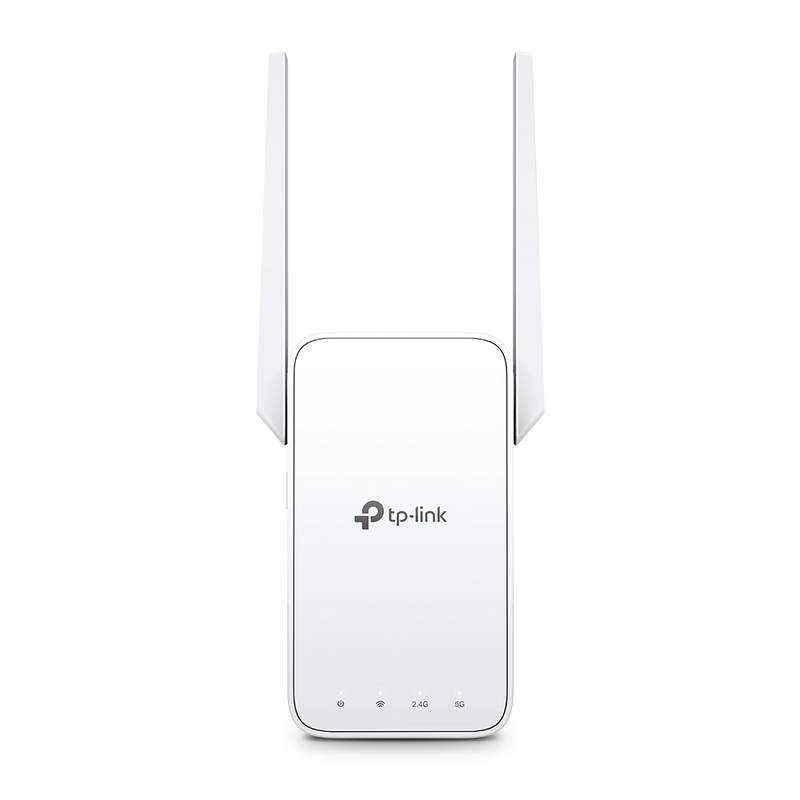

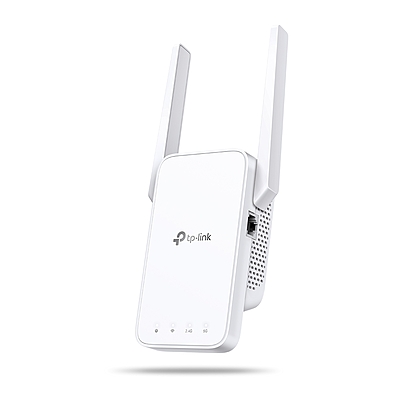

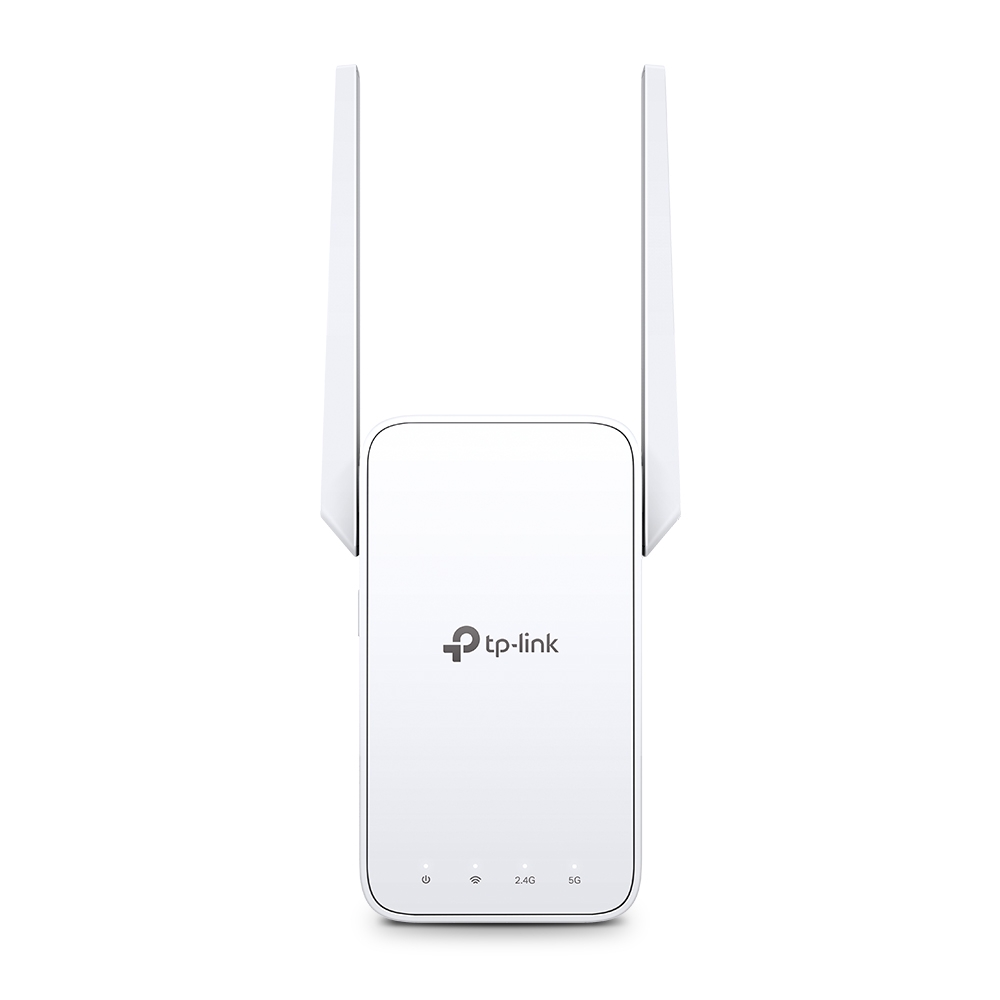

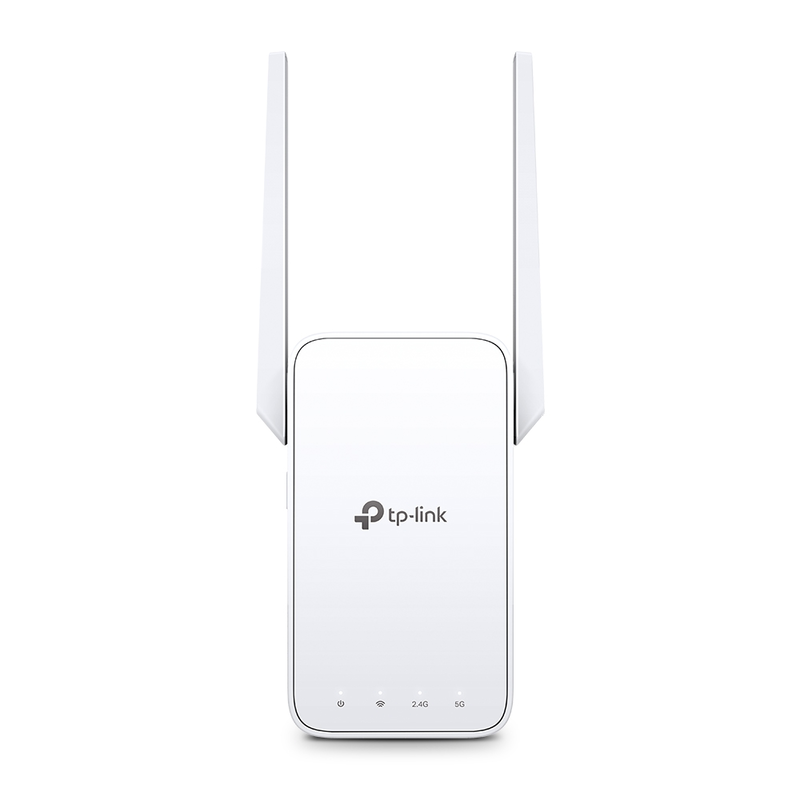

TP-Link AC1200 Mesh Wi-Fi Range Extender-RE315
Feature | Description |
|---|---|
Dual-Band WiFi | 2.4 GHz (300 Mbps) + 5 GHz (867 Mbps) for stable connection |
EasyMesh-Compatible | Supports Mesh network for seamless whole-home coverage |
Smart Signal Indicator | Helps locate the best position for optimal Wi-Fi coverage |
WPS & App Management | Easy setup via WPS; manage through Tether app or Web UI |
Category | Specifications |
|---|---|
Working Modes | Range Extender, Access Point |
Interface | 1 x 10/100Mbps Ethernet Port (RJ45) |
Buttons | WPS Button, Reset Button |
Input Power | 100-240V~50/60Hz |
Max. Power Consumption | 9.5W (max) |
Dimensions (W x D x H) | 89×35.0×124.1 mm (3.5×1.4×4.9 in.) |
Antenna | 2 External Antennas |
Wireless Standards | IEEE 802.11a/n/ac (5 GHz), IEEE 802.11b/g/n (2.4 GHz) |
Frequency | 2.4GHz and 5GHz |
Signal Rate | 300Mbps @ 2.4GHz, 867Mbps @ 5GHz |
Reception Sensitivity | Detailed per standard (e.g., 11ac HT80 MCS9: -62dBm) |
Wireless Functions | Wireless Radio Control, DFS, Access Control, LED Control, Power Schedule, Wi-Fi Coverage |
Wireless Security | 64/128-bit WEP, WPA/WPA2-PSK, WPA2-PSK2 encryptions |
Transmission Power | 2.4 GHz ≤20dBm, 5 GHz ≤30dBm |
General
- Uses For ProductBusiness
- Connectivity TypeWireless
Features
- Frequency Band ClassDual-Band
- Antenna TypeExternal
- Antennas Quantity2
