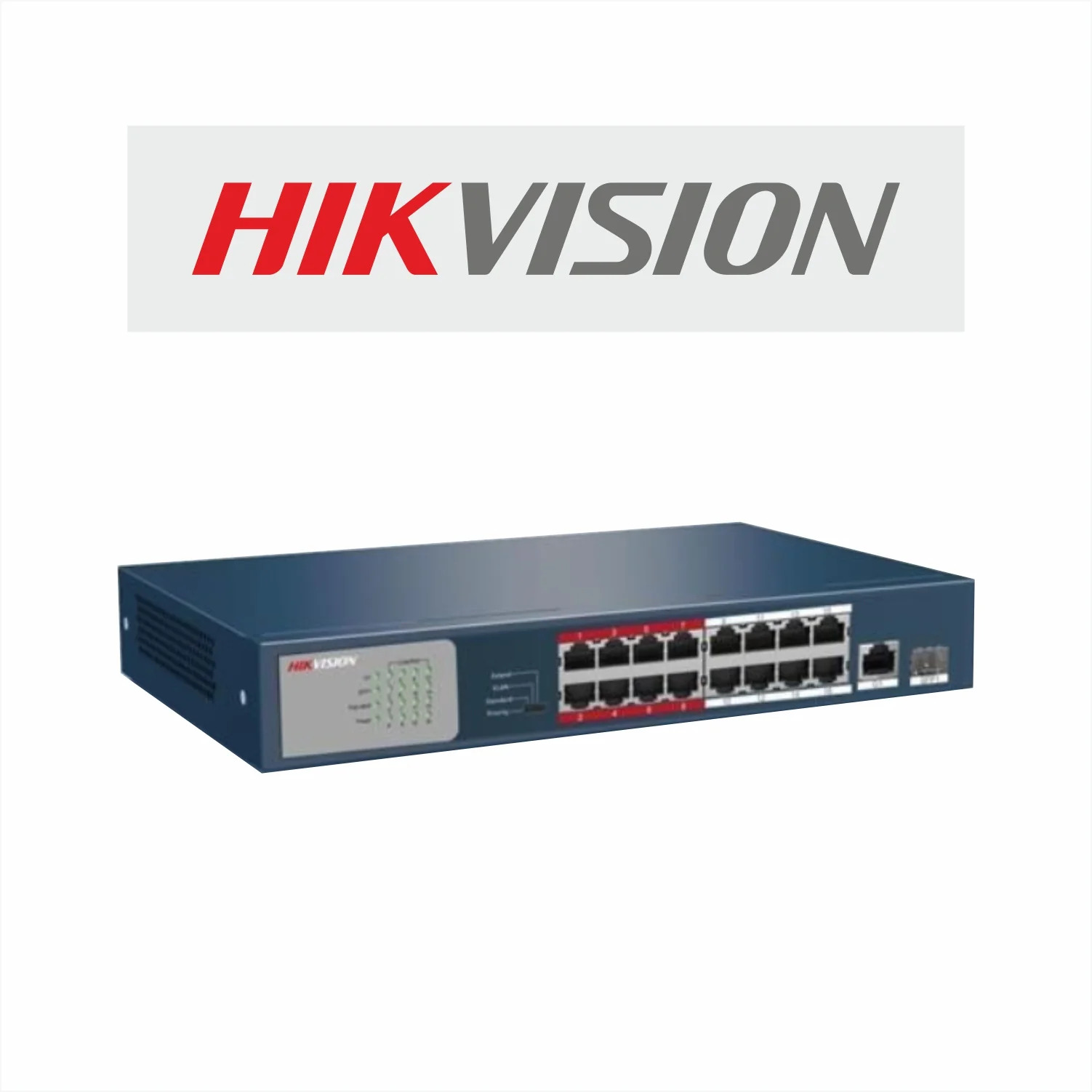

HIKVISION M 10/100 16 +2,130W/ (DS-3E0318P-E)
Feature | Description |
|---|---|
Switch Type | Unmanaged PoE Switch |
Ethernet Standards Compliance | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.1Q, 802.3x |
Ethernet Ports | 16 × 10/100 Base-TX ports |
Uplink Ports | 1 × 10/100/1000 Base-T port, 1 × 10/100/1000 Base-X SFP optical module port |
PoE Support | Ports 1–16 support IEEE 802.3af / 802.3at PoE |
Max PoE Output per Port | 30W |
Total PoE Power Budget | 135W |
Network Modes | Priority, Standard, Isolate, Extend |
MAC Address Table | 4K entries, with MAC address learning |
Backplane Bandwidth | 7.2 Gbps |
Switching Method | Store-and-Forward switching |
Build Material | All-metal construction |
Dimensions | 13-inch length, 1U standard rack-mount height |
Feature | Description |
|---|---|
Intelligent PoE Management | Automatically adjusts power supply when power limit is exceeded, extending switch lifespan. |
Long Range PoE Transmission | Supports up to 300 meters distance between IP cameras and switch. |
4/8-Core Adaptive Power Supply | Uses 8-core power delivery to reduce power loss over long cables. |
6KV Surge Protection | Built-in protection against lightning surges for better reliability in harsh environments. |
Design for Video Transmission | VIP port prioritizes important data during network congestion, ideal for surveillance systems. |
General
- TypesUnManaged
- Switching Capacity7.2 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports16
- Rack MountingYes
