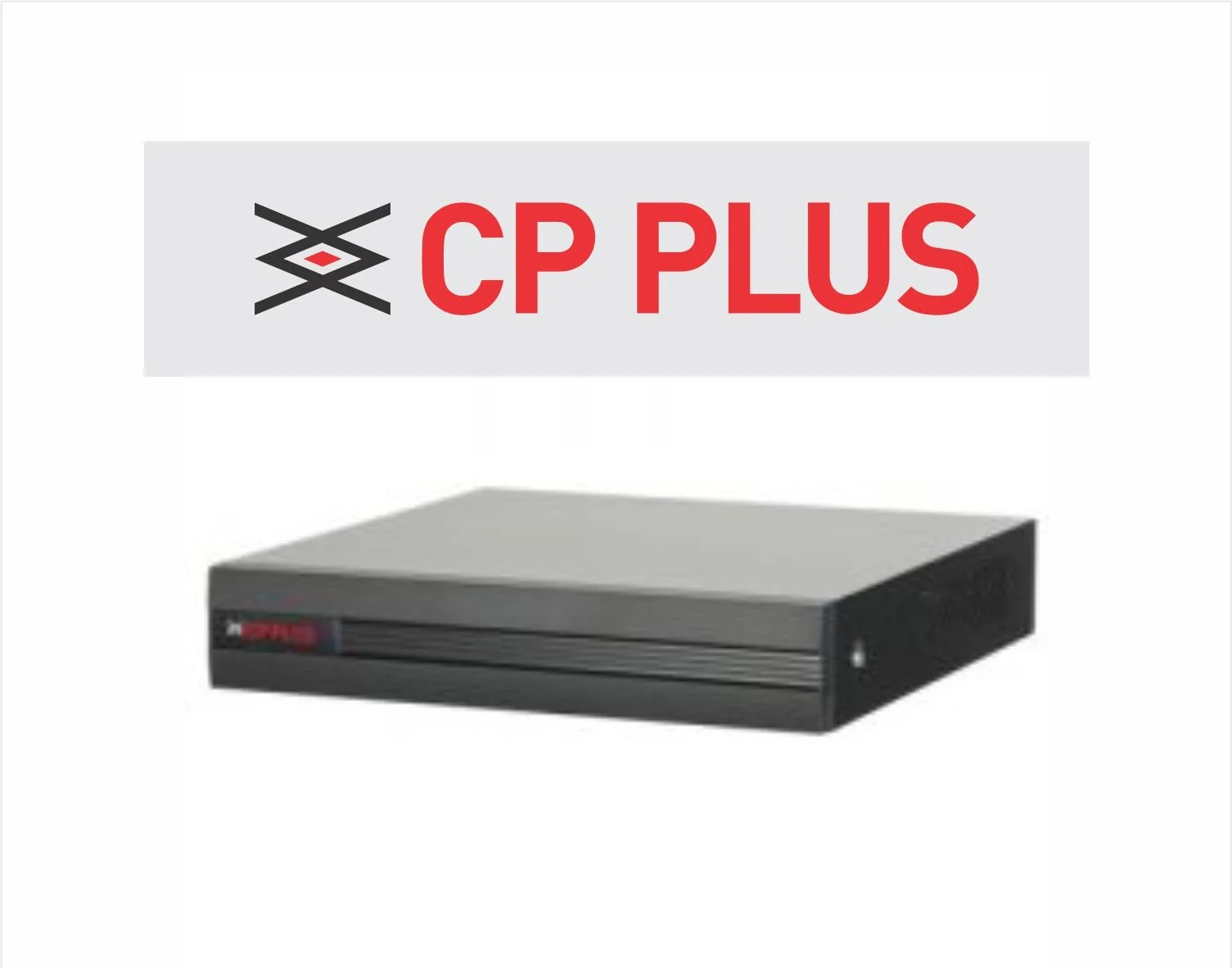

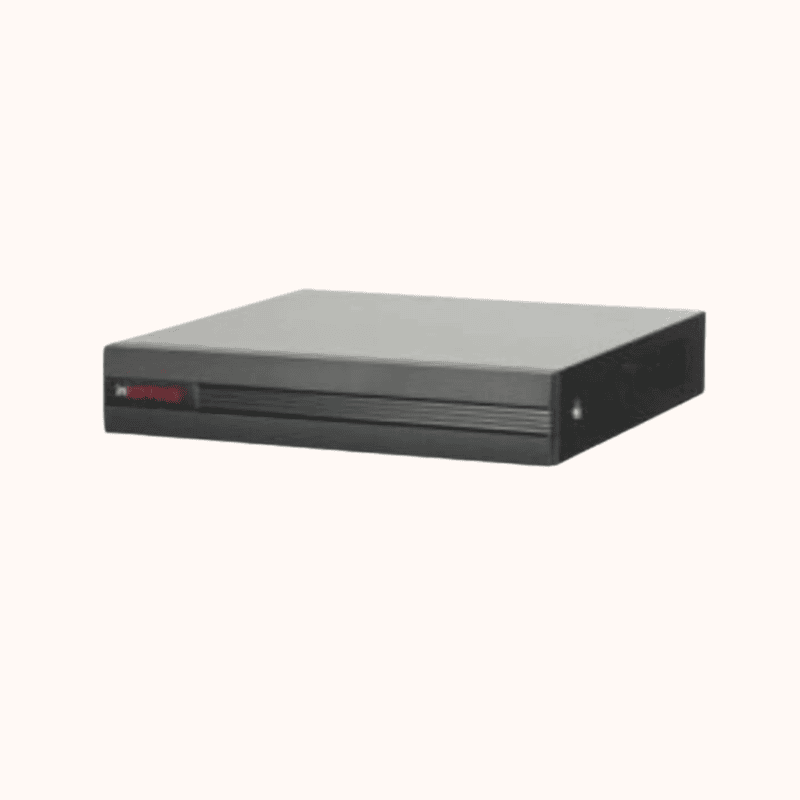

CP Plus 4 CH. 5MP DVR (CP-UVR-0401 F1-HC/IC)

Signal Support

Auto Adaptive HDCVI/AHD/TVI/CVBS/IP

IP Camera Support

Up to 6MP IP camera

IP Camera Input

4+2 channels (each up to 6MP)

Incoming Bandwidth

Max 24 Mbps

Video Input

4 channel, BNC

Video Output

1 HDMI, 1 VGA

Video Resolution

1920×1080, 1280×1024, 1280×720

Recording (Main Stream)

4CH: 1st ch 5M-N(110fps), others 4M-N/1080P(115fps), 1080N/720P etc.

Recording (Sub Stream)

CIF/QCIF (1~15fps)

Video Display Split

1/4

Video Compression

H.265+/H.265/H.264+/H.264

Dual-Stream Compression

Supported

Storage

1 SATA HDD up to 6TB

USB Ports

2 × USB 2.0

Audio Input/Output

1 channel each, RCA

Two-way Talk

Reuse audio in/out, RCA

Motion Detection

396 zones (22 × 18)

Video Loss/Camera Blank

Supported

Smartphone Support

iPhone, iPad, Android (Apps: iCMOB, gCMOB)

CMS Software

KVMS Pro

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips

Recording Modes

Manual, Schedule, MD, Alarm, Stop

Search Mode

Time/Date, Alarm, MD, Exact (accurate to second)

Playback Options

Play, Pause, Rewind, Fast/Slow Play, Zoom, Backup etc.

Backup Mode

USB Device / Network

Record Interval

160 min (default 60), Pre-record: 130 sec, Post-record: 10~300 sec

Max User Accounts

128 users

Ethernet Port

RJ-45 (100M)

Protocols Supported

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, SMTP, DHCP, DNS, FTP, ONVIF 16.12

Processor

Embedded Processor

Operating System

Embedded Linux

User Interface

GUI
