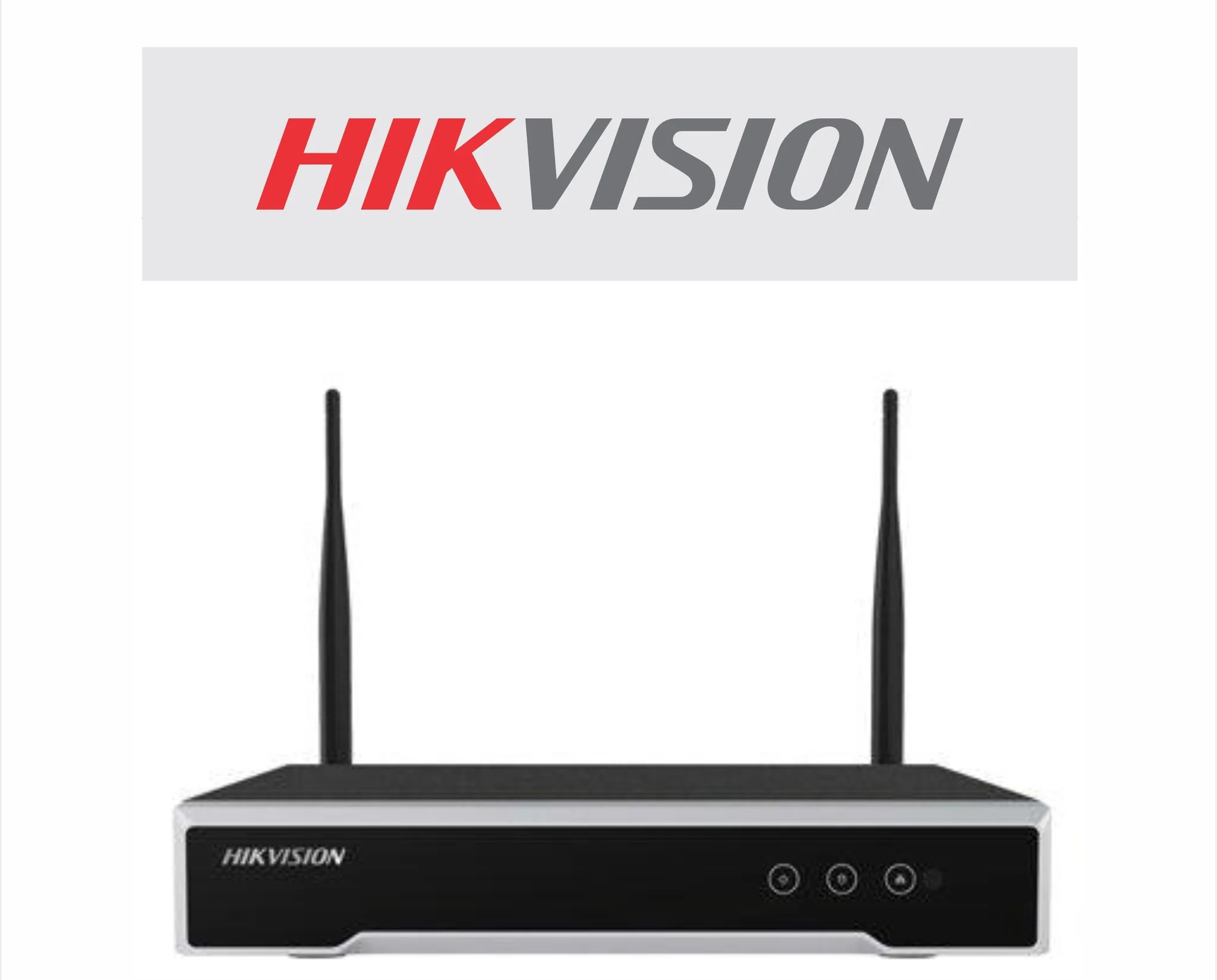

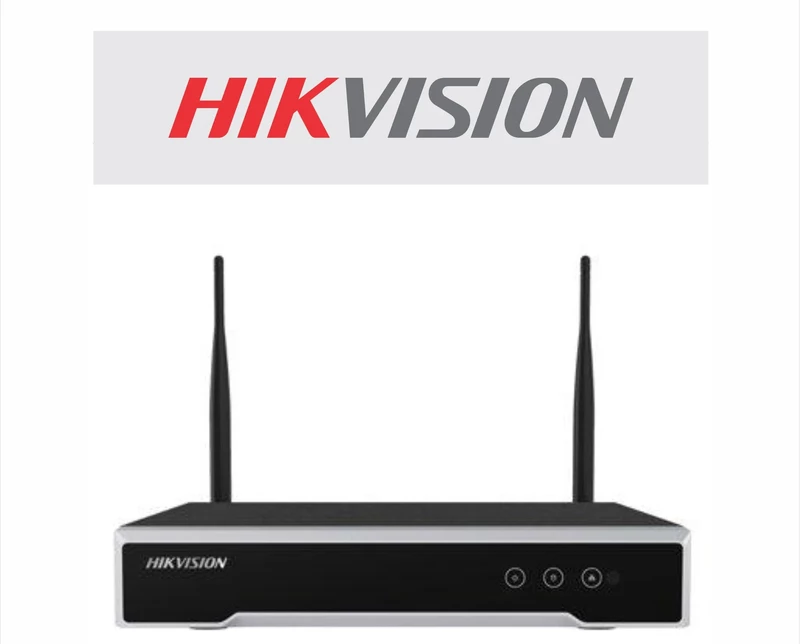

HIKVISION 4-ch 1HDD Wi-Fi NVR (DS-7104NI-K1/W/M)

IP Video Input

4-ch IP video input

HDMI Output

1-ch, resolutions: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

HDMI, VGA

Incoming Bandwidth

50/40 Mbps

Audio Output

1-ch, RCA (linear, 1 KΩ)

Decoding Formats

H.265+, H.265, H.264+, H.264

Decoding Capability

4-ch @ 1080p or 1-ch @ 4 MP

Synchronous Playback

4-ch synchronous playback

Recording Resolution

4 MP, 3 MP, 1080p, 1.3 MP, 720p

Network Interface

1, RJ45 10/100M Ethernet interface

PoE Interface

N/A

Wireless Frequency Band

2.4 GHz

Antenna Structure

2 × 2 MIMO

Transmission Speed

144 Mbps

Transmission Standard

IEEE 802.11b/g/n

RAID Type

No

Auxiliary SATA Interface

1 SATA interface, up to 6 TB capacity per disk

USB Interface

Rear panel: 2 × USB 2.0

Power Supply

12 VDC

Power Consumption

≤ 12 W

Working Temperature

-10 °C to +55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimensions (W × D × H)

260 × 246 × 48 mm (10.2" × 9.7" × 1.9")

Weight

≤ 1 kg (2.2 lb)
