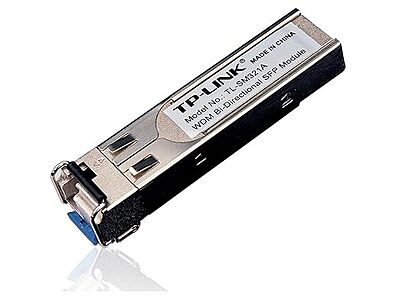

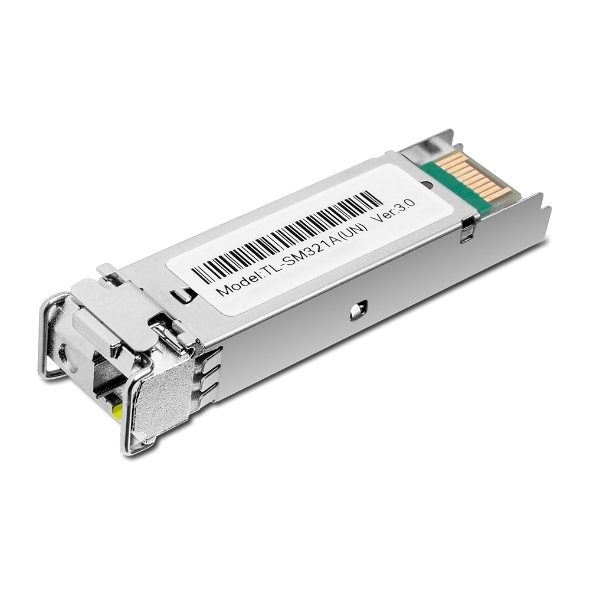

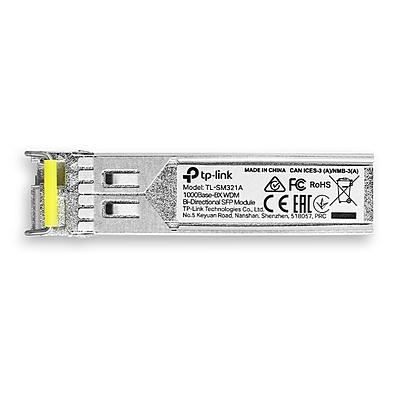

TP-Link Omada WDM Bi-Directional SFP Module ,TL-SM321A
Feature | Description |
|---|---|
WDM Bi-Directional Transmission | Uses a single fiber to both transmit and receive data to reduce cabling costs. |
Speed | Supports data rates up to 1000 Mbps (1 Gbps). |
Transmission Distance | Capable of transmitting data over distances up to 20 km. |
Connector Type | Features an LC simplex connector for single-mode fiber. |
Compatibility | Fully compatible with Omada switches and other SFP-compliant devices. |
Category | Details |
|---|---|
Standards & Protocols | IEEE 802.3z, TCP/IP |
Wavelength | TX: 1550 nm, RX: 1310 nm |
Dimensions (W x D x H) | 2.2 × 0.6 × 0.5 in (55.4 × 14.6 × 12.9 mm) |
Power Supply | 3.3 V |
Safety & Emission | FCC, CE |
Cable Type | Single-Mode Fiber |
Fiber Specs | 9/125 μm Single-Mode |
Max. Cable Length | 20 KM |
Data Rate | 1.25 Gbps |
Port Type | LC Simplex |
Hardware Features | DDM, SFP-MSA, Hot Swappable |
Package Contents | SM321A, Installation Guide |
Operating Temperature | 0–70 °C (32–158 °F) |
Storage Temperature | -40–85 °C ( -40–185 °F) |
Operating Humidity | 10–90% RH, Non-Condensing |
Storage Humidity | 5–90% RH, Non-Condensing |
General
- Interface TypeSFP
- Maximum Data Transfer Rate1.25 Gbps
