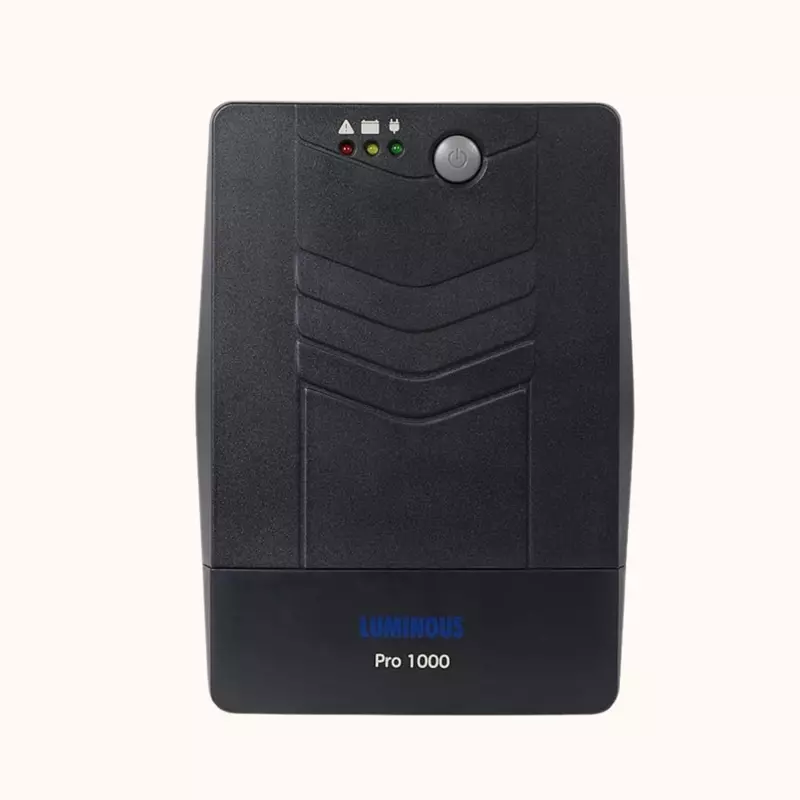

LUMINOUS PRO 1000 Tower Model UPS -LB1000

1

VA / Watt Rating

1000 VA / 600 W output.

2

Type

Line‑interactive UPS.

3

Input Voltage Range

140‑300 VAC. This wide range helps it cope with low and high mains voltage fluctuations.

4

Operating Frequency

50 Hz ± some range; input frequency ≈ 45‑55 Hz. Output frequency in battery mode ≈ 50 Hz ±1Hz.

5

Output Voltage

Nominally 230V. Output regulation within ~ ±10%.

6

Waveform

Simulated sine wave output.

7

Transfer Time

Typical transfer of about 4‑8 ms, max ~13 ms.

8

Battery Configuration

Two batteries, each ~ 12V / 7.2‑7.5Ah, in series (making ~24V system).

9

Recharge Time

Around 4‑6 hours to reach ~90% charge.

10

Backup Time

Varies by load; for light loads (desktop PC, router etc.), backup can be in the order of tens of minutes; full‑load gives shorter backup. Some listings say ~15‑20 minutes at heavier loads.

11

Outlets / Loads Supported

3 output sockets. Overload protection present. Supports PC / desktops, CCTV, routers, LED TV etc.

12

Cold‑Start Feature

Yes — UPS can be powered on using battery even when mains is off.

13

Physical Dimensions & Weight

~ 350 × 146 × 160 mm (D × W × H). Weight ~ 7.9‑8.5 kg.

14

Noise Level & Environment

Noise less than ~40 dB. Operating humidity 0‑90% RH @ 0‑40 °C non‑condensing.
