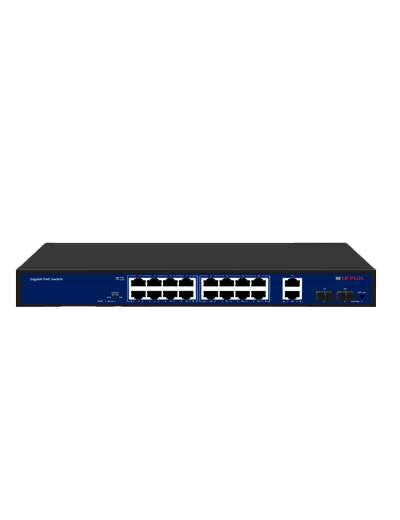

CP plus 16port giga POE Ethernet Switch -CP-DNW-GPU16G2F2-20
The CP Plus CP-DNW-GPU16G2F2-20 is a high-performance, unmanaged 20-port Ethernet switch designed for surveillance and networking applications. It features 16 Gigabit PoE ports capable of delivering up to 30W per port, along with 2 Gigabit RJ45 uplink ports and 2 SFP ports for flexible connectivity. With a total switching capacity of 40Gbps and robust surge and ESD protection, it's ideal for powering and connecting IP cameras, access points, and other PoE-enabled devices in medium to large-scale deployments.
Model: CP Plus CP-DNW-GPU16G2F2-20
Total Ports: 20 (16 PoE + 2 Gigabit RJ45 uplink + 2 SFP)
PoE Ports: 16 × 10/100/1000Mbps RJ45 ports
PoE Output: Up to 30W per PoE port
Uplink Ports: 2 × 1000Mbps RJ45, 2 × Gigabit SFP
Switching Capacity: 40Gbps full-duplex
Packet Forwarding Rate: 29.76 million packets per second
MAC Address Table: 8,000 entries
PoE Standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Surge Protection: 4KV (common mode) / 2KV (differential mode) for RJ45 ports; 4KV (common mode) / 2KV (differential mode) for power board
ESD Protection: 8KV air discharge / 6KV contact discharge
Watchdog Function: Supported for PoE monitoring
Operating Temperature: 0°C to 45°C
Power Supply: Built-in power supply unit
Mounting Options: Supports wall-mounting and desktop installation
General
- TypesUnManaged
- Port TypeRJ45
- No. Of Ethernet Ports18
- No. Of SFP Ports2
- No. Of RJ45 Ports16
- No. Of Power Supplies Supported1
- Rack MountingYes
