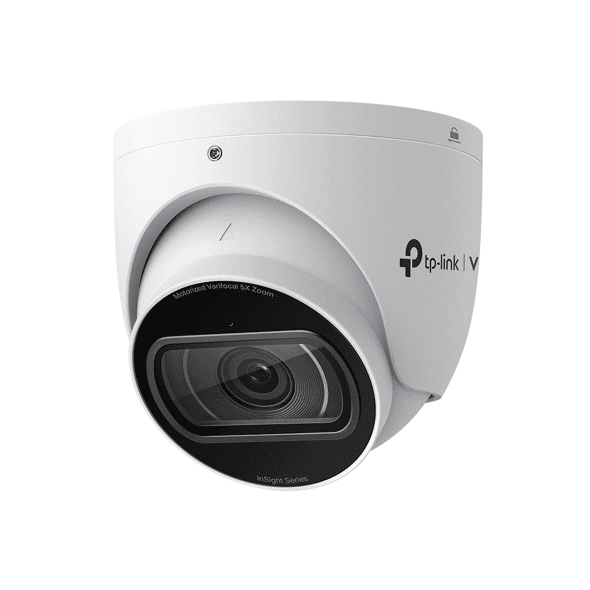

Tp-Link VIGI 4MP IR Motorized Varifocal Turret Network Camera-InSight S445ZI
Image Sensor | 1/2.9" Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
Type | Motorized Varifocal Lens |
Focal Length | 2.7-13.5 mm (5X Optical Zoom) |
IR LED | - Quantity: 4 - Range: 60m (197ft) - Wavelength: 850nm |
Camera Specifications
Feature | Specification |
|---|---|
Image Sensor | 1/2.9” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10,000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Lens Specifications
Type | Motorized Varifocal Lens |
|---|---|
Focal Length | 2.7 mm - 13.5 mm (5X Optical Zoom) |
Aperture | F1.6 |
Lens Mount | Φ14 |
Field of View (FOV)
Focal Length | Horizontal FOV | Vertical FOV | Diagonal FOV |
|---|---|---|---|
2.7 mm | 29.6° | 16.8° | 34.1° |
13.5 mm | 102.0° | 53.8° | 122.8° |
DORI Distance
Focal Length | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
2.7 mm - 13.5 mm | 66 - 207 m (217 - 579 ft) | 28 - 86 m (92 - 282 ft) | 13 - 41 m (43 - 135 ft) | 7 - 21 m (23 - 69 ft) |
Angle Adjustment (Manual)
Pan | 0° to 360° |
|---|---|
Tilt | 0° to 77° |
Rotation | 0° to 360° |
Illuminator
IR LED | Quantity: 4<br>Range: 60 m (197 ft)<br>Wavelength: 850 nm |
|---|---|
Illuminator Control | Auto / Scheduled / Always On / Always Off |
Video
| Max. Resolution | 2688 × 1520 (≈4 MP) |
General
- Placement SupportedIndoor
- Case TypeTurret
- Megapixel (Approx.)4 MP
- Mounting TypeCeiling/Wall
- AudioBuilt in Microphone & Speaker
- Connectivity TechnologyWired
- Wi-FiNo
- Power Over EthernetYes
