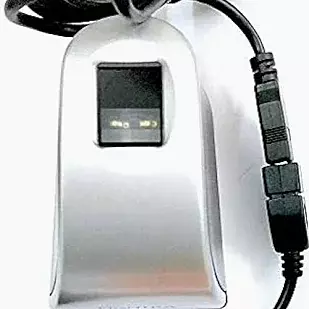

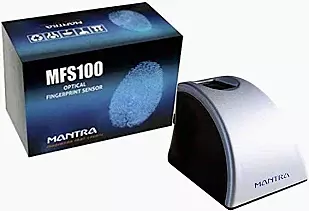

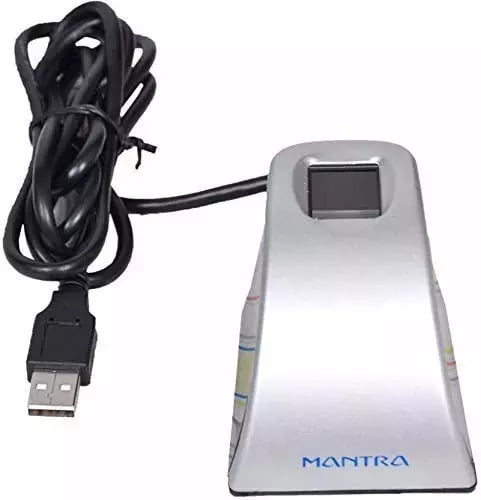

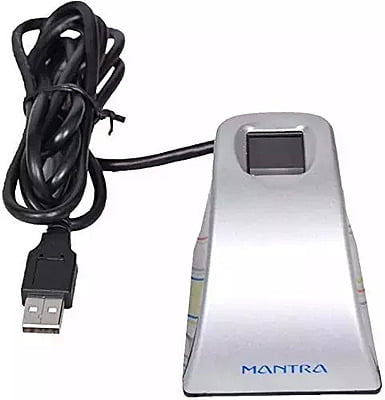

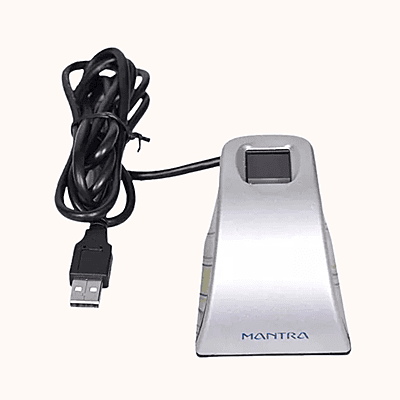

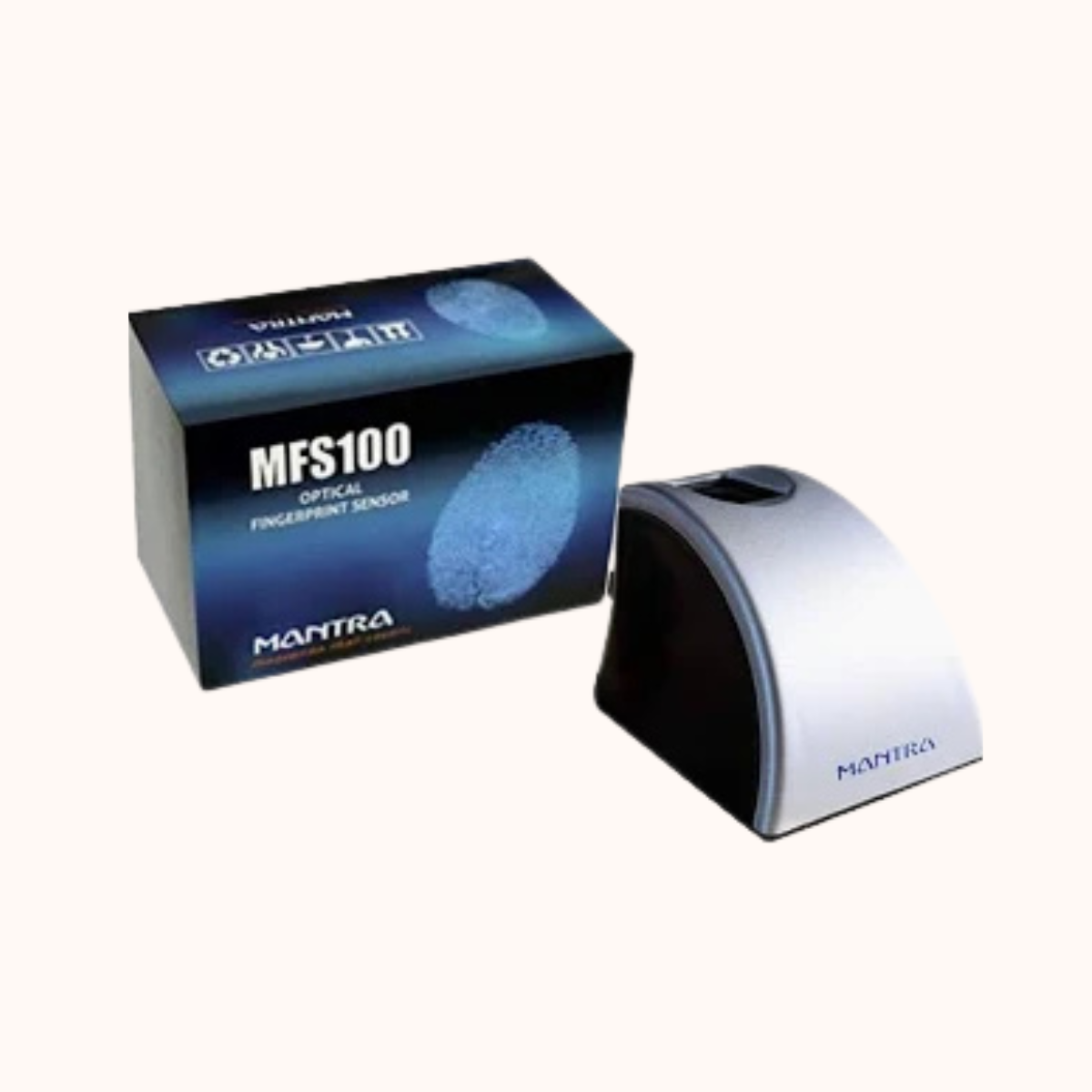

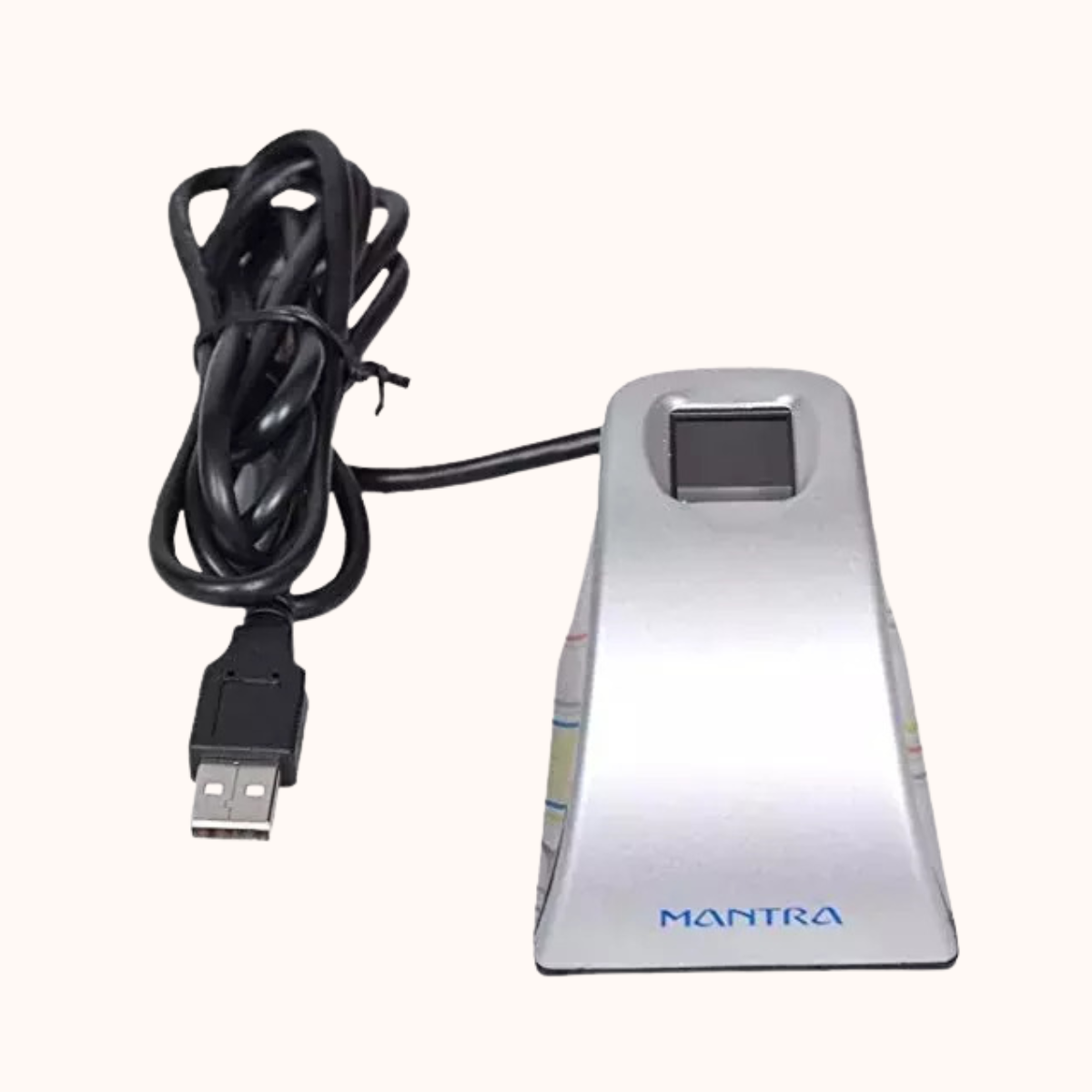

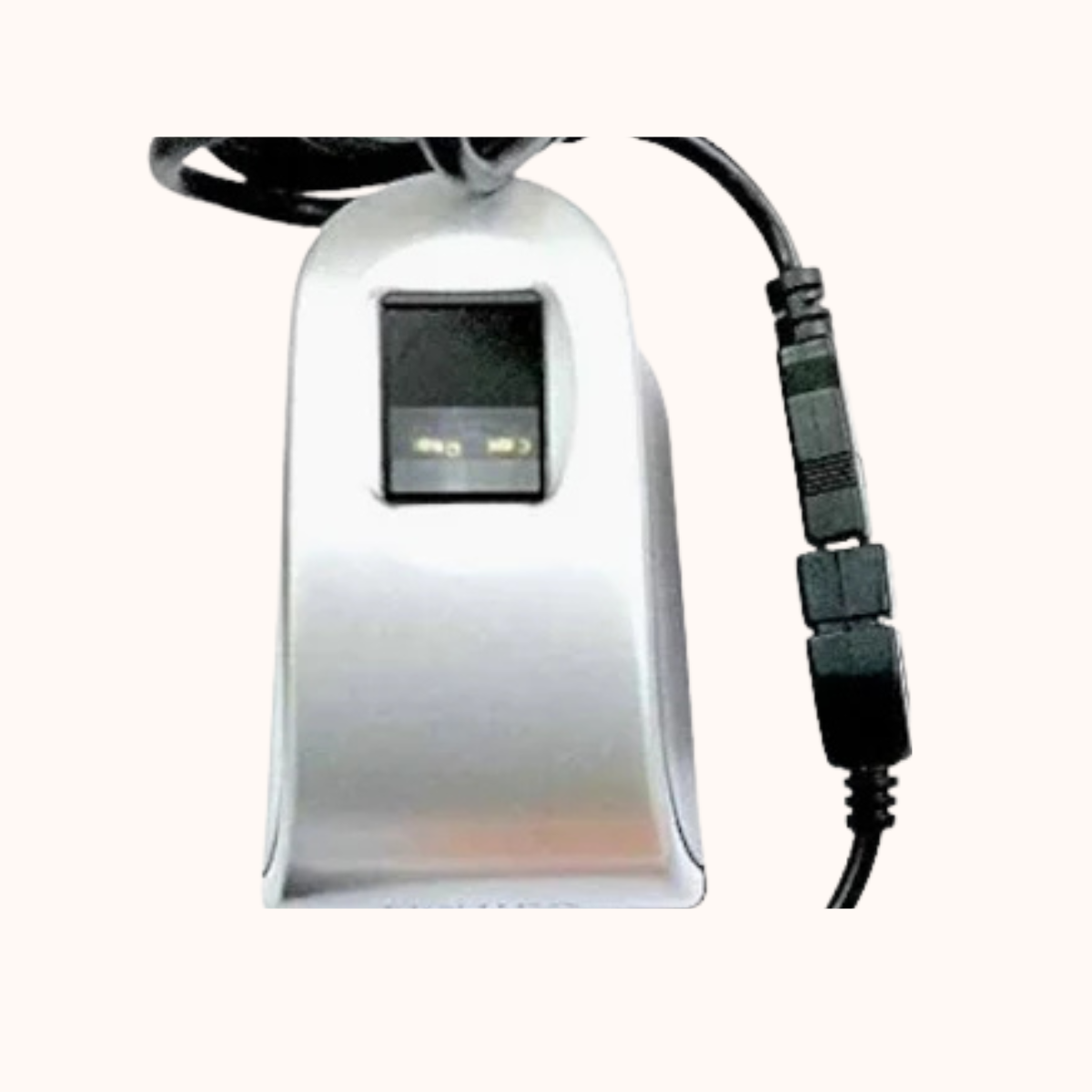

Mantra Biometric Fingerprint Scanner (MFS100)
Out of stock
Rs. 2,149.00
Rs. 3,500.00
Brand: Mantra
Model: MFS100
Type: Biometric Fingerprint Scanner
Interface: USB 2.0 Connectivity
Application: Suitable for Aadhaar Authentication, eKYC and Attendance Systems
Model: MFS100
Type: Biometric Fingerprint Scanner
Interface: USB 2.0 Connectivity
Application: Suitable for Aadhaar Authentication, eKYC and Attendance Systems
Product Details
Specifications
Product Details
Product Details
| Specification | Details |
|---|---|
| Brand | Mantra |
| Model | MFS100 |
| Product Type | Biometric Fingerprint Scanner |
| Sensor Type | Optical Fingerprint Sensor (Scratch-Free Surface) |
| Sensor Resolution | 500 DPI ±2% |
| Image Size | 296 × 354 Pixels |
| Image Grayscale | 256 Levels (8-Bit) |
| Sensing Area | 15 mm × 18 mm |
| Capture Time | Less than 2 Seconds |
| Interface | USB 2.0 |
| Operating Voltage | 5V ±5% (USB Powered) |
| Operating Current | ≤100 mA |
| Operating Temperature | 0°C to 50°C |
| Operating System Support | Windows, Linux, Android |
| Supported Standards | ISO 19794-2, ISO 19794-4, ANSI 378 |
| Certifications | STQC, CE, FCC, RoHS |
| Device Dimensions | 91 × 61 × 54 mm |
| Weight | Approx. 140 g |
| Applications | Aadhaar Authentication, eKYC, Attendance System, Banking, Government Services |
| Package Contents | 1 × Biometric Fingerprint Scanner, USB Cable |
Specifications
Specifications
General
- Operating Humidity20% -80%
- Finger Print Capacity3000 - 3999
- FARLess Then 0.0001%
- FRRLess then 1%
- Face Capacity3000 (1:N), 3000 (1:1)
- Sensor Type500 DPI Optical sensor
- Frequency1.0GHz
- Power Supply6 V
- Communication TypeUSB Disk
- LanguageMulti Language Support
- ID Card Capacity10,000 (optional)
