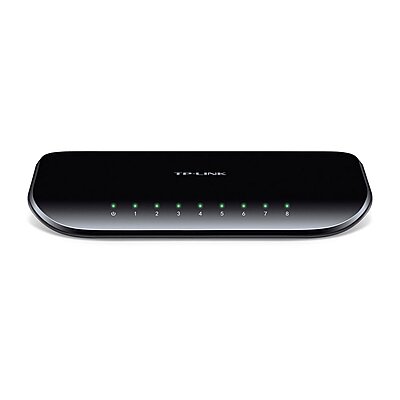

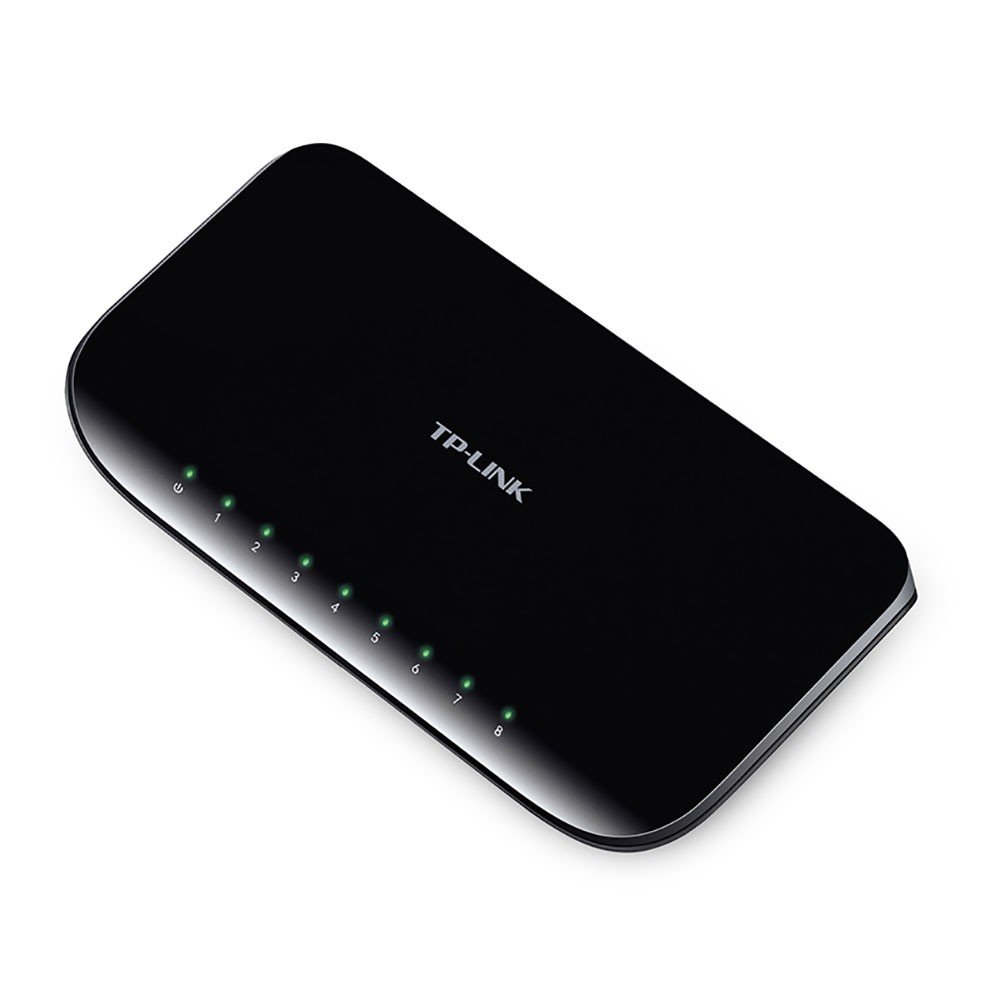

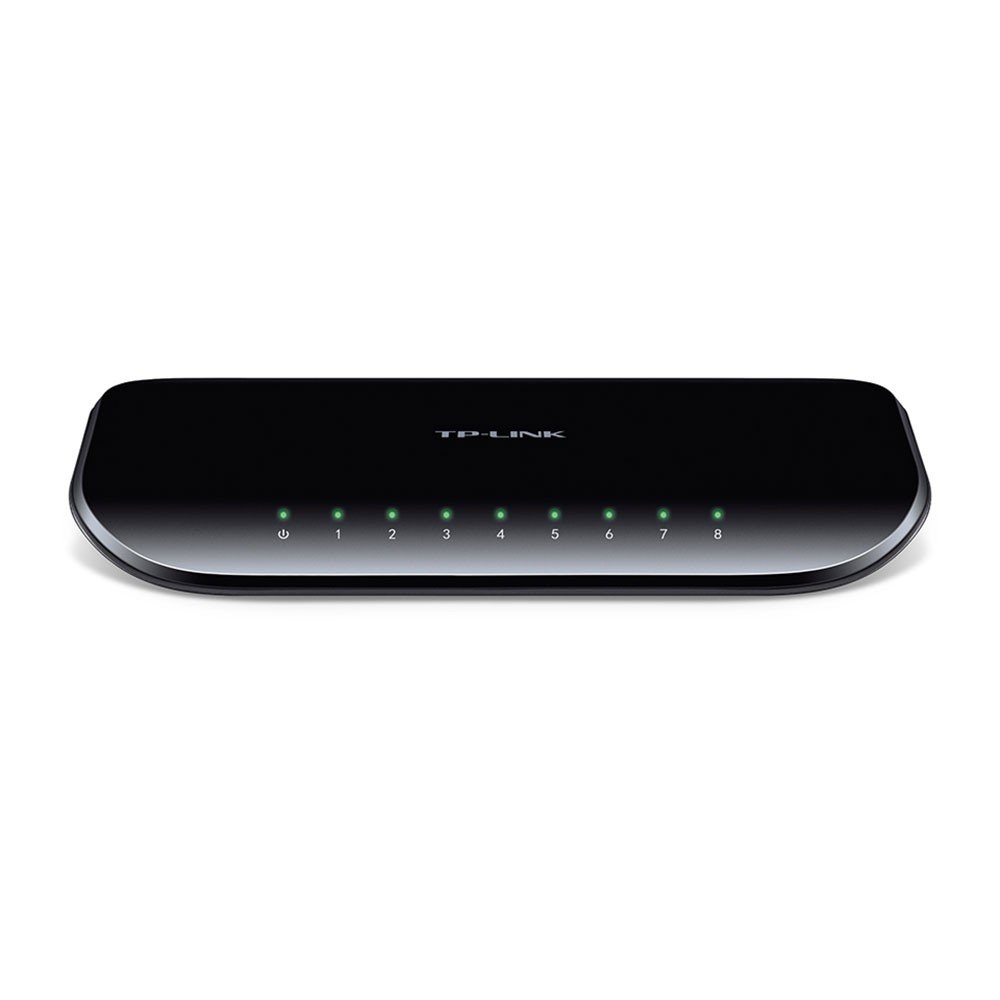

TP-Link 8-Port Gigabit Desktop Switch-TL-SG1008D
Brand | TP-Link |
Number of Ports | 8 |
Included Components | 8-Port Gigabit Desktop Switch TL-SG1008D, Power Adapter, Installation Guide |
Colour | Black |
Compatible Devices | Desktop |
Category | Details |
|---|---|
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3i/802.3u/802.3ab/802.3x |

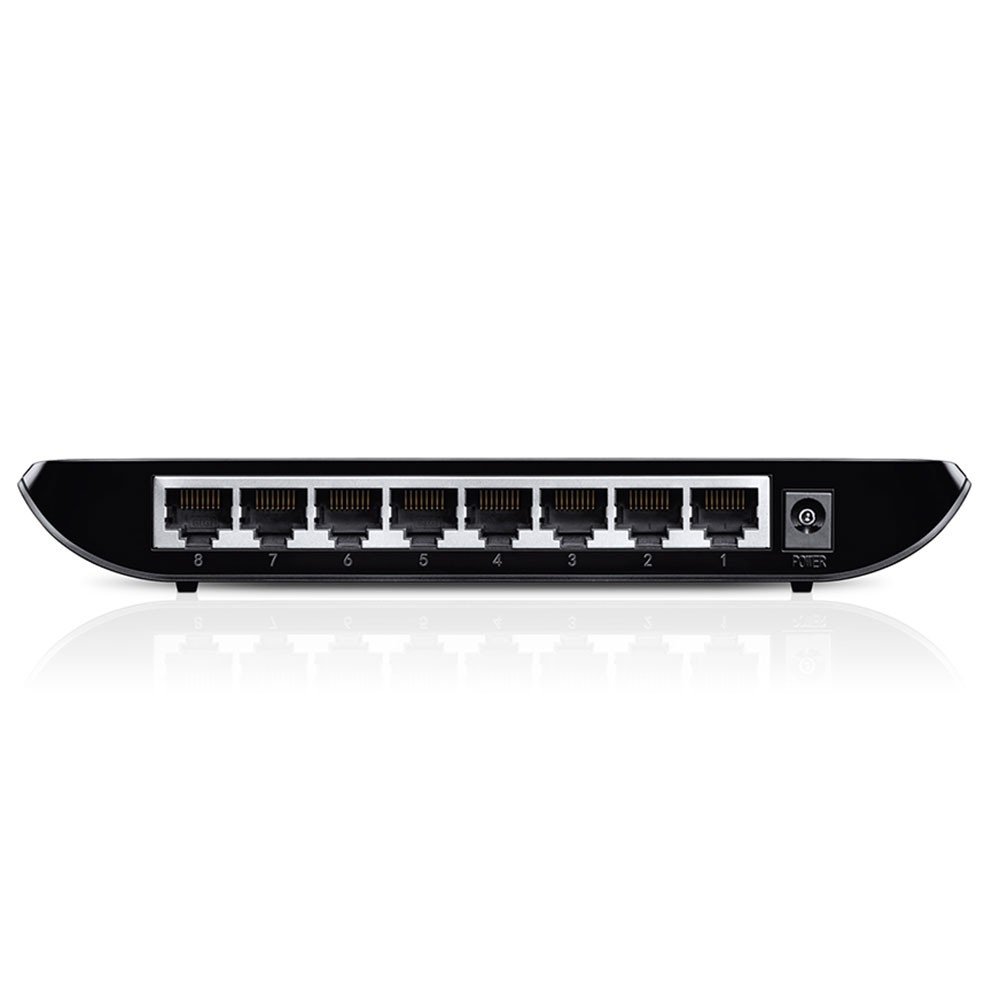

Interface | 8 × 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity | Fanless |
Physical Security Lock | No |
External Power Supply | External Power Adapter (Output: 9VDC/0.6A) |
Jumbo Frame | 15 KB |
Switching Capacity | 16 Gbps |
Dimensions (W × D × H) | 7.1 × 3.5 × 1.0 in (180 × 90 × 25.5 mm) |
Max. Power Consumption | 4.63W (220V/50Hz) |
Max Heat Dissipation | 15.80 BTU/h |
SOFTWARE FEATURES | |
Advanced Features | Green Technology, 802.3X Flow Control, Back Pressure, 802.1p/DSCP QoS (for V7 and later version) |
MAC Address Table | 4K |
Transmission Method | Store and Forward |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Content | 8-Port Gigabit Desktop Switch TL-SG1008D, Power Adapter, Installation Guide |
General
- TypesUnManaged
- Switching Capacity16 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports8
- No. Of Power Supplies Supported1
