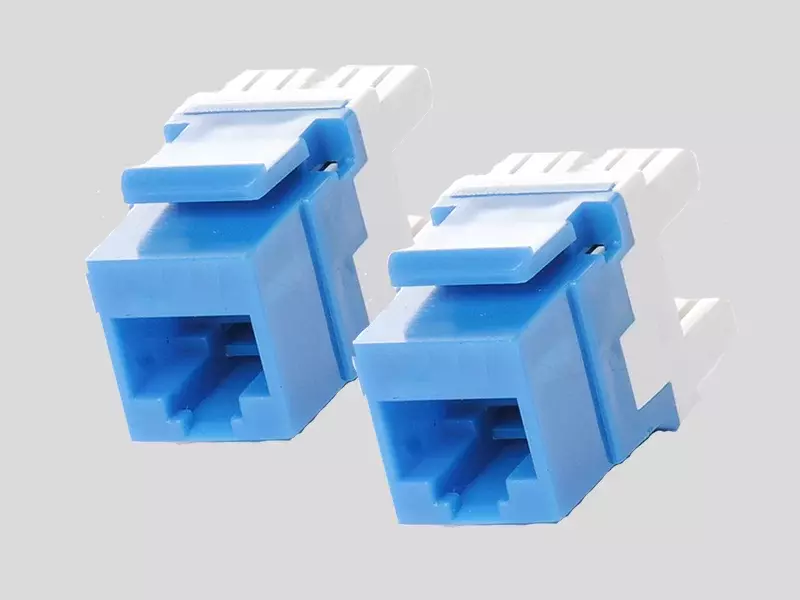

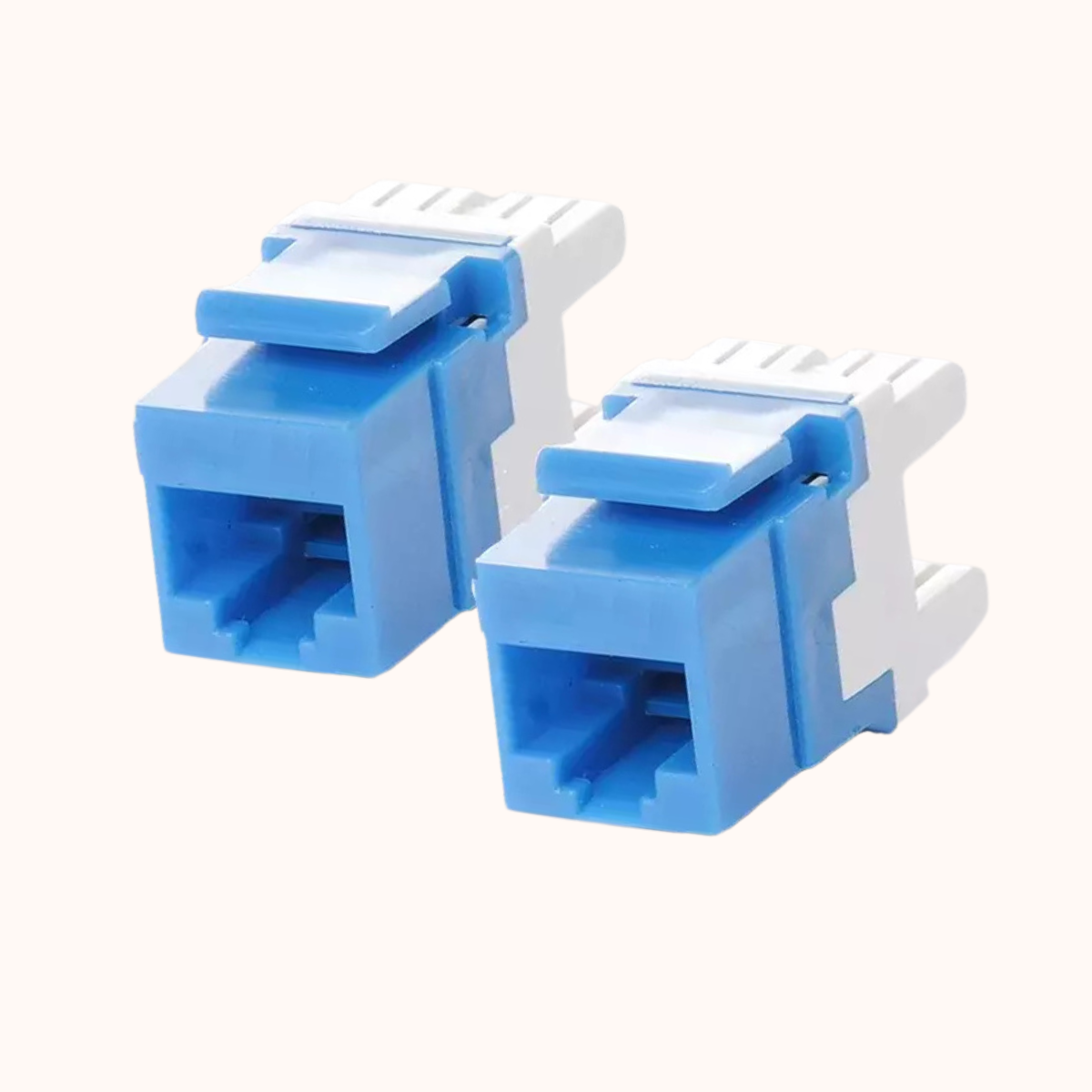

Delton Cat6 UTP, Punch Down, W/o Door, Keystone Jack (DLT-KW6U-P)
Specification | Details |
|---|---|
Outer Dimensions | 35.5 mm x 23.15 mm x 15 mm |
Outer Housing | PC (Polycarbonate) |
Terminal Pin Housing | PBT / PC |
PCB | Double-sided, FR4, 1.0 mm |
Terminal Pins | PH Bronze, Gold Plating over Nickel Plating |
Pins Inner | Bronze with Gold Plating |
Plug Insertion | 750 Cycles with UL Compliant Male Plugs |
Locking on Face Plate | Top & Bottom |
Operating Temperature | -10°C to 60°C |
Storage Temperature | -40°C to 68°C |
Current Rating | 1.5 Amps |
IDC | 200 Termination Cycles |
ABS | Very strong material; provides good finish; can be mounted on back box with 60 mm pitch |
Specification | Details |
|---|---|
Outer Dimensions | 35.5 mm x 23.15 mm x 15 mm |
Outer Housing | PC (Polycarbonate) |
Terminal Pin Housing | PBT / PC |
PCB | Double-sided, FR4, 1.0 mm |
Terminal Pins | PH Bronze, Gold Plating over Nickel Plating |
Pins Inner | Bronze with Gold Plating |
Plug Insertion | 750 Cycles with UL Compliant Male Plugs |
Locking on Face Plate | Top & Bottom |
Operating Temperature | -10°C to 60°C |
Storage Temperature | -40°C to 68°C |
Current Rating | 1.5 Amps |
IDC | 200 Termination Cycles |
ABS | Very strong material; provides good finish; can be mounted on back box with 60 mm pitch |
General
- Type Of OutletsDual
