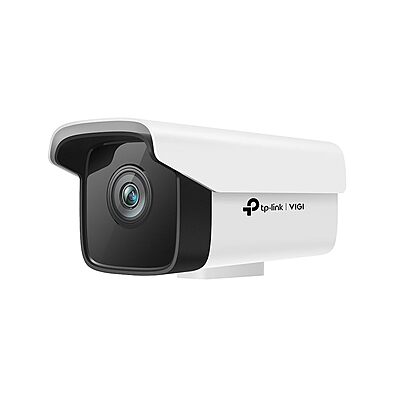

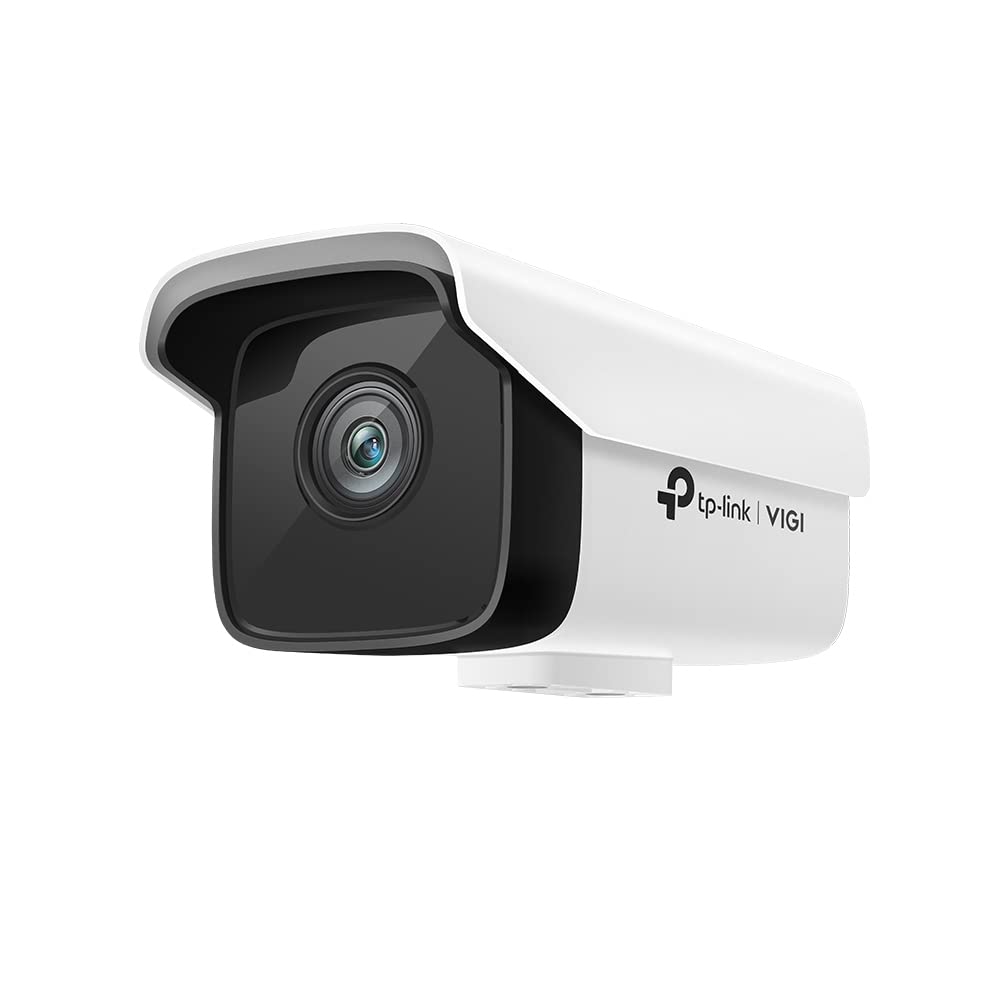

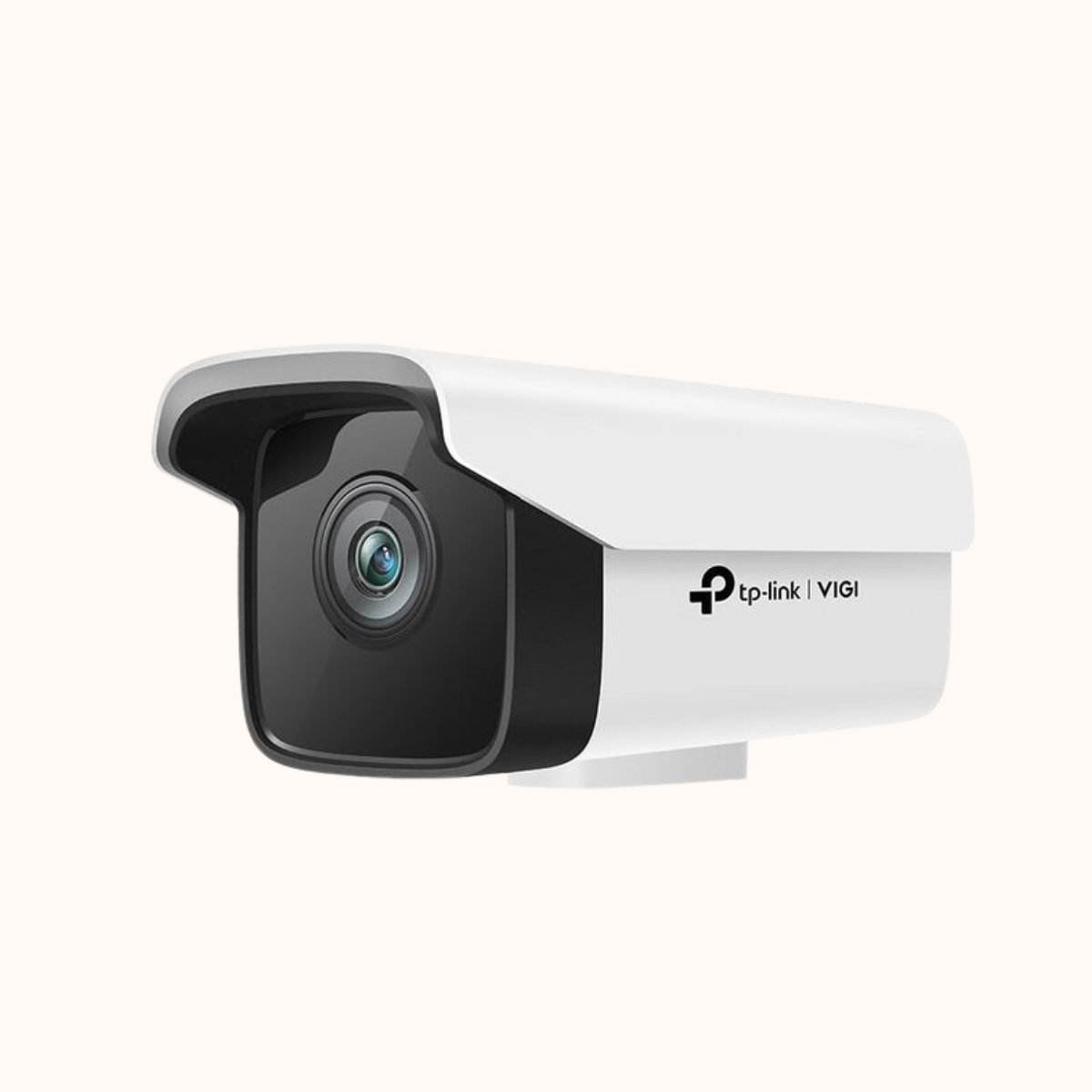

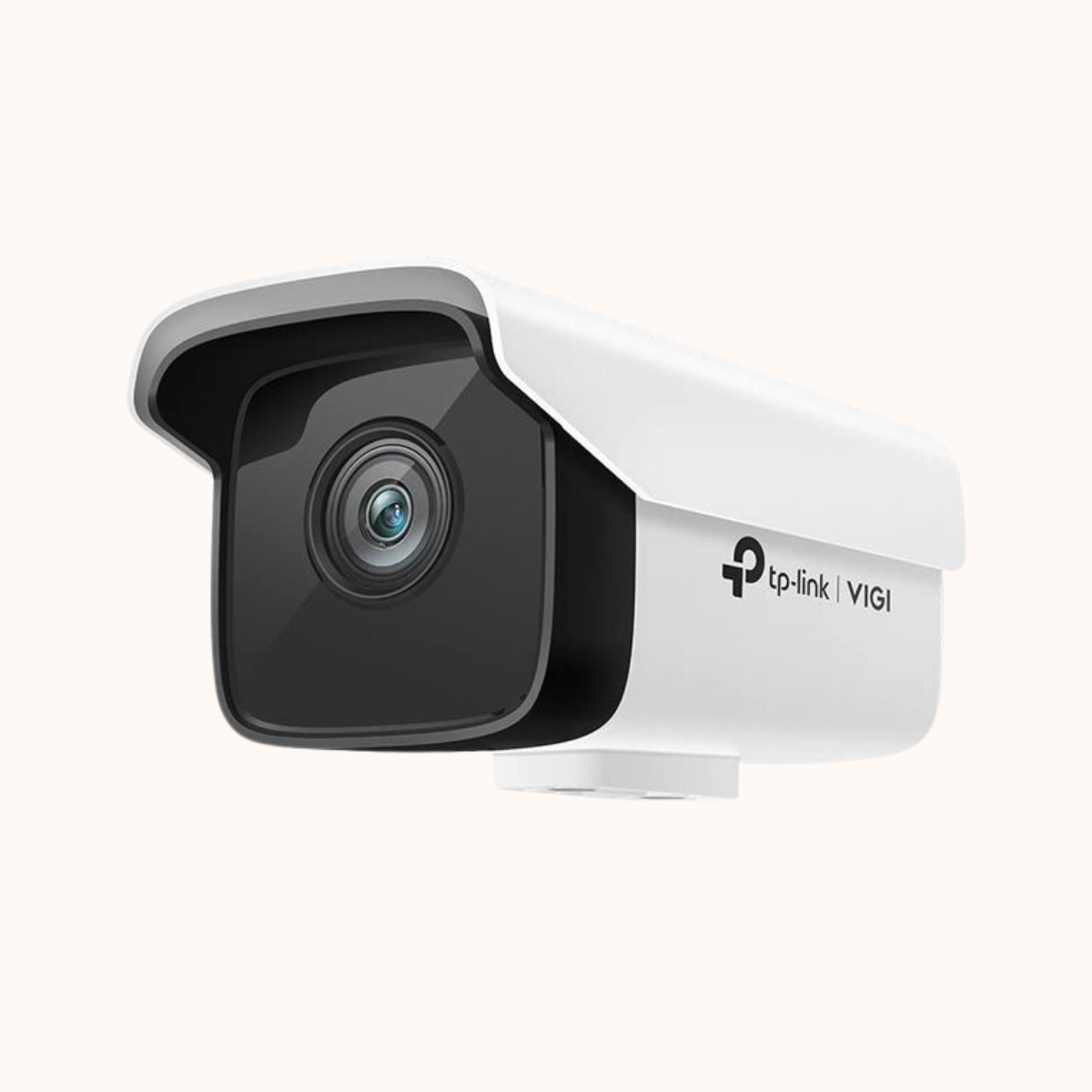

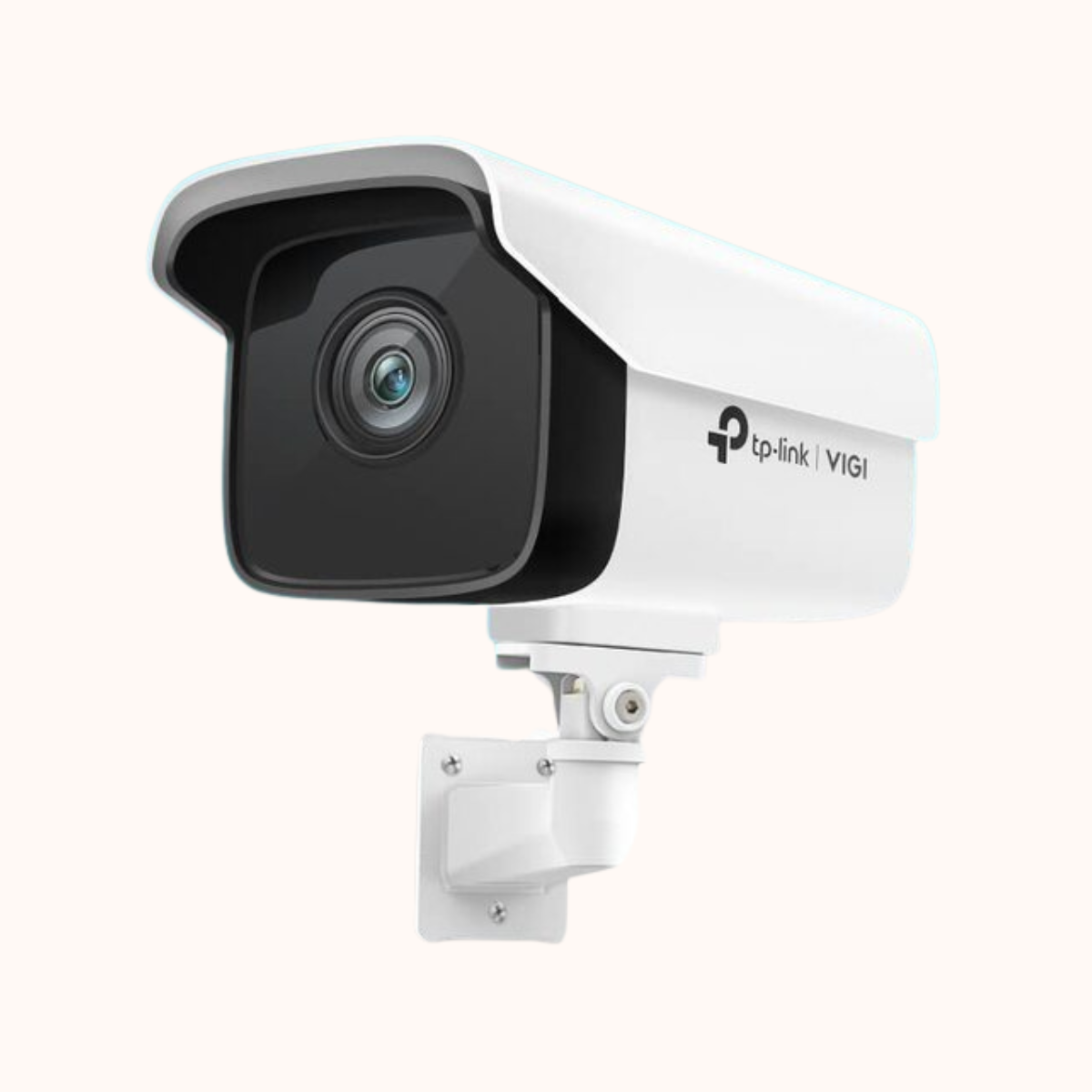

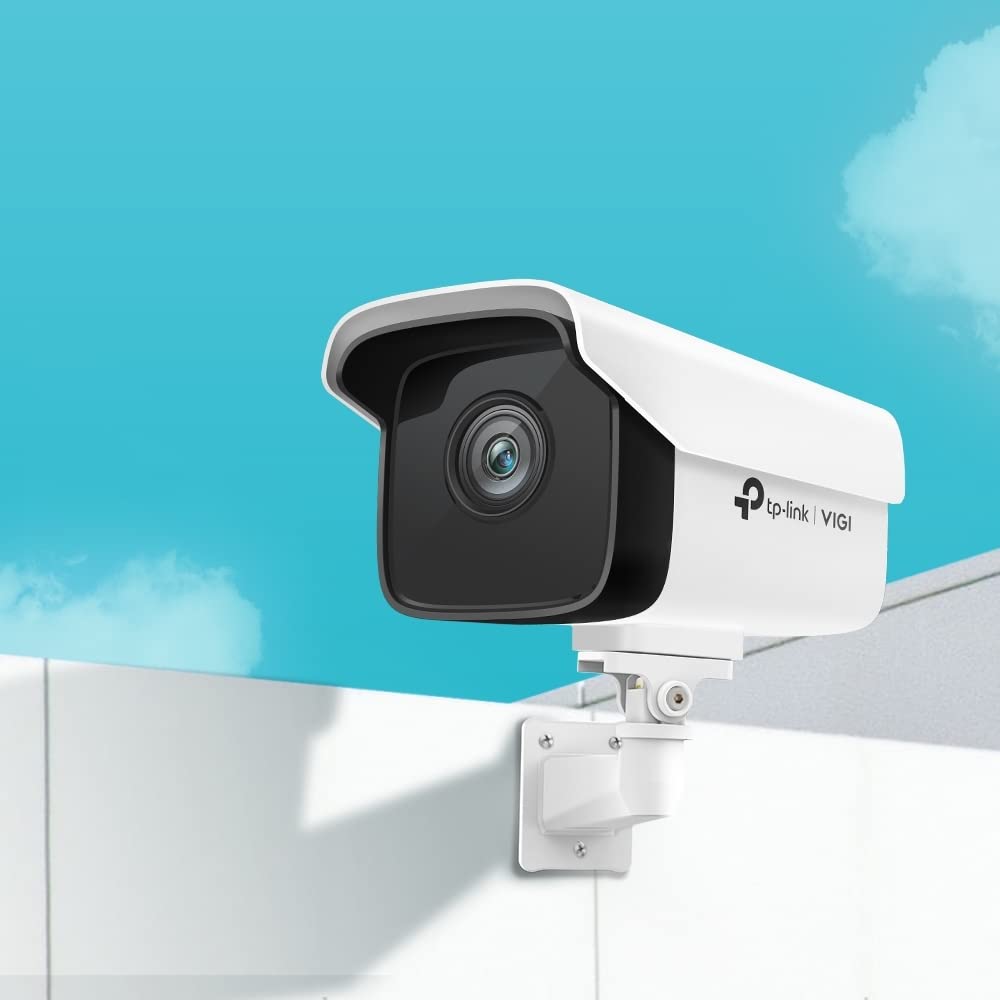

TP-Link VIGI (4mm) 3MP Outdoor Bullet Network Camera-C300HP V2

CAMERA

Image Sensor

1/2.7” Progressive Scan CMOS

Aperture

4 mm: F2.4 / 6 mm: F2.0

Lens

4 mm / 6 mm

Lens Mount

M12

Minimum Illumination

Color: 0.1 Lux@F2.0; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

DWDR

Weatherproof Rating

IP67

IR Working Distance

30m

Viewing Angle (4 mm)

Horizontal FOV: 92°, Vertical FOV: 48°, Diagonal FOV: 114°

Viewing Angle (6 mm)

Horizontal FOV: 54°, Vertical FOV: 31°, Diagonal FOV: 62°

NETWORK

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS

API

ONVIF

Simultaneous Live View

4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm

-

Button

-

Video Output

-

GENERAL

Operating Temperature

-30–60 °C

Weight

283.5g

Package Content

VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Bracket, Mounting Accessories (Screws, Drywall Anchors, Hex Key)

Dimensions (H x W x D)

164.9 × 87.4 × 83.4 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)

Max. Power Consumption

12V DC: Max 3W, PoE: Max 4W

Certifications

CE, FCC, RCM, BSMI, VCCI, IP67, RoHS

VIDEO/IMAGE

Video Compression

Main stream: H.265/H.264, Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240

Video Streaming

Main Stream, Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement

BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate

64 Kbps to 6 Mbps

SMART FEATURE-SET

Smart Event

Area Intrusion Detection, Line-Crossing Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception (illegal login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region
