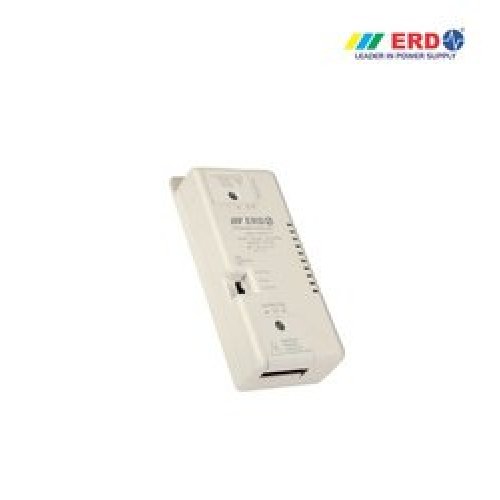

ERD Power Supply 12V DC-20A (PS-50T)
Specification | Details |
---|---|
Model | PS-50T |
Input Voltage | 150V to 240V AC, 50/60Hz |
Output Voltage | 12V DC |
Output Current | 20A (Maximum) |
Specification | Details |
---|---|
Output Wattage | 240W (Maximum) |
Ripple Voltage | <5% mV P-P |
Protection Features | Surge, Over Current, Over Voltage, Over Load, Over Temperature |
Cooling | Inbuilt cooling fan for heat dissipation |
Mounting Style | Desktop type with wall-hanging hook |
Cabinet Material | FR grade PC, white color |
Terminal Type | Screw-type block terminals for easy installation |
Safety Features | Covered AC & DC terminals for safety |
Warranty | 12 months (against manufacturing defects) |
Applications | CCTV Cameras, LED Products, Other Electronic Equipment |
General
- Wattage240 Watt
- ModularNo
- Compatible DevicesCamera
