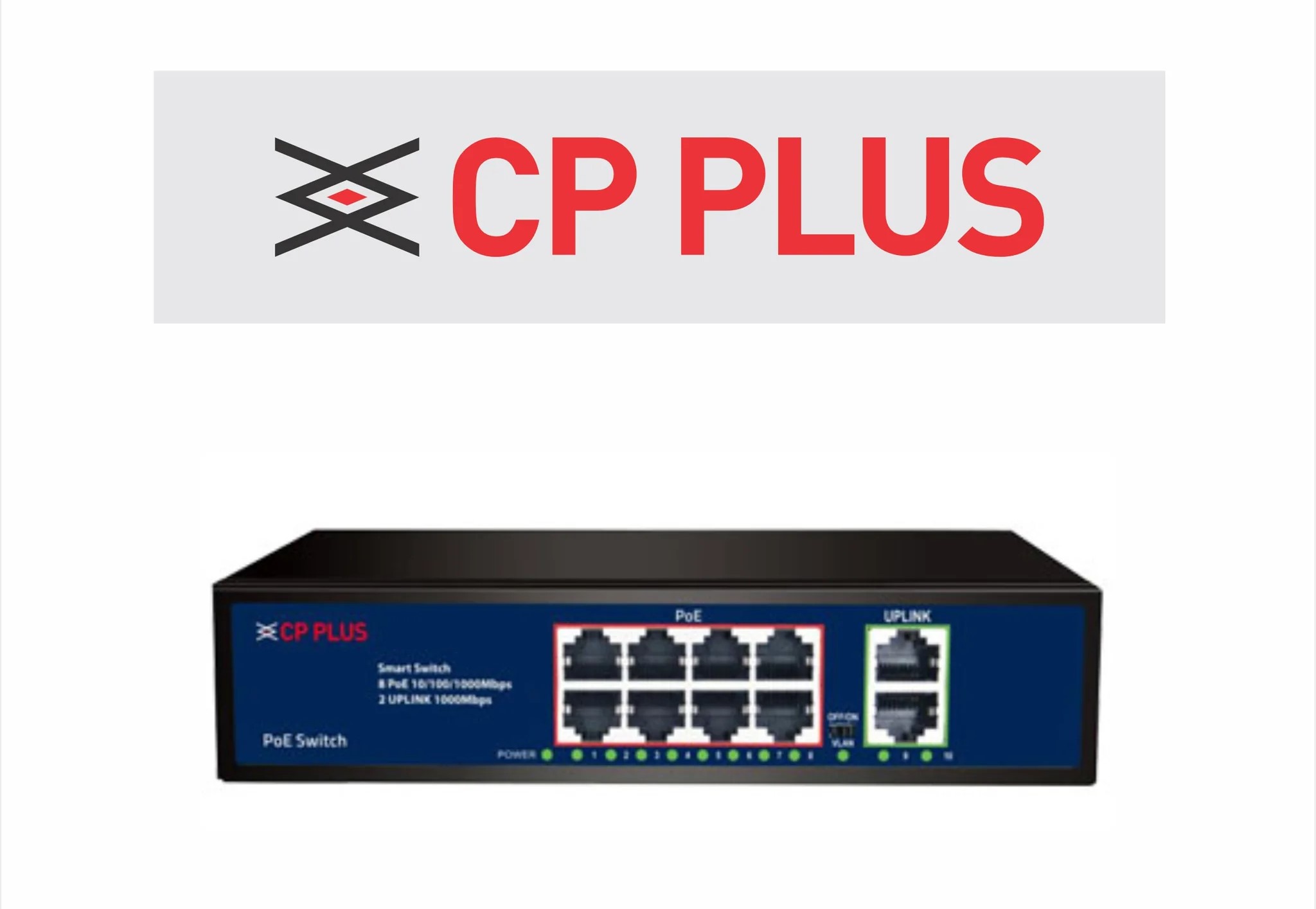

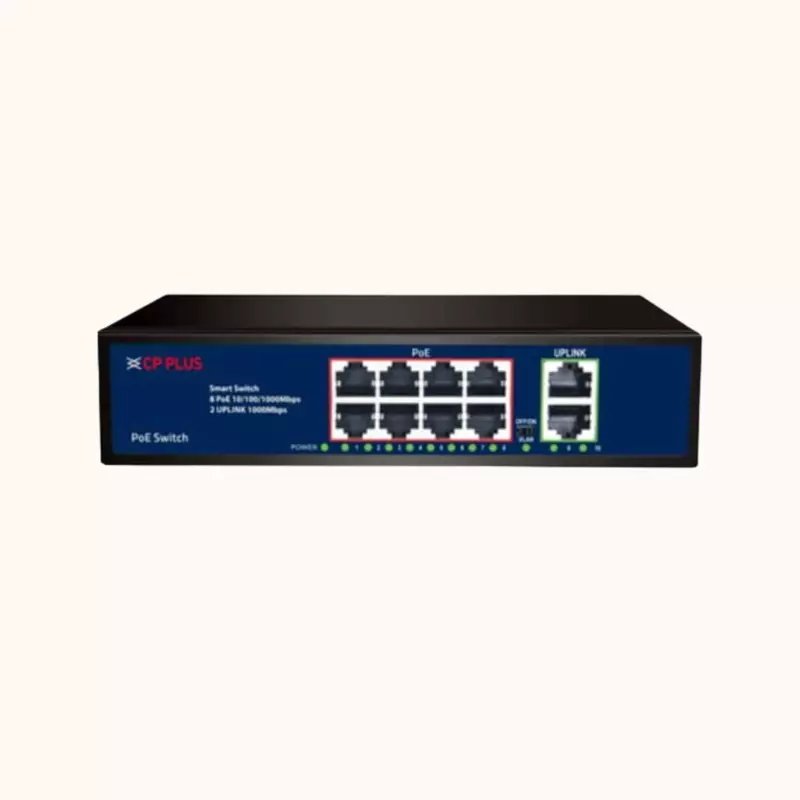

CP PLUS 8+2 Port Fast Ethernet Switch(CP-ANW-HP8H2-96 )
Specification | Details |
|---|---|
Ethernet Ports | 8 x 10/100 Mbps RJ45 Ports |
PoE Output (Single Port Max.) | Up to 30W |
PoE Standards Supported | IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x |
Uplink Ports | 2 x 10/100 Mbps |
Transmission Distance | 0–100 meters |
Specification | Details |
|---|---|
Switching Capacity | 20Gbps Full Duplex |
Uplink Ports | 2 x 1000Mbps; Transmission Distance: 0–100m |
PoE Power Budget | 96W |
PoE Ports | 8 x 1000Mbps RJ45 Ports; Max. 30W per port; Transmission Distance: 0–100m |
PoE Power Supply | Pins 1/2 (+), 3/6 (–) |
PoE Standards Supported | IEEE802.3af, IEEE802.3at |
Ethernet Ports | 10 (8 PoE + 2 Uplink) |
Transmission Distance | 0–100m @ 100 Mbps |
Packet Forwarding Rate | 1.488 Mpps/port |
MAC Address List | Supports 2K MAC addresses |
Anti-thunder Level | Common Mode: 2KV; Differential Mode: 2KV |
ESD Protection | Air Discharge: 1.5KV; Contact Discharge: 1.5KV |
Ethernet Port Indicators | Off: Link Down; Red On: Power only; Flashing: Data Transmitting |
Power Source | Built-in Power Supply; Input: 110–264V AC, 50/60Hz |
Power Consumption | <5W (excluding PoE load) |
General
- TypesUnManaged
- Switching Capacity4 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports8
- No. Of Power Supplies Supported5
- Rack MountingYes
- Keyboard / Mouse Port TypeN
- No. Of Computers Controlled8
