ASUS Prime MicroATX Case White 60mm Cooler Support, Up to 338mm Graphics Card, ATX PSU Support-AP201
The ASUS Prime AP201 is a compact yet spacious 33‑liter Micro‑ATX / Mini‑ITX small‑tower chassis, designed for a stylish clean build. It supports ATX power supplies, long graphics cards (up to ~338 mm), tall CPU coolers (up to ~170 mm), and large radiators (up to 360 mm) from the top. It has tool‑free side panels, a quasi‑filter mesh front for improved airflow, and modern I/O including USB‑C, all packed in a slender white / minimalist aesthetic.
Volume / Size
The case has a footprint of 33 liters.
External dimensions are ~ 205 × 350 × 460 mm (W × H × D).
Motherboard Support
Compatible with Micro‑ATX and Mini‑ITX motherboards.
Graphics Card Clearance

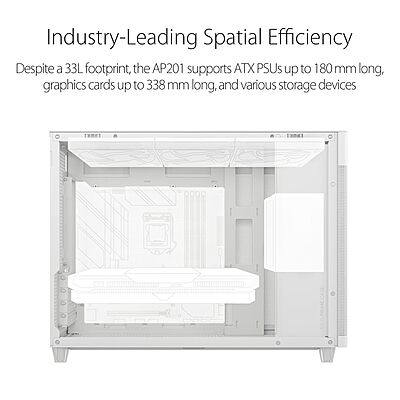

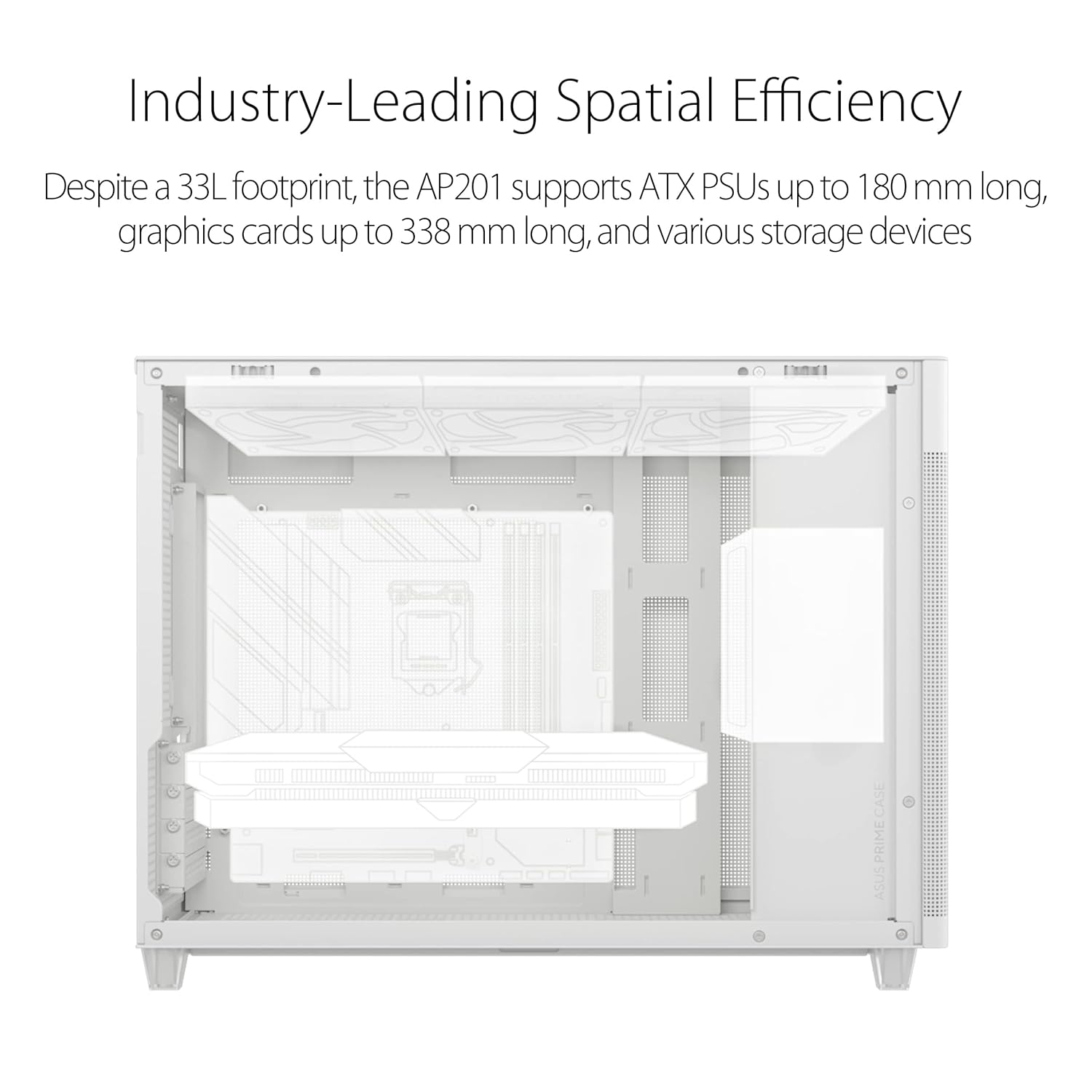

Can accommodate GPUs up to 338 mm in length.
CPU Cooler Height Limit
Maximum air cooler height is about 170 mm.
PSU (Power Supply) Compatibility
Supports standard ATX PSUs with a length up to about 180 mm.
Radiator / Liquid Cooling Support
Top supports a radiator of sizes 120 / 140 / 240 / 280 / 360 mm depending on fan/radiator configuration.
Rear supports a 120 mm radiator.
Fan Mounting / Cooling Options
Up to 6 fans supported: top (2×140 mm or 3×120 mm), rear (1×120 mm), bottom (2×120 mm) mounts.
The case comes with one 120 mm rear fan pre-installed.
Airflow / Front Panels

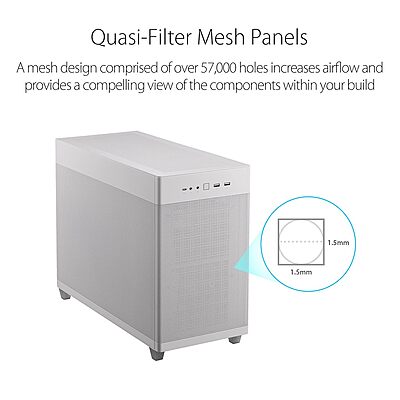

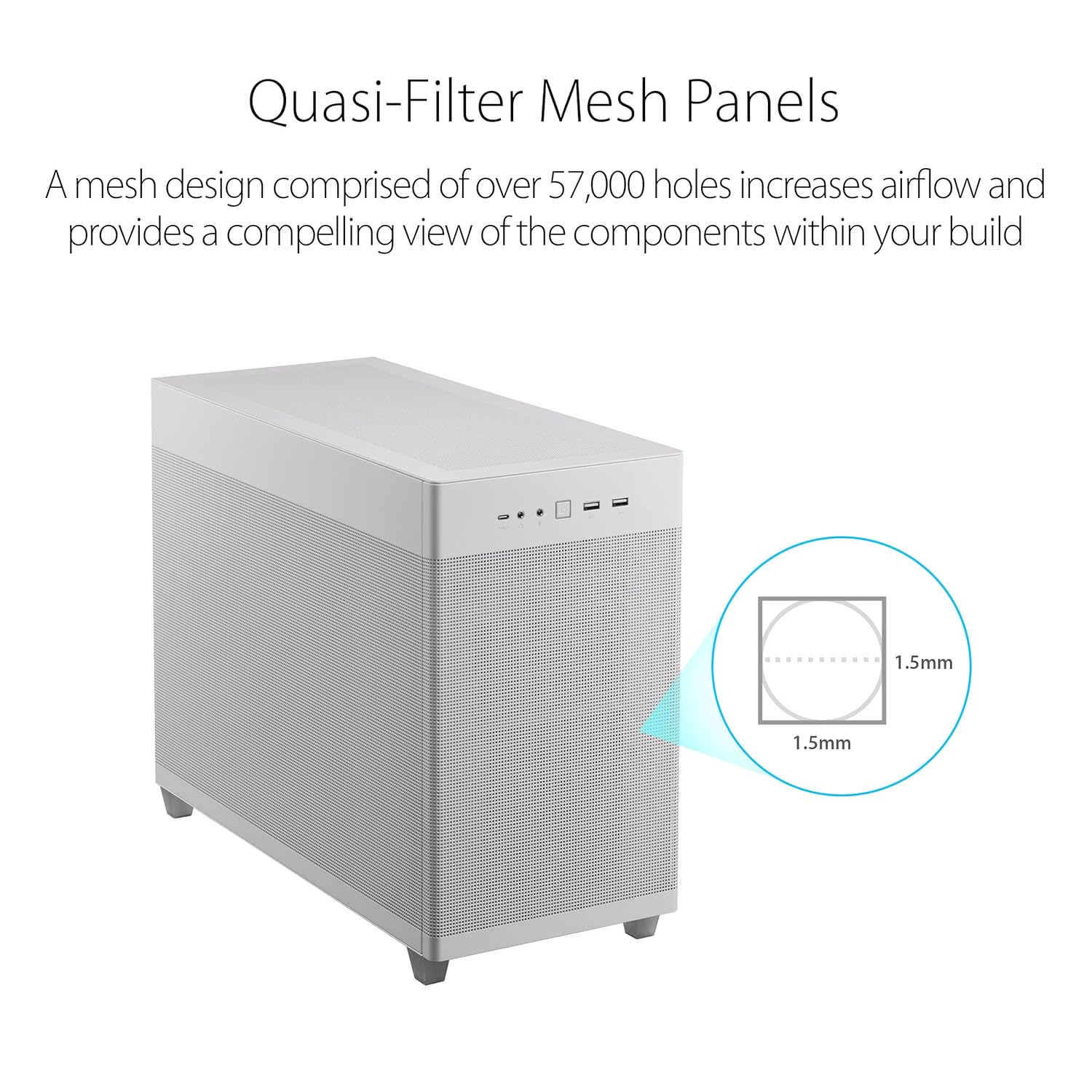

It features “quasi‑filter mesh panels” with over 57,000 precision‑machined 1.5 mm holes to improve airflow and reduce dust intake.
Bottom includes removable dust filters for the fan mounts.
Drive Bays / Storage Support
Includes 3 combo 2.5″/3.5″ drive bays.
Plus an extra 2.5″ only drive bay.
I/O / Front Panel Ports

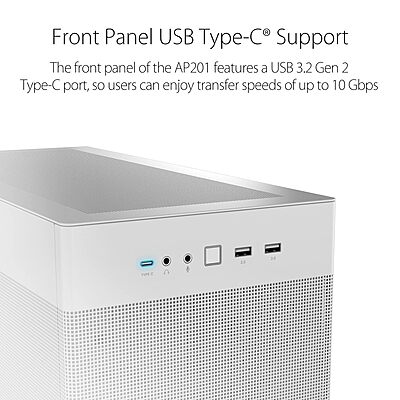

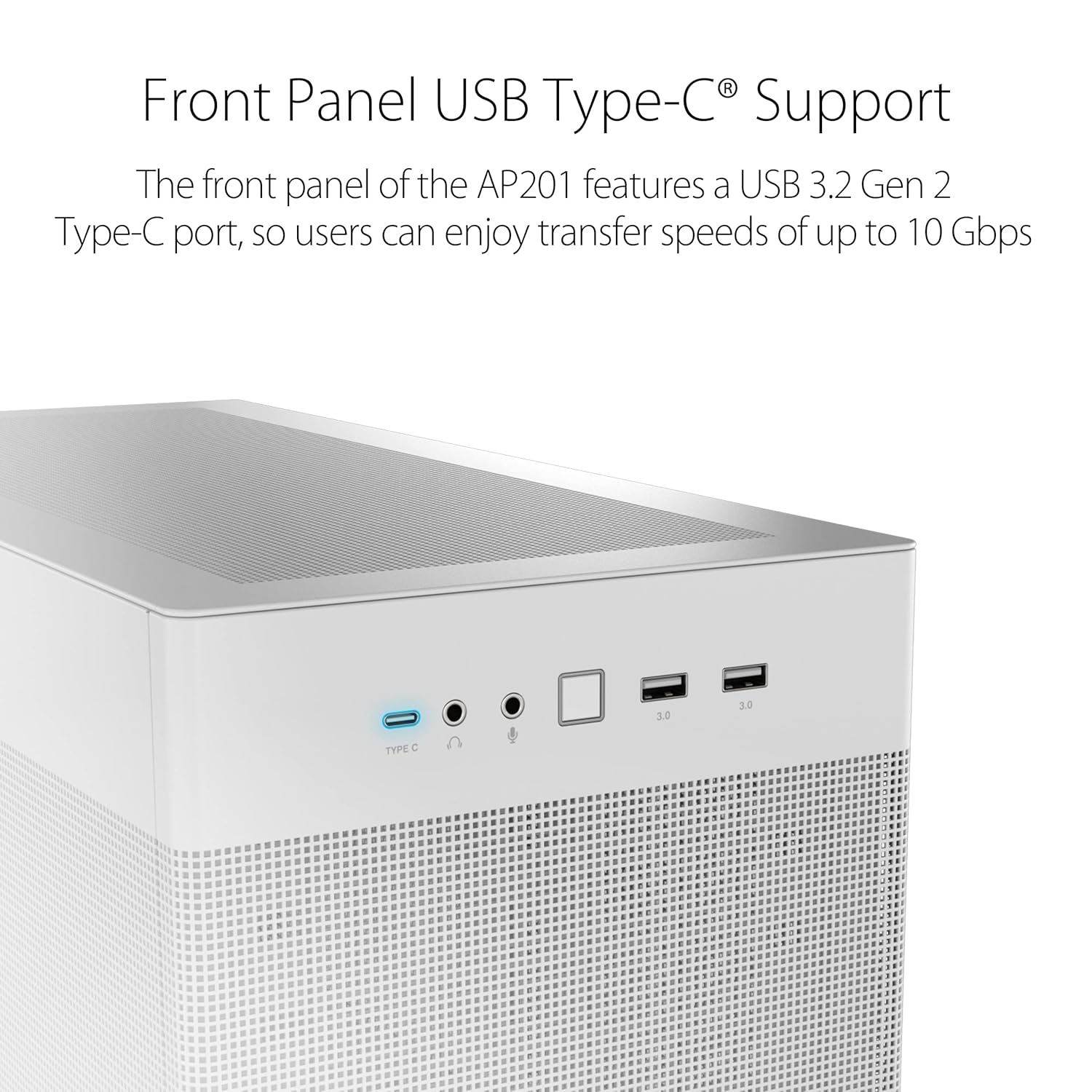

Front panel includes: 1 × USB‑C (USB 3.2 Gen 2) port, 2 × USB‑A (USB 3.2 Gen 1) ports, plus headphone and microphone jacks.
Cable Management / Build Features
There is a 32 mm cable management gap behind the motherboard tray for routing and hiding cables.
Extended motherboard tray with cut‑outs to assist cable routing.
Side Panels / Access
Tool‑free side panels — clip mechanism for easy removal without screws.
Available in versions with tempered glass side panel (TG version) or mesh/solid side depending on model.
Material / Weight
Materials include steel and plastic.
Weight is around 5.8 kg for the mesh edition; tempered glass version is slightly heavier (~6.3 kg).
Colors & Aesthetics
Available in white or black color options.
Clean, minimalist design with strong airflow aesthetics via mesh panels.
Additional Features / Considerations
USB‑C front port supports up to 10 Gbps transfer (with compatible motherboard).
No stock top or front fans included in most editions (aside from the rear fan); extra fans may be needed for top‑radiator builds.
Warranty typically is 1 year.
