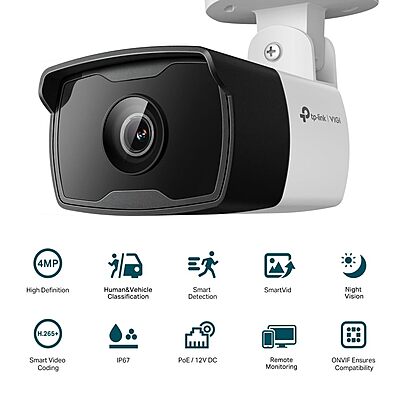

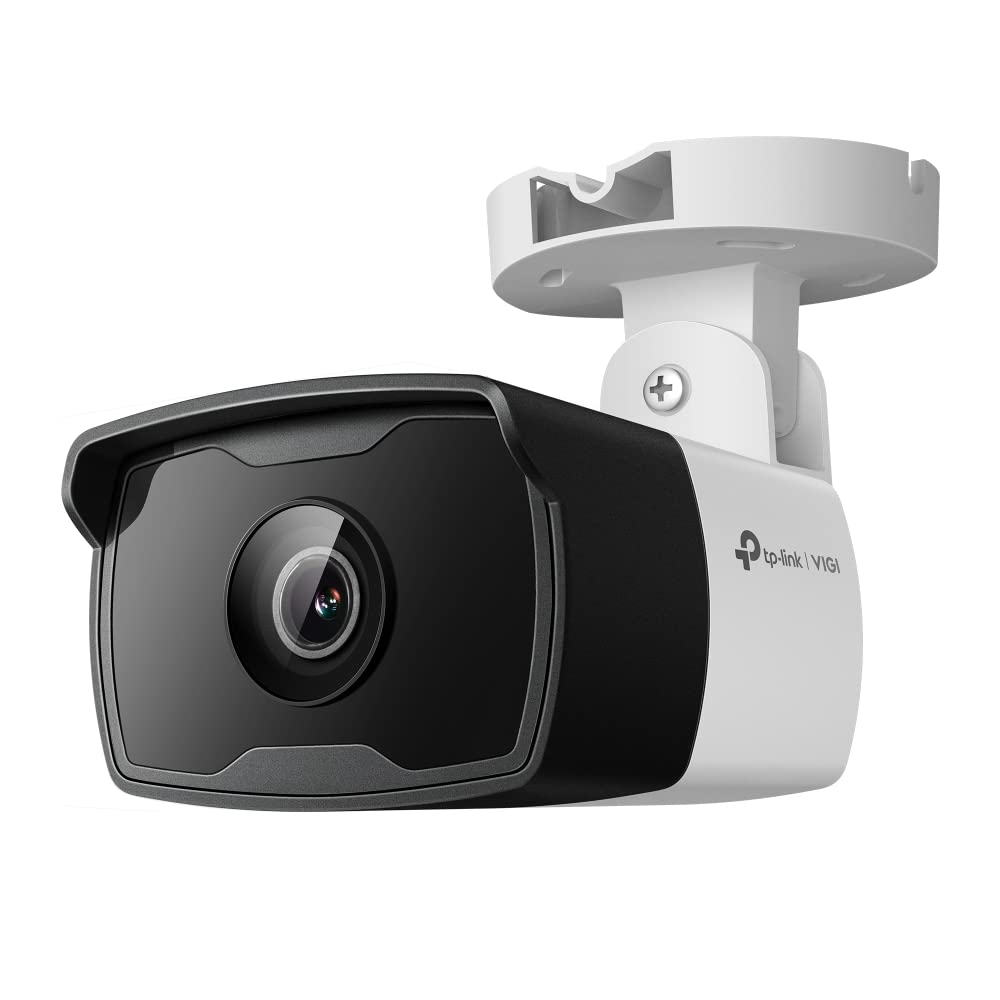

TP-Link VIGI (4mm) 4MP Outdoor IR Network Camera-C340I

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10,000 s

Slow Shutter

Yes

Aperture

2.8 mm: F2.2
4 mm: F2.0
6 mm: F2.0

Lens

2.8 mm / 4 mm / 6 mm

Lens Mount

M12

Minimum Illumination

Color: 0.1 Lux
0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Day / Night / Auto / Schedule-Switch

Digital Noise Reduction

3D DNR

WDR (Wide Dynamic Range)

DWDR

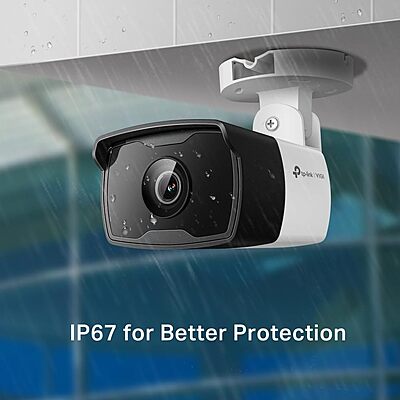

Weatherproof Rating

IP67

IR Working Distance

30 m

Viewing Angle (2.8 mm)

H: 88.8° / V: 48.9° / D: 106.5°

Viewing Angle (4 mm)

H: 75.1° / V: 41.5° / D: 88.7°

Viewing Angle (6 mm)

H: 47.7° / V: 26.5° / D: 56°

Type

Fixed Focal Lens

Focal Lengths

2.8 mm / 4 mm / 6 mm

Aperture

2.8 mm: F2.2
4 mm: F2.0
6 mm: F2.0

FOV (2.8 mm)

H: 88.8° / V: 48.9° / D: 106.5°

FOV (4 mm)

H: 75.1° / V: 41.5° / D: 88.7°

FOV (6 mm)

H: 47.7° / V: 26.5° / D: 56°

Lens Mount

M12

2.8 mm

60 m (197 ft)

25 m (82 ft)

12 m (39 ft)

6 m (20 ft)

4 mm

80 m (262 ft)

33 m (109 ft)

16 m (52 ft)

8 m (26 ft)

6 mm

120 m (394 ft)

50 m (164 ft)

24 m (79 ft)

12 m (39 ft)

Pan

-90° to 90°

Tilt

-90° to 90°

IR LED

Quantity: 2

Range

30 m

Wavelength

850 nm

White LED

N/A

Control Modes

Auto / Scheduled / Always on / Always off

Max. Resolution

2560 × 1440
