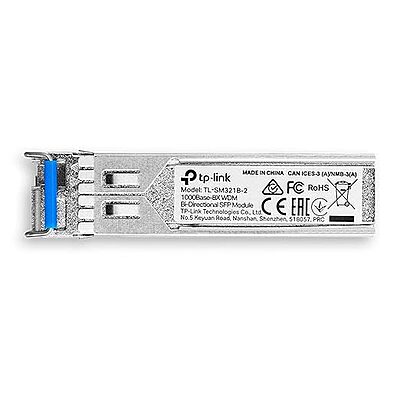

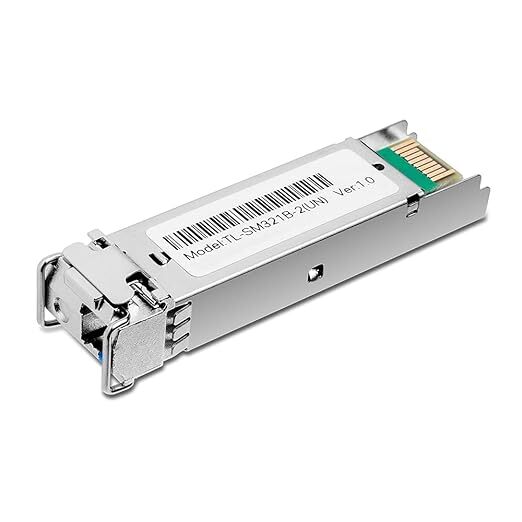

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module ,TL-SM321B
Feature | Description |
|---|---|
High-Speed Bi-Directional Communication | Supports 1000Base-BX WDM, enabling bi-directional data transmission on a single fiber. |
Long-Distance Connectivity | Extends fiber reach up to 2km for medium-range network connections in single-mode fiber setups. |
Plug-and-Play | Easy installation with no additional software or configuration required. Just plug into a compatible SFP port. |
LC Simplex Interface | Uses an LC Simplex connector, providing a compact, reliable, and industry-standard interface for fiber connections. |
SFP-MSA & DDM Support | Complies with the SFP Multi-Source Agreement (MSA) and supports Digital Diagnostic Monitoring (DDM) for real-time monitoring. |
Feature | Description |
|---|---|
Brand | TP-Link |
Manufacturer | TP-Link |
Model | TL-SM321B-2 |
Model Name | TL-SM321B-2 |
Product Dimensions | 5.54 x 1.46 x 1.29 cm |
Item Model Number | TL-SM321B-2 |
Mounting Hardware | TL-SM321B-2 |
Number of Items | 1 |
Batteries Required | No |
Item Weight | 58 g |
General
- Interface TypeSFP
- Maximum Data Transfer Rate1.25 Gbps
