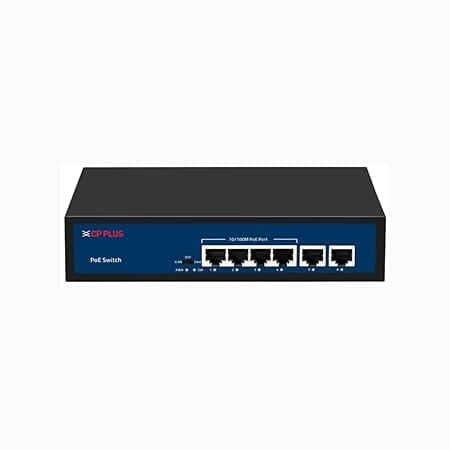

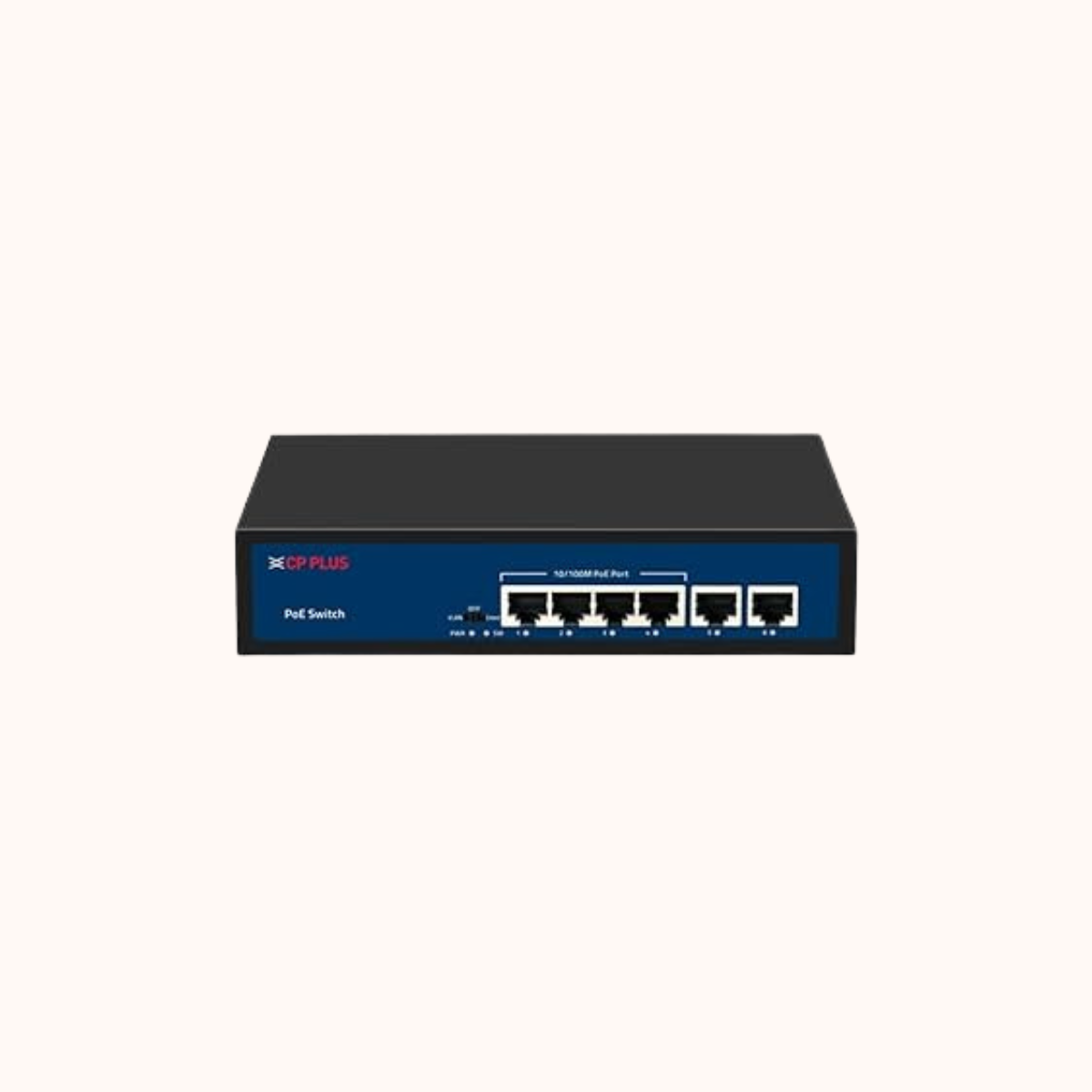

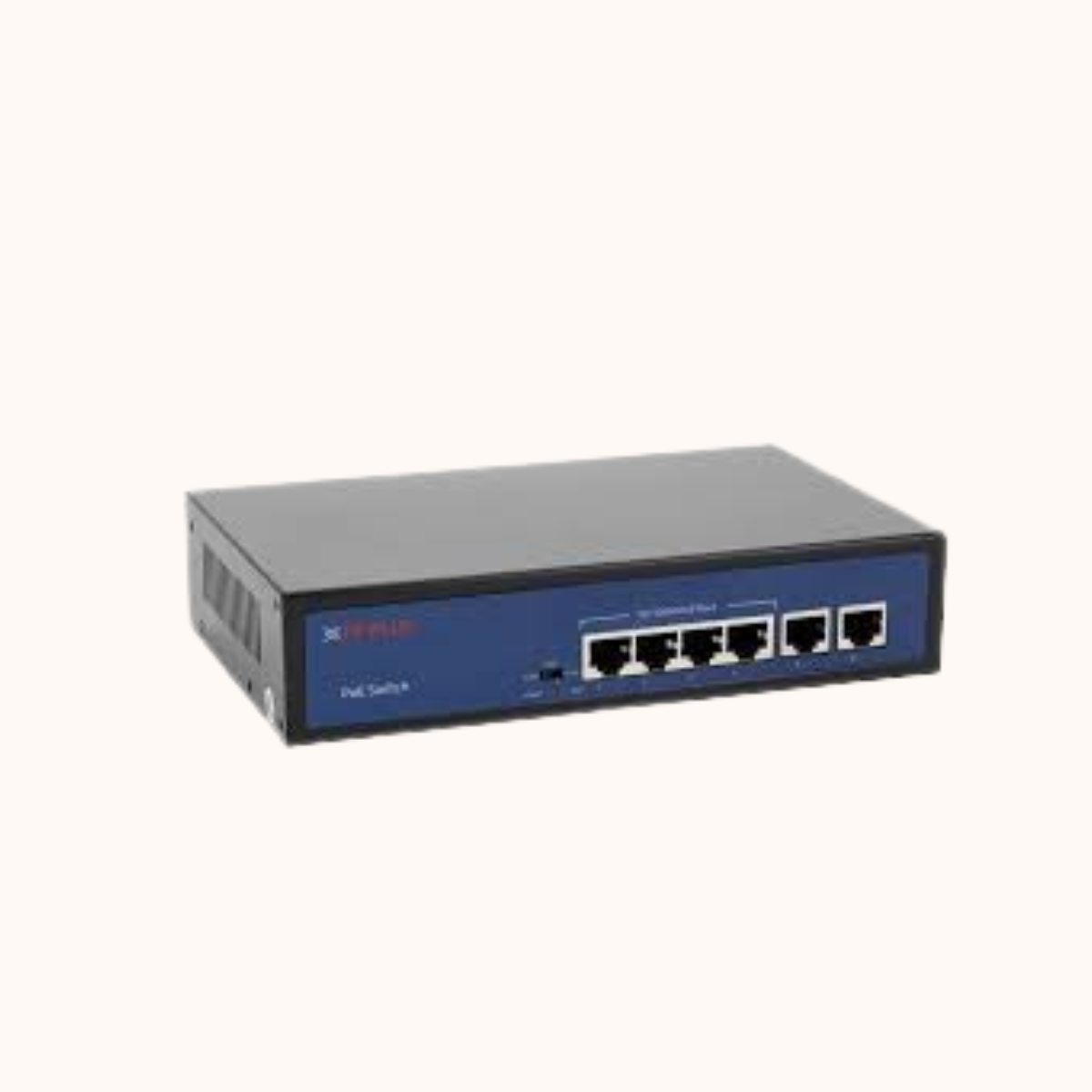

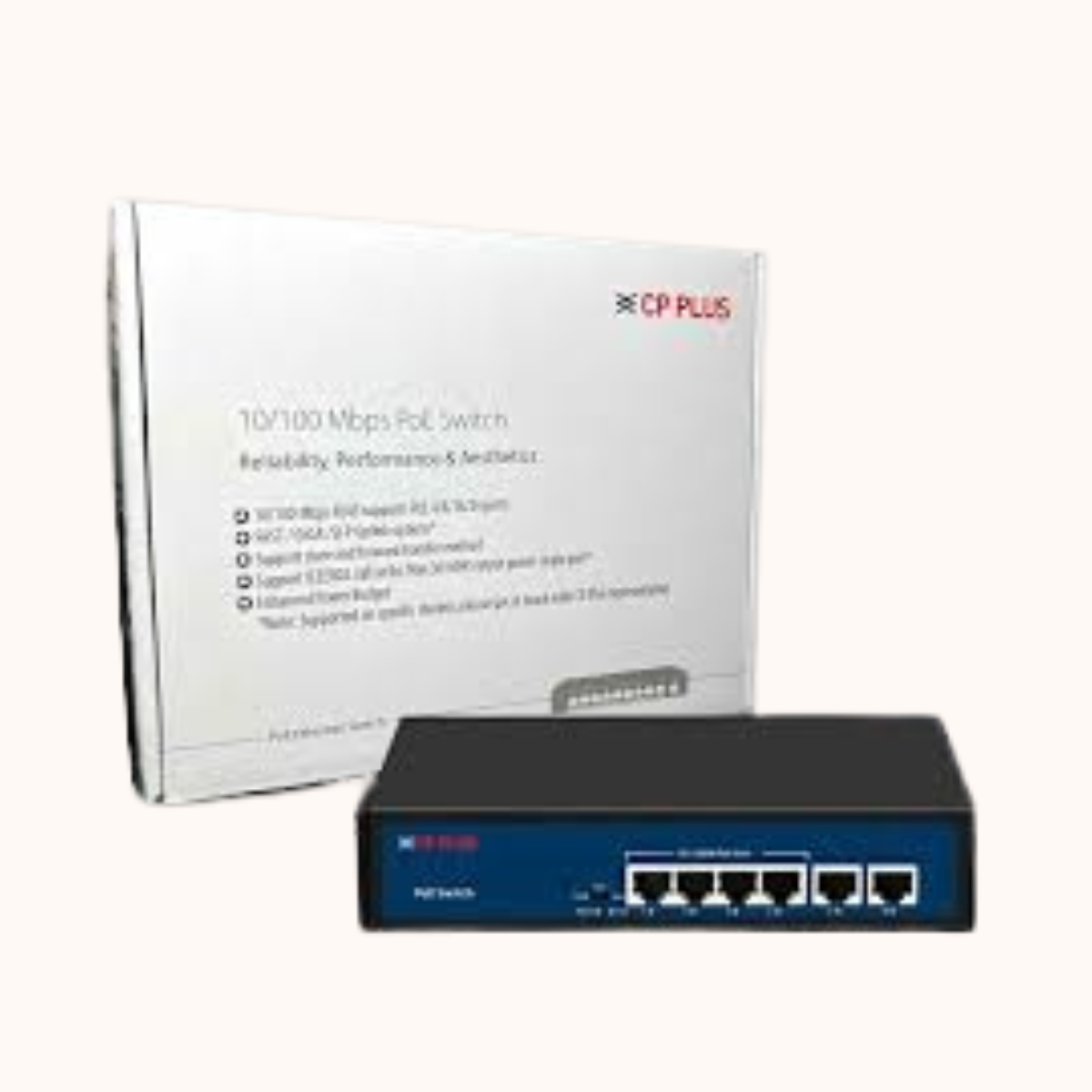

CP Plus PoE Switch-V2 100MBPS 4+2 (-DNW-HPU4H2-48)
PoE Support: Provides Power over Ethernet (PoE) on 4 ports to power devices like IP cameras and access points
100Mbps Speed: Supports fast data transfer speeds up to 100Mbps for reliable network performance
4+2 Ports: 4 PoE-enabled ports and 2 additional standard ports for flexible connectivity
Compact & Efficient: Designed for small to medium network setups, offering a cost-effective solution for powering and connecting devices
Feature | Description |
|---|---|
Model | CP Plus DNW-HPU4H2-48 |
Type | PoE (Power over Ethernet) Switch |
Ports | 4 x PoE Ports (supporting 100 Mbps speeds) 2 x Uplink Ports |
PoE Standard | IEEE 802.3af/at PoE Standard |
Power Output per Port | 15.4W per port (IEEE 802.3af) 30W per port (IEEE 802.3at) |
Switching Capacity | 1.2 Gbps |
Data Transfer Rate | 100 Mbps |
Forwarding Rate | 148,000 pps |
Power Supply | 48V DC |
Power Consumption | Typically 60W |
Cooling | Fanless Design for quieter operation |
VLAN Support | Supports VLAN (802.1Q) for network segmentation and isolating traffic |
QoS | QoS (Quality of Service) for prioritizing network traffic to ensure efficient performance for critical applications |
Link Aggregation | Supports Link Aggregation (LACP) for combining multiple physical links into one logical connection to increase bandwidth and redundancy |
Port Configuration | - Auto-negotiation for port speed and duplex settings - Auto-MDI/MDIX for automatic detection of cable type and polarity |
Security Features | - Port Security to limit the number of MAC addresses per port - 802.1X Authentication for enhanced access control and user authentication |
LED Indicators | Provides LED indicators for power, PoE, network activity, and port status |
Networking Features | - Port Mirroring for network monitoring - Spanning Tree Protocol (STP) for redundancy and loop prevention |
Design | Rackmountable and desktop installation options |
Environmental Features | - Energy-efficient design to reduce power consumption - Operating Temperature: 0°C to 40°C |
Dimensions (H x W x D) | 44 x 25 x 4.4 cm |
Weight | 1.3 kg |
Warranty | 1-Year Limited Warranty |
Applications | - IP Camera Networks - VoIP systems - WIFI Access Points - Security System Networks - Small to Medium Business (SMB) Networks |
