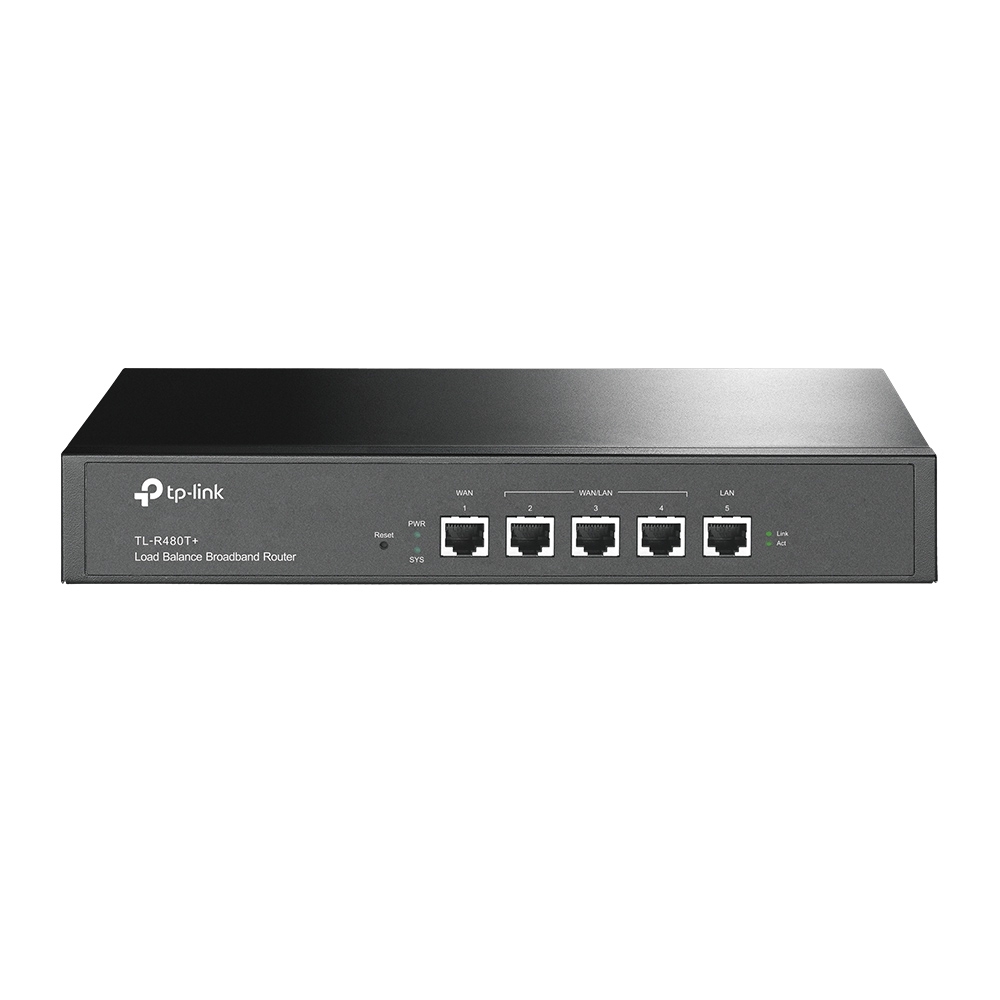

TP-LINK Load Balance Broadband Router-TL-R480T+
Brand | TP-Link |
Model Name | TL-R480T+ |
Special Feature | Up to 4 WAN ports equipped with advanced load balance to guarantee maximum bandwidth and backup capabilitiesUp to 4 WAN ports equipped with advanced load balance to guarantee maximum bandwidth and backup capabilities |
Frequency Band Class | Single-Band |
Wireless Communication Standard | 802.11ac |
Category | Main Key Points |
|---|---|
Hardware Features | Standards: IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
Interface | 1 Fixed Ethernet WAN Port, 1 Fixed Ethernet LAN Port, 3 Changeable Ethernet WAN/LAN Ports |
Network Media | 10BASE-T (Max 100m) and 100BASE-TX (Max 100m) UTP Category 3, 4, 5, 5e cables |
Power Supply | Internal Universal Power Supply (AC100-240V ~ 50/60Hz input) |
Flash | 16MB |
DRAM | 128MB |
LED | PWR, SYS, WAN, LAN, WAN/LAN |
Dimensions | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
Performance | Concurrent Sessions: 30,000 |
WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
MAC Clone | Modify WAN/LAN MAC Address |
DHCP | DHCP Server/Client, DHCP Address Reservation |
Switch Settings | Rate Control, Port Configuration, Port VLAN |
Advanced Features | Access Control (IP/MAC/URL/WEB Filtering), IGMP Proxy/Snooping, Virtual Server, Port Triggering, DMZ, Load Balance (Policy Routing, Link Backup) |
NAT | One-to-One NAT, Multi-Nets NAT |
Routing | Static Routing |
Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death |
Traffic Control | Bandwidth Control, Session Limit |
General
- Uses For ProductBusiness
- Connectivity TypeWireless
Features
- Frequency Band ClassDual-Band
- Wireless Communication Standard802.11.a
