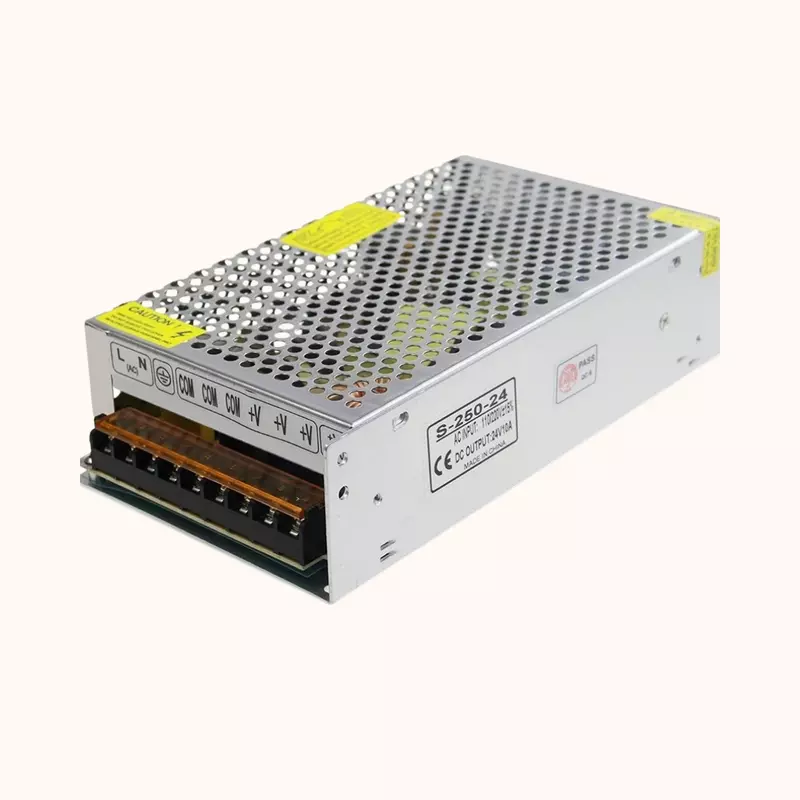

Techvision 24 V 10 AM SMPS, 4 Channels
“SMPS” stands for Switched‑Mode Power Supply. A 24 V 10 A SMPS provides a regulated 24 volt DC output, rated for up to 10 amps (so up to 240 W output), from an AC mains input. When it's called “4‑Channel”, it usually means it has four separate outputs (or “channels”) that each supply power, often used to power multiple devices like CCTV cameras, LED strips, controllers etc., from a single supply box
Specification | Typical Value / Range |
---|---|
Input Voltage | Usually ~100‑240 V AC, 50‑60 Hz (wide range) so works with domestic & industrial mains. |
Output Voltage | 24 V DC nominal. Might vary ±5% depending on load & regulation. |
Maximum Output Current | 10 A total. With 4 channels, sometimes ~2.5 A per channel if load is distributed evenly (depending on how Techvision allocates). |
Power (Max) | ~240 Watts (24V × 10A), assuming full load is used. |
Channels / Outputs | 4 separate DC outputs / channels. Sometimes with individual protection (fuse / overload) per channel. |
Regulation | Line regulation (how stable output is with change in input voltage), load regulation (stability with change in load). Usually ±1‑5 %. |
Protections | Overload protection, short‑circuit protection, over‑voltage, sometimes over‑temperature. Might use fuses or PTCs or electronic protection. |
Cooling | Either passive (vent slots) or active (small cooling fan) depending on model & load. |
Enclosure | Metal or metal‑caged (perforated or vented) for heat dissipation. Often with terminals / screw‑down output posts. Sometimes with LED indicators (power ON, fault etc.). |
Mounting | Wall mountable or installed in enclosures / boxes; sometimes designed for mounting inside cabinet / board. |
Size & Weight | Varies; for 240W units, might weigh ~0.8‑1.5 kg depending on build and cooling, physical dimensions maybe 200×100×40‑60 mm or so depending on case. |
General
- Wattage240 Watt
- ModularNo
