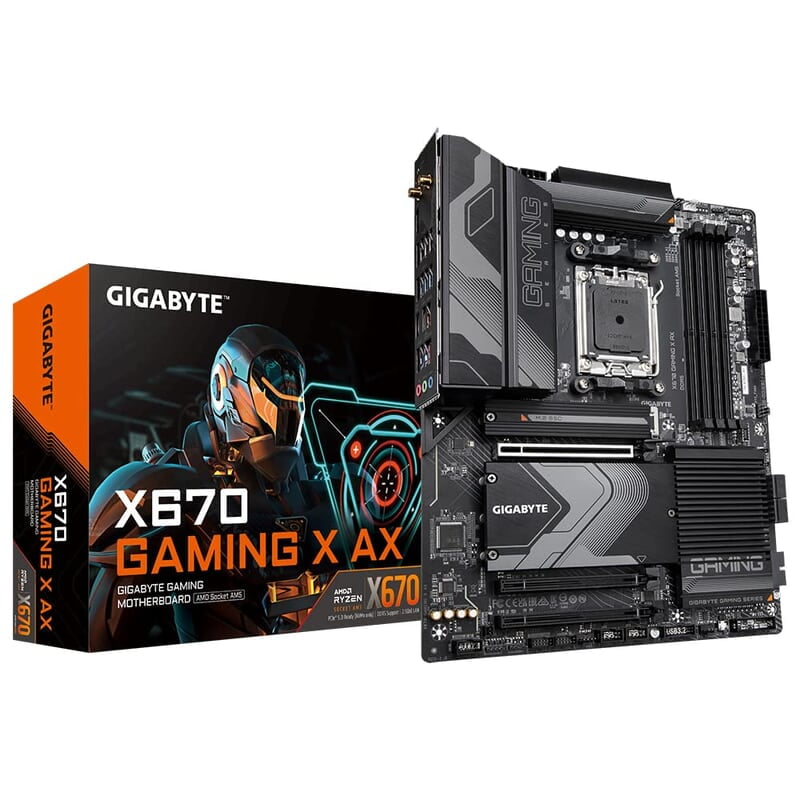

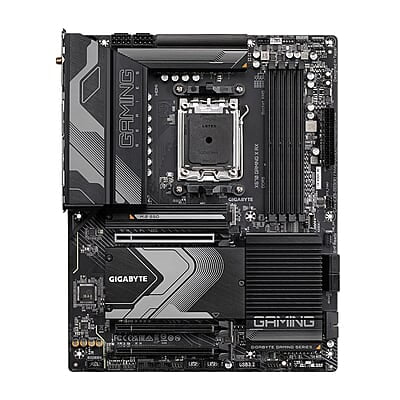

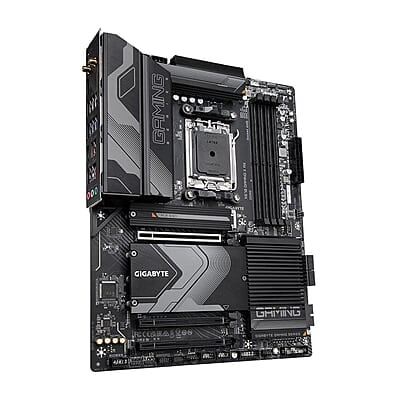

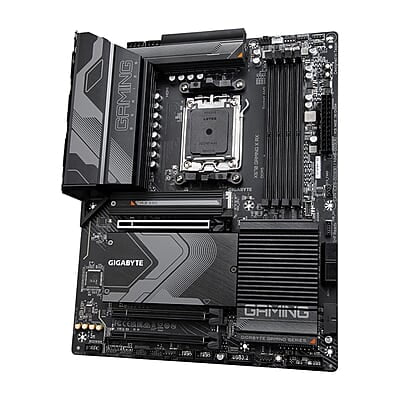

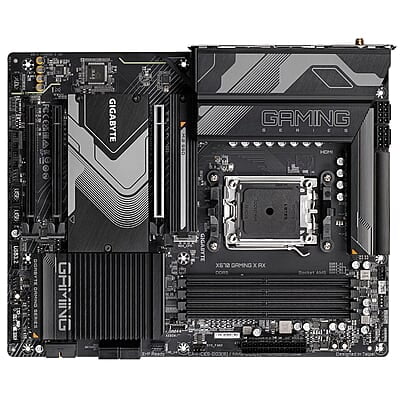

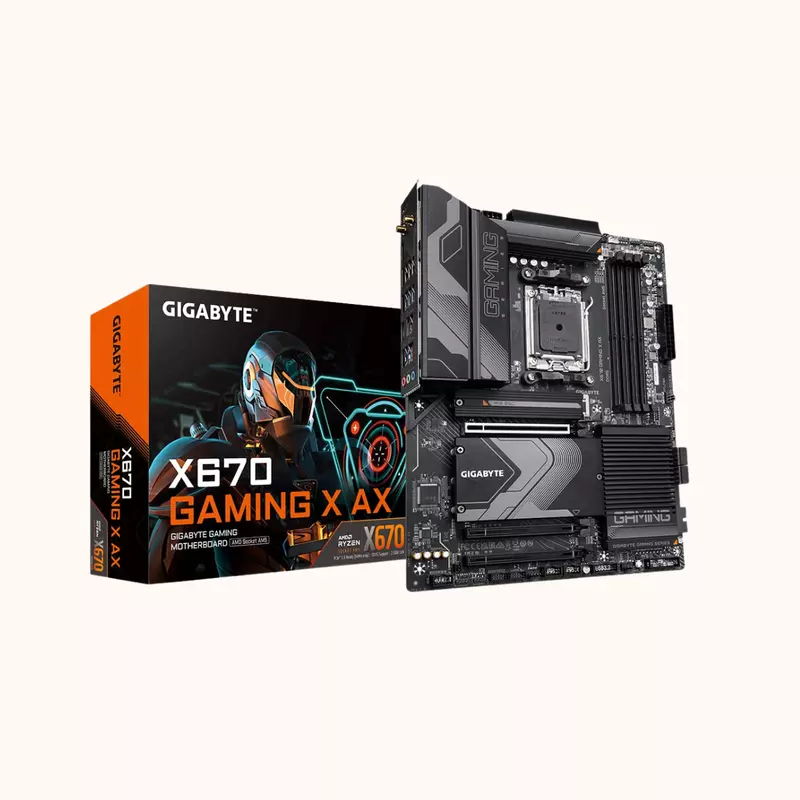

Gigabyte X670 GAMING X AX (Wifi) DDR5

Product Name

Gigabyte X670 GAMING X AX (WiFi) DDR5

Chipset

AMD X670

Socket

AM5

Form Factor

ATX

Memory Support

DDR5 (Dual Channel), Up to 128GB

Memory Speed

Supports DDR5 memory up to 6400MHz (OC)

PCIe Slots

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1

Storage Support

4 x M.2 slots (PCIe 5.0/4.0), 6 x SATA 6Gb/s ports

USB Ports

8 x USB ports (including 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0)

Wi-Fi

Intel Wi-Fi 6E AX200

Bluetooth

Bluetooth 5.2

Ethernet

1 x 10/100/1000/2500 Ethernet port (Realtek RTL8125B)

Audio

Realtek ALC897 Audio Codec, 7.1 channel audio, high-definition audio output

RGB Support

RGB Fusion 2.0, Addressable LED support, customizable lighting with compatible peripherals

Power Delivery

12+2+2 Phase Power Design, 8+4 pin power connectors

VRM Cooling

Advanced thermal design with heatsinks for VRMs to ensure optimal cooling and stable performance

BIOS Support

Q-Flash Plus (BIOS recovery without CPU, memory, or GPU installed)

Display Outputs

1 x HDMI 2.1

Dimensions

30.5 x 24.4 cm

OS Support

Windows 10/11 64-bit

Special Features

Supports AMD Ryzen 7000 Series CPUs, PCIe 5.0, Thunderbolt 4 (via add-on card), Dual BIOS

Expansion Slots

3 x PCIe 4.0 x1, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16

Price Range

Mid to high-end gaming and professional use

Target Audience

Gamers, content creators, PC enthusiasts
