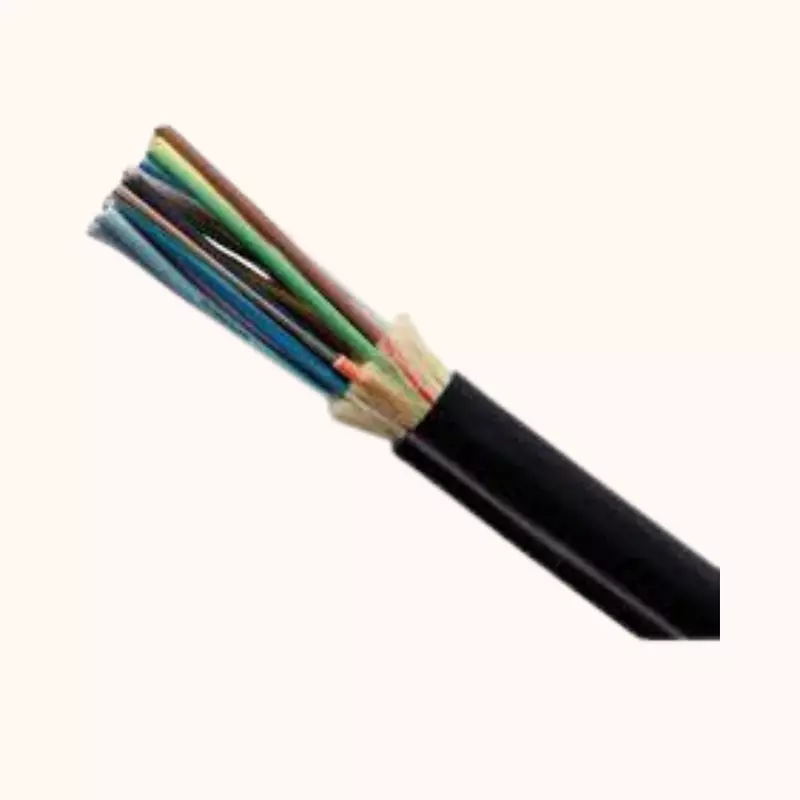

D-Link 6 Core SM OS2 Fiber Cable (NCB-FS100-AUHD-06)
Rs. 61.00 Rs. 134.00
Out of stock
Tags:
- Type: 6 Core Single Mode (SM) OS2 Fiber Cable
- Model: D-Link NCB-FS100-AUHD-06
- Design: Armoured construction for durability and protection in outdoor environments
- Application: Suitable for high-speed, long-distance fiber optic communication
- Performance: Optimized for low signal attenuation, supporting high-performance data transmission
- Core Configuration: 6 fibers for reliable and scalable connectivity
Product Details
| Feature | Details |
|---|---|
| Brand | D-Link |
| Model | NCB-FS100-AUHD-06 |
| Product Type | 6 Core Single Mode Fiber Optic Cable |
| Core Count | 6 Fiber Cores |
| Fiber Type | Single Mode (SM) |
| Application Standard | OS2 (Optical Fiber for Long Distance) |
| Cable Construction | Outdoor, Armoured |
| Strength Member | Central strength member with steel wire reinforcement |
| Sheath Type | Double Sheath for enhanced durability |
| Sheath Material | UV-protected, weather-resistant High-Density Polyethylene (HDPE) |
| Armour Type | Armoured with Corrugated Steel Tape for added mechanical protection |
| Water Blocking | Jelly-filled design for superior water resistance |
| Cable Diameter | Approximately 6.0 mm to 7.0 mm (typical for armoured fiber optic cables) |
| Operating Temperature Range | -40°C to +70°C, suitable for harsh outdoor environmental conditions |
| Tensile Strength | High tensile strength for installation and operational integrity |
| Crush Resistance | Designed to resist crushing, especially in high-traffic areas |
| Bending Radius | Minimum bending radius: Typically 20 times the outer diameter during dynamic conditions and 10 times for static conditions |
| Optical Characteristics | Low attenuation and high-performance transmission over long distances |
| Transmission Distance | Capable of supporting long-distance data transmission (10 kilometers or more), ideal for backbone and core network applications |
| Cable Color | Black (outer sheath) |
| Marking and Identification | Sequential length markings along the outer sheath for easy tracking and installation |
| Standards Compliance | Complies with ITU-T G.652.D and other relevant international standards |
| Applications | - Ideal for outdoor direct burial, aerial, or duct installations - Suitable for use in telecommunication networks, data centers, and enterprise networks |
| Packaging | Typically shipped on a reel or drum for easy handling and installation |
| Safety Features | Flame retardant and UV-resistant for long-lasting outdoor use |
| Weight | Weight varies based on length and packaging, typically ranging in the hundreds of kilograms per kilometer |
| Port Compatibility | Compatible with a wide range of single-mode fiber optic connectors such as SC, LC, ST, and FC |
| Installation | Suitable for splicing and termination using standard fiber optic tools |
| Warranty and Support | Typically comes with manufacturer warranty and customer support (specific terms may vary by distributor) |
