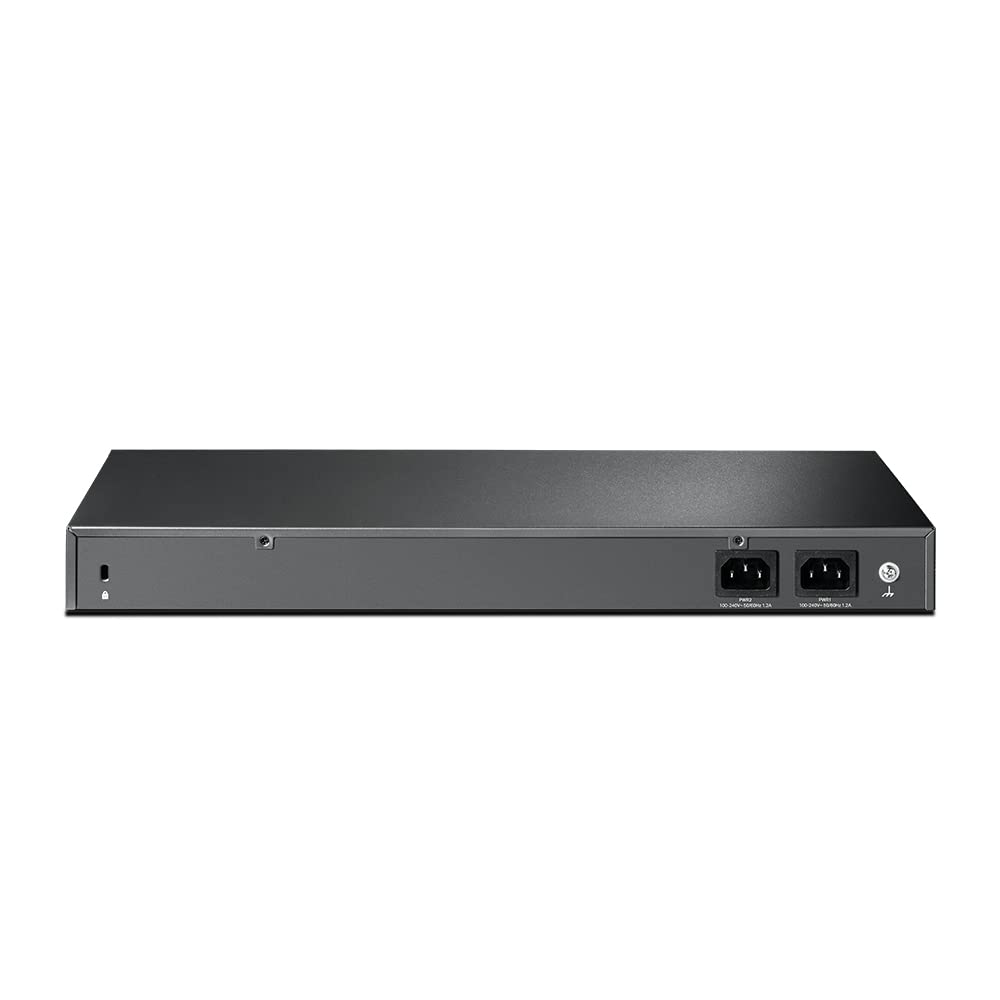

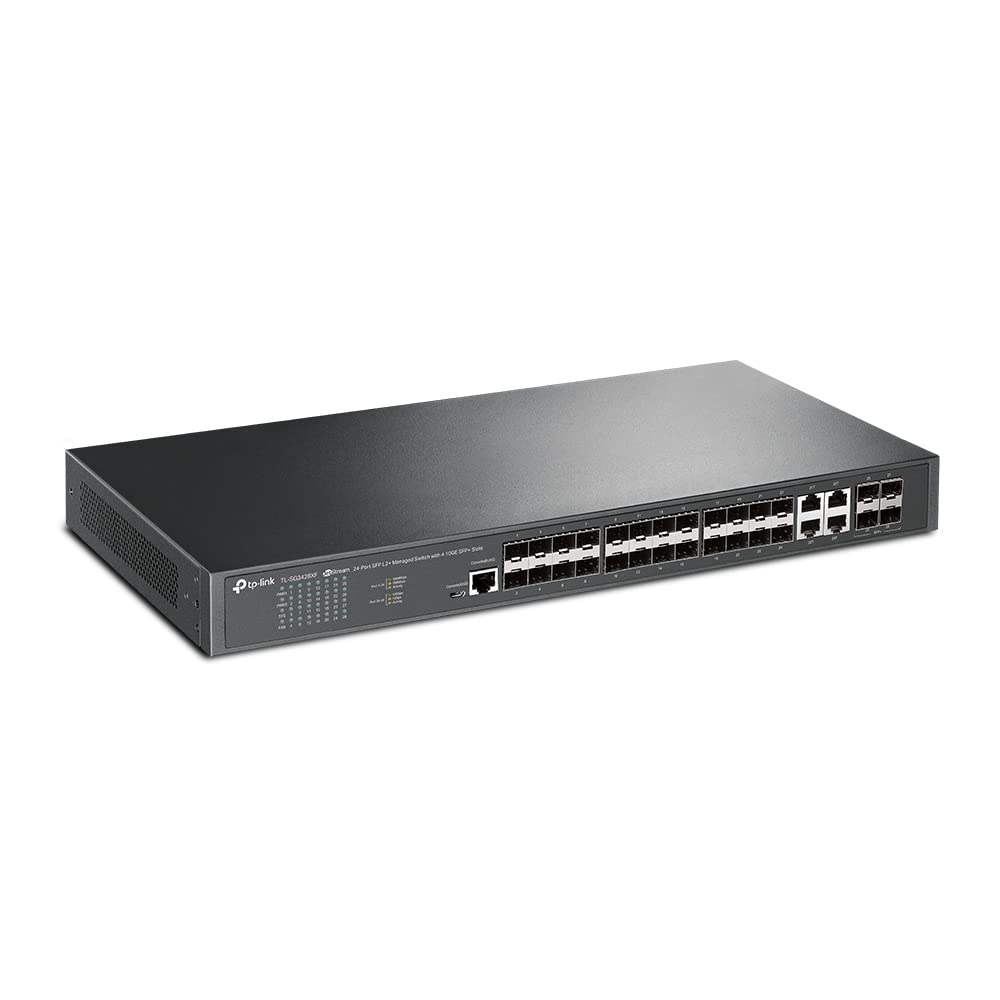

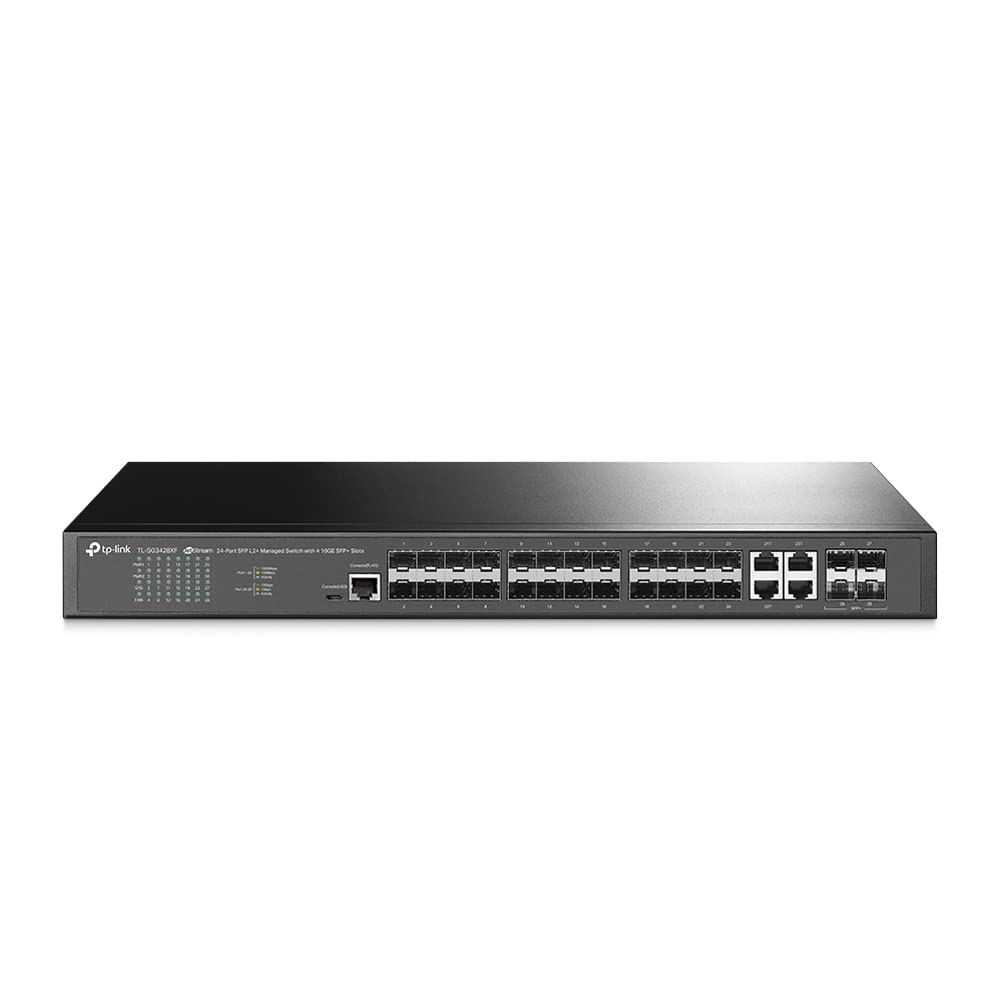

TP-Link | 24 Port SFP Enterprise Level Switch | L2+ Smart Managed (TL-SG3428XF)
24 SFP Ports: Provides 24 SFP ports for high-speed fiber optic connections
L2+ Smart Managed: Advanced Layer 2+ management features for efficient network control and optimization
Enterprise-Level Performance: Designed for high-demand networks, offering reliable and scalable connectivity
Advanced Security: Includes security features like VLAN, access control, and QoS for optimized network performance
Feature | Description |
|---|---|
Model | TP-Link TL-SG3428XF |
Type | 24-Port SFP L2+ Smart Managed Switch |
Ports | 24 x Gigabit SFP Ports |
Additional Ports | 4 x Gigabit Ethernet Ports (Combo Ports) |
Switching Capacity | 56 Gbps |
Forwarding Rate | 41.66 Mpps |
Layer | Layer 2+ Smart Managed Switch |
Management | Web-based interface, SNMP, CLI, Telnet, and RMON for comprehensive management and monitoring capabilities |
PoE Support | No PoE (Power over Ethernet) Support |
VLAN Support | Supports VLANs (IEEE 802.1Q) for network segmentation and traffic isolation |
QoS | 4 priority queues and QoS (Quality of Service) for traffic prioritization, ensuring smooth performance for voice, video, and other time-sensitive applications |
Link Aggregation | Supports IEEE 802.3ad Link Aggregation (LACP) for combining multiple links into one to increase bandwidth and redundancy |
Security Features | - Access Control Lists (ACLs) for restricting unauthorized users - Port Security for MAC address-based security - DHCP Snooping and IP-MAC Binding |
Redundancy | Spanning Tree Protocol (STP) for network loop prevention and redundant paths |
Jumbo Frame Support | Supports Jumbo Frames (up to 10 KB) for improved network performance when transferring large packets |
MAC Address Table | 16K MAC address entries |
Environmental Features | - Fanless Design for quiet operation - Energy-efficient design to save power without compromising performance |
Rackmountable | Yes, designed to be rackmountable for convenient and space-saving installation |
Port Configuration | - Port Mirroring for network monitoring - Auto Negotiation for port speed and duplex settings - Auto-MDI/MDIX for automatic cable type detection and configuration |
Power Supply | 100-240V AC, 50/60Hz, internal power supply |
Dimensions (H x W x D) | 44 x 44 x 4.4 cm |
Weight | 4.75 kg |
Temperature | Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C |
Warranty | Limited Lifetime Warranty |
Applications | - Enterprise Networks - Small and Medium Business (SMB) networks - Data Center - VoIP, IPTV, and Multimedia Applications - Fiber Optic Networking |
